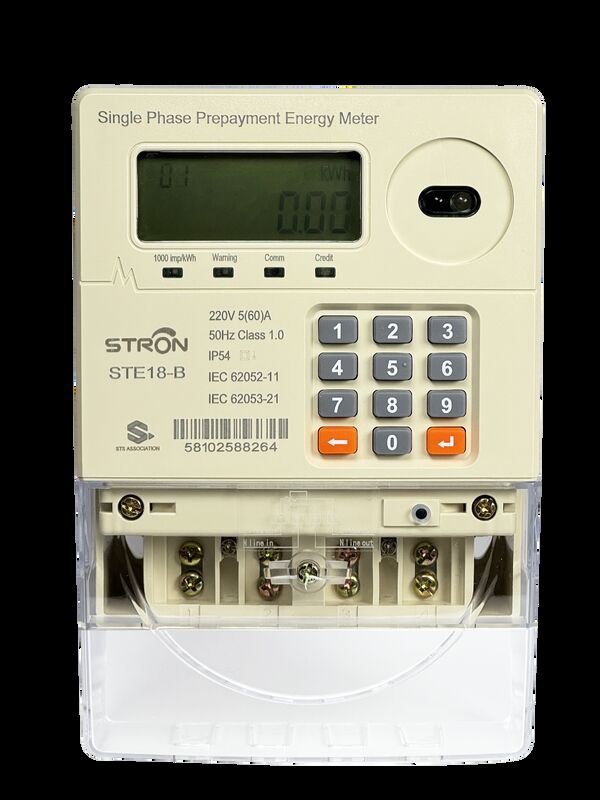

Name: STE18-B Split Prepaid Single Phase Electricity Meter With CIU User Interface, IP54 Waterproof Dustproof, STS Certified, Support TOU Tariff, LoRa-RF & PLC Communication Optional
Brand: Hunan Stron Smart Co., Ltd
SKU: STE18-B
Price: 15 USD
Availability: InStock

Home > Products > Smart Prepaid Electricity Meter >

STE18-B Split Prepaid Single Phase Electricity Meter With CIU User Interface, IP54 Waterproof Dustproof, STS Certified, Support TOU Tariff, LoRa-RF & PLC Communication Optional

Split prepaid electricity meter with CIU

STS certified single phase electricity meter

IP54 waterproof smart prepaid meter

Place of Origin:

China,Zhuzhou

Brand Name:

stron

Certification:

ISO 9001 ; ISO 14001 ; STS Certificated

Model Number:

STE18-B

Request A Quote

Product Details

Terminal Cover:

Transparent

Power Supply:

Single Phase

Input Way:

Keypad

Basiccurrent:

Ingress Protection:

IP54 Waterproof

Vending Software:

Yes

Warranty Period:

2 Years

Material:

Plastic

Accuracyclass:

Class 1

Operating Temperature Range:

-10°C To 50°C

Voltage Rating:

220-240V

Active Energy Constant:

4000imp/kWh

Frequency:

50/60Hz

Power Source:

Electricity

Operation Temperature:

-25℃-70℃

Highlight:

Split prepaid electricity meter with CIU

STS certified single phase electricity meter

IP54 waterproof smart prepaid meter

Payment & Shipping Terms

Minimum Order Quantity

Price

USD 15

Packaging Details

Packed in export cartons (20pcs/ctn). Customizable, with full container load data for standard shipping.

Delivery Time

7 work days

Payment Terms

T/T

Supply Ability

99999

Smart Prepaid Electricity Meter Designed for Links Over Long Distances with Industry Leading Sensitivity of Minus 121dBm

Get Best Price

Smart Prepaid Electricity Meter Offering High Accuracy Measurement and Operation Under Various Environmental Conditions

Get Best Price

Smart Prepaid Electricity Meter featuring durable construction and performance for long term deployment in diverse settings

Get Best Price

Smart Prepaid Electricity Meter Featuring Secure Encryption and Robust Anti Tamper Mechanisms for Utility Energy Control

Get Best Price

86-0731-22421066

Contact Now

Product Description

①LED indicators:

“1000imp/kWh”: Pulse light, when the meter works normally after being

connected to the load, it shows blue light, and every 1000 flashes is 1 kWh.

“Warning”: Alarming light, when the meter in the tamper state or the

balance is zero, it shows yellow light.

“Comm”: Signal light, it’s turned on when communicate with CIU or DCU

successfully.

“Credit”: When the credit balance is sufficient, it shows green light; when

the balance is 0, it shows red light.

②Tamper Switch: Tamper protection function. When the cover is opened , the

meter is in the tamper state,it shows yellow light.

③Meter ID Number: It’s a ID to distinguish meters.

④Keypads:Checking data from meter by pressing the button, and inputting

the tokens(Recharge, Clear Credit and Clear Tamper Token).

Functions

1Remote Communication:

·The single phase energy meter is STS standard smart meter, which requires

users input a 20-digit Token to top up electricity, clear credit, and clear tamper.

·The single phase energy meter supports RF wireless communication, using

CIU for meter reading, the distance is about 350m; using DCU for batch meter

reading, the distance can reach 1000m.

·The tokens could be sent into meter by CIU remotely, the Admin also could

2 Anti-Tamper:

When the transparent protective cover is opened, the tamper switch is

triggered, the valve will be closed and the "Warning" indicator will show yellow

light, This function plays the role of power theft protection.

3 Parameter settings:

There is an infrared interface on the meter, Admin could use this setting special

parameters for the meter.

4 Credit Alarming:

The "Warning" indicator flashes red light when the meter credit reaches the

threshold, the "Warning" indicator shows yellow light and the“Credit”shows

red light when the credit is zero.

①LED indicators:

“Credit”: When the credit balance is sufficient, it shows green light; when

the balance is 0, it shows red light.

“Alarm”: Warning light, when the meter in the tamper state or the balance

is zero, it shows yellow light.

“Comm”: Signal light, it’s turned on when communicate with CIU or DCU

successfully

②Meter Number: It’s a ID of CIU, same with the matched meter.

③Keypads:Checking data from meter with short codes by pressing the

button , and inputting the tokens(Recharge, Clear Credit and Clear Tamper

Token).

Functions

①Remote Communication

-The single phase energy meter supports RF wireless communication, using

CIU for meter reading, the distance is about 400m.

-The tokens could be sent into meter by CIU remotely to recharge, clear

tamper and clear credit.

②Power Supply

-4pcs AA battery/USB data cable.
