Name: STS Prepaid Smart Electricity Meter Single Phase Dual Source with RF Communication for Grid and Generator
Brand: Hunan Stron Smart Co., Ltd
SKU: STE18
Price: 15.00 USD
Availability: InStock

Home > Products > Smart Prepaid Electricity Meter >

STS Prepaid Smart Electricity Meter Single Phase Dual Source with RF Communication for Grid and Generator

Single Phase STS Prepaid Electricity Meter

Dual Source Smart Prepaid Electricity Meter

RF Communication Dual Source Electricity Meter

Place of Origin:

Hunan, China

Brand Name:

Stron

Certification:

STS

Model Number:

STE18

Request A Quote

STS Prepaid Smart Electricity Meter Single Phase Dual Source with RF Communication for Grid and Generator

Product Details

Nominal Voltage:

220V/230V

Working Voltage Range:

30%~120%Un

Nominal Frequency:

50-60Hz

Current:

5(60)A

Active Energy Constant:

1000imp/kWh

Accuracy Class:

Class 1.0(Active Energy)

Standard:

IEC 62052-11/IEC62053-21

IP Rating:

IP54

Operation Temperature Range:

25℃-70℃

Communication:

433Hz RF

Power Supply:

Grid Power/generator

Highlight:

Single Phase STS Prepaid Electricity Meter

Dual Source Smart Prepaid Electricity Meter

RF Communication Dual Source Electricity Meter

Payment & Shipping Terms

Minimum Order Quantity

Price

USD 16-USD 14 Per pc

Packaging Details

Cartons

Delivery Time

15-25days

Payment Terms

L/C,T/T,Western Union,Paypal,Alipay

Supply Ability

100,000 pcs per month

Prepaid Token Type Smart Prepaid Electricity Meter Featuring Unlimited Capacity Alongside Stronpay Vending Software for Energy Usage

Get Best Price

Nominal Frequency 50-60HZ Electric Meter Test Equipment Single Phase Accurate Measurement and Performance for Industrial Applications

Get Best Price

Prepaid Token Type Smart Prepaid Electricity Meter Integrated with Unlimited Capacity and Stronpay Vending Software Supporting Energy

Get Best Price

Keypad Input Way Electric Meter Testing Equipment Designed with IP54 Ingress Protection Ensuring and Precise Meter Evaluation

Get Best Price

Contact Now

Product Description

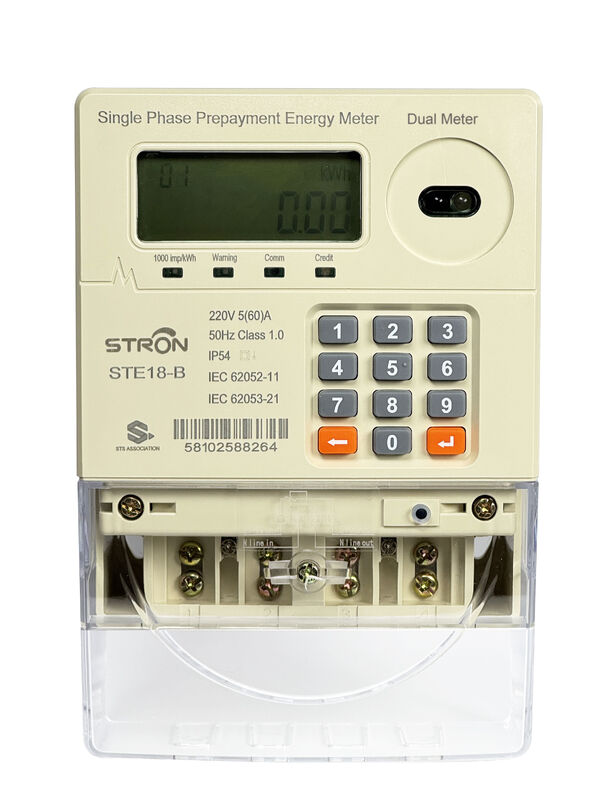

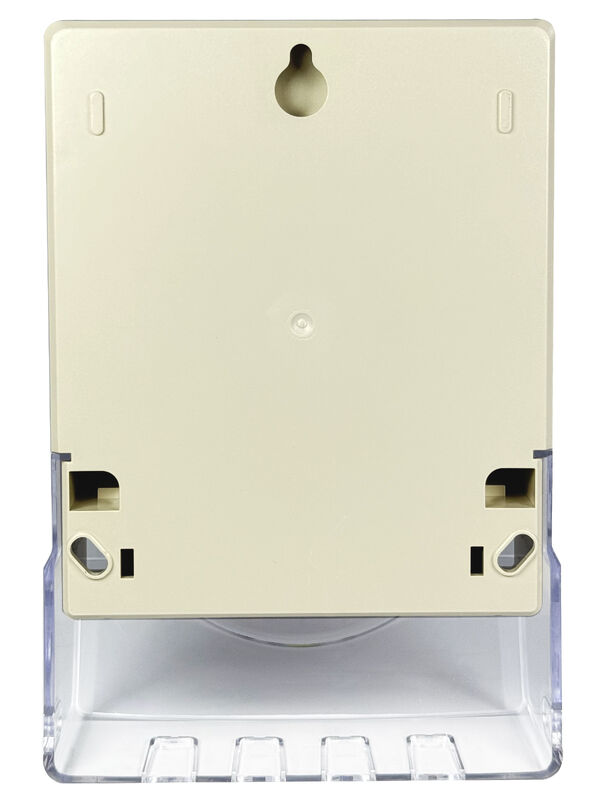

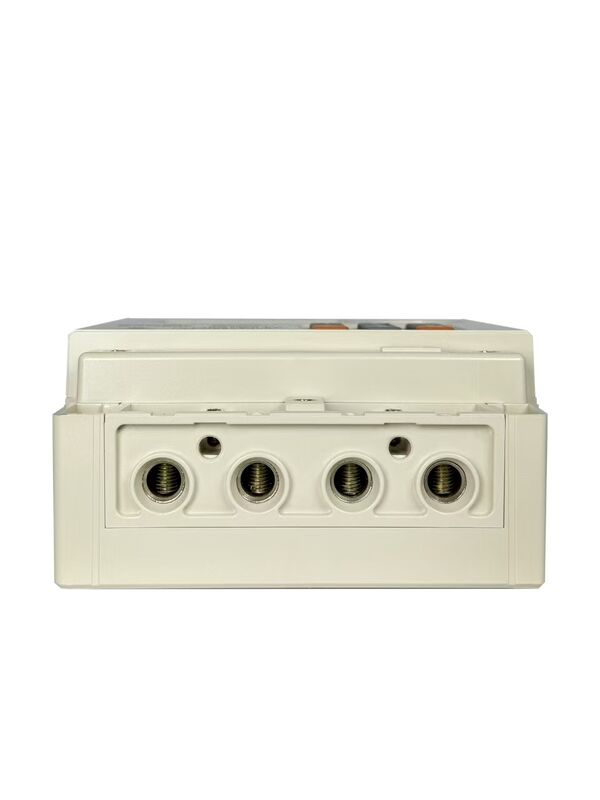

STS Prepaid Single Phase Dual Source Electricity Meter

A Single-phase Dual-source Meter is a specialized energy metering device designed to measure and monitor electrical energy consumption from two independent power sources in single-phase systems. These sources typically include the main utility grid and an auxiliary power supply such as a generator or solar inverter.

Key Features & Specifications

STS Standard Prepayment

Secure 20-digit numeric token input system
Eliminates billing delays and revenue losses
Compatible with all major STS vending systems

Split Meter Design (Meter + CIU)

CIU installed inside the consumer's home for easy access
Energy meter installed outside for anti-tamper protection
Users can check balance and enter tokens without accessing outdoor meter
Enhanced safety, convenience, and regulatory compliance

RF Communication Technology (Optional)

Long-range and stable RF communication between DCU and meter
Remote reading capability
Interference-resistant, suitable for urban and rural deployment
Easy installation with reduced maintenance costs

Technical Specifications

Neutral Missing Detection

Reverse Energy Detection

Magnetic Field Detection

Cover Opening / Terminal Cover Tamper Monitoring

Meter Bypass Detection and Reporting

User Experience Features

Real-time balance and consumption display via CIU
Low credit warning with power-off protection
Comprehensive event logs for tamper, token history, and credit records
Fast token acceptance and verification process

Installation & Deployment

Suitable for pole-mount or wall-mount installations. Ideal for utilities, property developers, and rural electrification projects. The RF-based split design significantly reduces deployment costs while maintaining system reliability.
