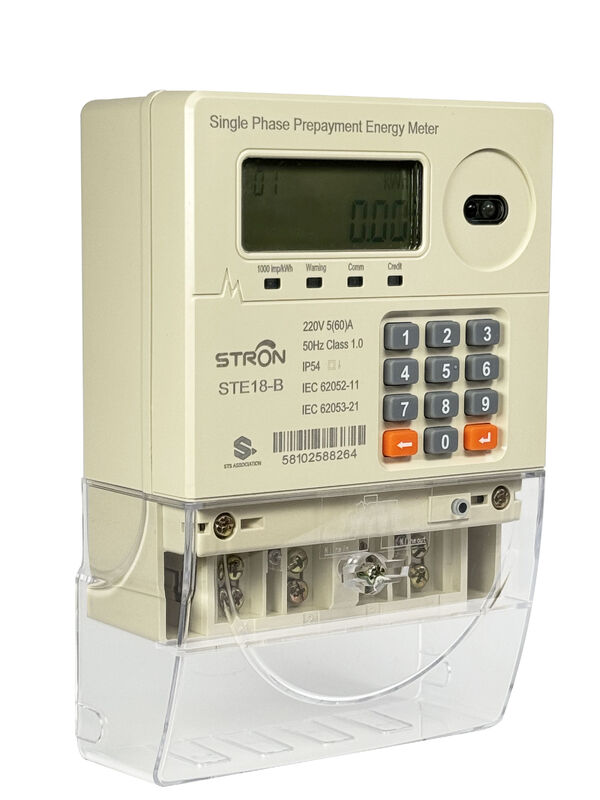

Name: Smart Prepaid Electricity Meter with RF Remote Reading Split Meter Design and STS Standard Prepayment
Brand: Hunan Stron Smart Co., Ltd
SKU: STE18
Price: 23.00 USD
Availability: InStock

Home > Products > Smart Prepaid Electricity Meter >

Smart Prepaid Electricity Meter with RF Remote Reading Split Meter Design and STS Standard Prepayment

RF Remote Reading Smart Prepaid Electricity Meter

Split Meter Design STS Prepaid Meter

STS Standard Prepayment Single Phase Electricity Meter

Place of Origin:

Hunan, China

Brand Name:

Stron

Certification:

STS

Model Number:

STE18

Request A Quote

Smart Prepaid Electricity Meter with RF Remote Reading Split Meter Design and STS Standard Prepayment

Product Details

Nominal Voltage:

220V/230V

Working Voltage Range:

30%~120%Un

Nominal Frequency:

50-60Hz

Current:

5(60)A

Active Energy Constant:

1000imp/kWh

Accuracy Class:

Class 1.0(Active Energy)

Standard:

IEC 62052-11/IEC62053-21

IP Rating:

IP54

Operation Temperature Range:

25℃-70℃

Communication:

433Hz RF

Highlight:

RF Remote Reading Smart Prepaid Electricity Meter

Split Meter Design STS Prepaid Meter

STS Standard Prepayment Single Phase Electricity Meter

Payment & Shipping Terms

Minimum Order Quantity

Price

USD 22-USD 24 Per pc

Packaging Details

Cartons

Delivery Time

15-25days

Payment Terms

L/C,T/T,Western Union,Paypal,Alipay

Supply Ability

100,000 pcs per month

CIU Three Phase Split Type Multi-Functional Display Pre Paid Billing Dual Tariff Energy Meters Smart Prepaid Electricity Meter

Get Best Price

Nominal Voltage 230V 30 to 120 Percent Electric Meter Testing Equipment Featuring IP54 Ingress Protection Suitable for Field and Laboratory

Get Best Price

Prepaid Token Type Smart Prepaid Electricity Meter Single Phase Input Way Keypad Suitable for Energy Management in Commercial Applications

Get Best Price

STS Prepaid Gas Meter G1.6/G2.5 Size with IP67 Waterproof and Vending Management System

Get Best Price

Contact Now

Product Description

Smart Prepayment Keypad STS Single Phase Electricity Meter with RF Remote Reading CIU

The STS Prepaid Single Phase Meter with Customer Interface Unit (CIU) delivers secure, reliable, and user-friendly energy management for residential and small commercial applications. Supporting STS standard vending, RF communication, and split architecture, this system ensures safe indoor access for consumers while protecting the meter from tampering and harsh outdoor environments.

Key Features & Specifications

STS Standard Prepayment

Secure 20-digit numeric token input system
Eliminates billing delays and revenue losses
Compatible with all major STS vending systems

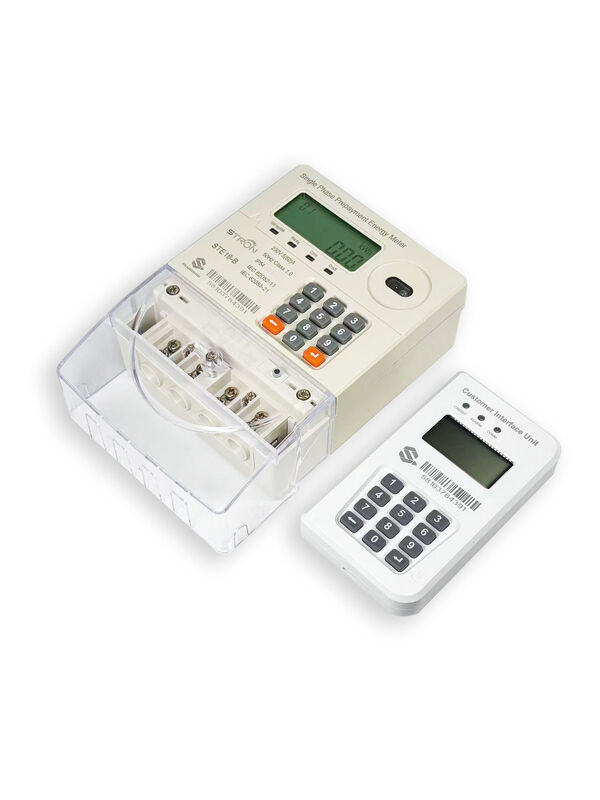

Split Meter Design (Meter + CIU)

CIU installed inside the consumer's home for easy access
Energy meter installed outside for anti-tamper protection
Users can check balance and enter tokens without accessing outdoor meter
Enhanced safety, convenience, and regulatory compliance

RF Communication Technology

Long-range and stable RF communication between CIU and meter
No wiring required between meter and CIU
Interference-resistant, suitable for urban and rural deployment
Easy installation with reduced maintenance costs

Technical Specifications

Vending Mode	STS Token (20-digit)
Communication	RF (CIU ↔ Meter), optional PLC/RS485 for backend
CIU Display	LCD with balance, consumption, alarm indicators
CIU Input	Keypad for token entry and system interaction

Advanced Anti-Tamper Functions

Neutral missing detection
Reverse energy detection
Magnetic field detection
Cover opening / terminal cover tamper monitoring
Meter bypass detection and reporting

User Experience Features

Real-time balance and consumption display via CIU
Low credit warning with power-off protection
Comprehensive event logs for tamper, token history, and credit records
Fast token acceptance and verification process

Installation & Deployment

Suitable for pole-mount or wall-mount installations. Ideal for utilities, property developers, and rural electrification projects. The RF-based split design significantly reduces deployment costs while maintaining system reliability.

System Benefits

Secure Revenue Protection
Through STS standard implementation

Convenient Operation
Indoor interaction via CIU

Reliable Communication
RF technology suitable for all environments

Easy Installation
No wiring required between CIU and meter

Robust Security
Comprehensive tamper detection ensures utility revenue safety
