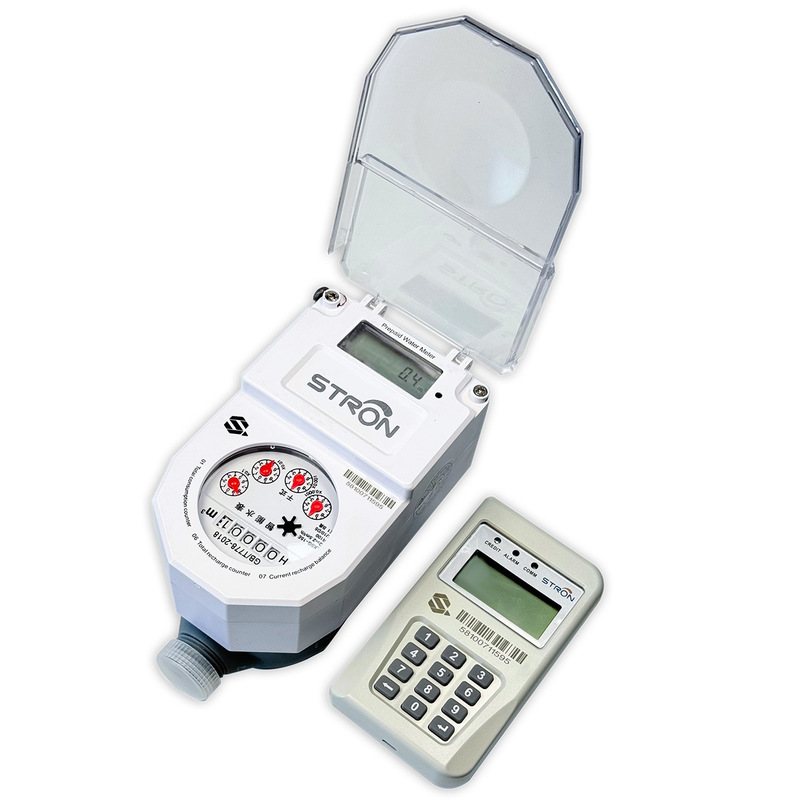

Name: STS STW36-B Advanced multi-jet water meter supporting two recharge methods
Brand: Hunan Stron Smart Co., Ltd
SKU: STW36-B
Price: 52.00 USD
Availability: InStock

Home > Products > Smart Water Meter >

STS STW36-B Advanced multi-jet water meter supporting two recharge methods

Place of Origin:

China

Brand Name:

Stron

Certification:

IS09001and ISO14001

Model Number:

STW36-B

Request A Quote

Product Details

Communication:

433MHz LORA-RF

Communication Distance:

350m/900m

Payment & Shipping Terms

Minimum Order Quantity

10PCS

Price

$45-$59

Packaging Details

Carton

Delivery Time

28-35DAYS

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

5000 pieces per month

STS STW36-B Advanced multi-jet water meter supporting two recharge methods

Get Best Price

Efficiently Monitor Water Usage with Highly Integrated IOT Smart Water Meter M-BUS/RS-485 Communication Ports

Get Best Price

IP68 DN15 Prepayment Water Meter With AMI System

Get Best Price

Stable And Water Temperature IOT Smart Water Meter Features 0.1-90C For Industrial

Get Best Price

86-0731-22421066

Contact Now

Product Description

Diameter 15mm 20mm 25mm MeasurementAccuracy Class 2.0 Class 2.0 Class 2.0 ConnectingThread G3/4B G1B G1-1/4B Metrologicalparametersfordifferent sizes DN15 DN20 DN25 OverloadflowrateQ4 3.13 5 7.87 Permanent flowrateQ3 2.5 4 6.3

Transitional flowrateQ2 0.04 0.064 0.1 Minimum flow rateQ1 0.025 0.04 0.063 Ratio

”R” Q3/Q1 100 100 100 AccuracyClass ClassB/ClassC

DisplayMode LCD, Digital, Pointer Communication 433MHz LORA-RF

Communication Distance with CIU/DCU 350m/ 900m MaximumReading 99999.9m³

Maximumpressure loss: <0.6Bar/0.06MPa PowerSupply LithiumbatteryER18505(4000mAh) 3.6V,4+yearslifespan

Current inWorking/Sleeping State ≤1.1mA /≤12uA Working Temperature <50℃(coldwatermeter) IPLevel IP68

NominalWorkingPressure 10Bar/1Mpa Maximum working pressure: 16Bar/1.6Mpa

Min.WorkingPressure 0.2Bar/0.02Mpa PermissibleError Q1≤Q≤Q2 5%; Q2≤Q＜Q4 2%

Features:The StronPay vending system can be adapted to various meter types (including electric meters, water meters and gas meters). The Microsoft SQL Server backend database management tool safeguards data security. Operation security is guaranteed by account permission management.

Supporting APIs are available to facilitate users in expanding functions and meeting personalized needs of different business scenarios.
