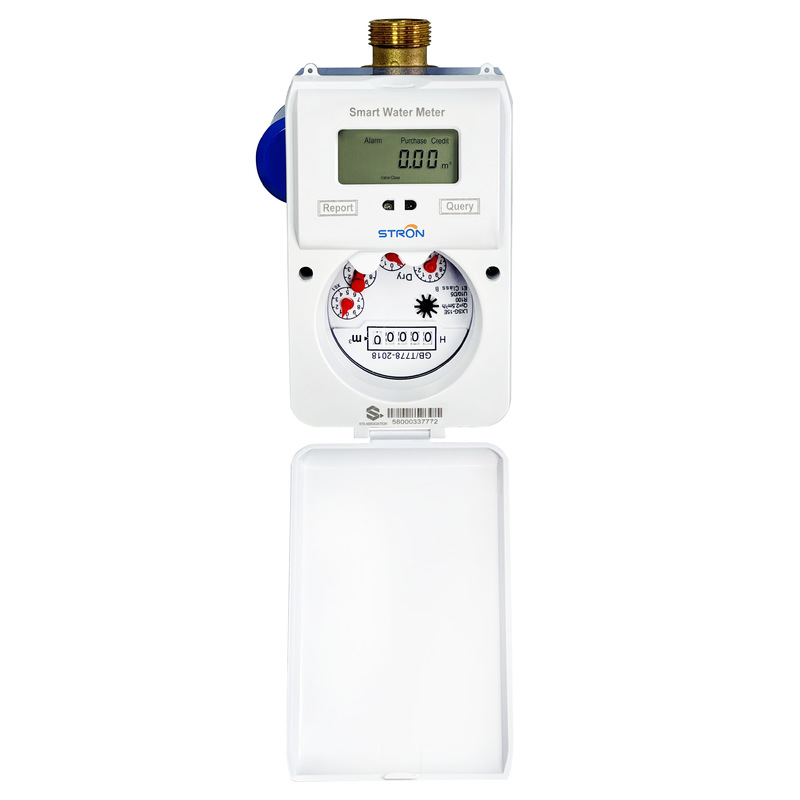

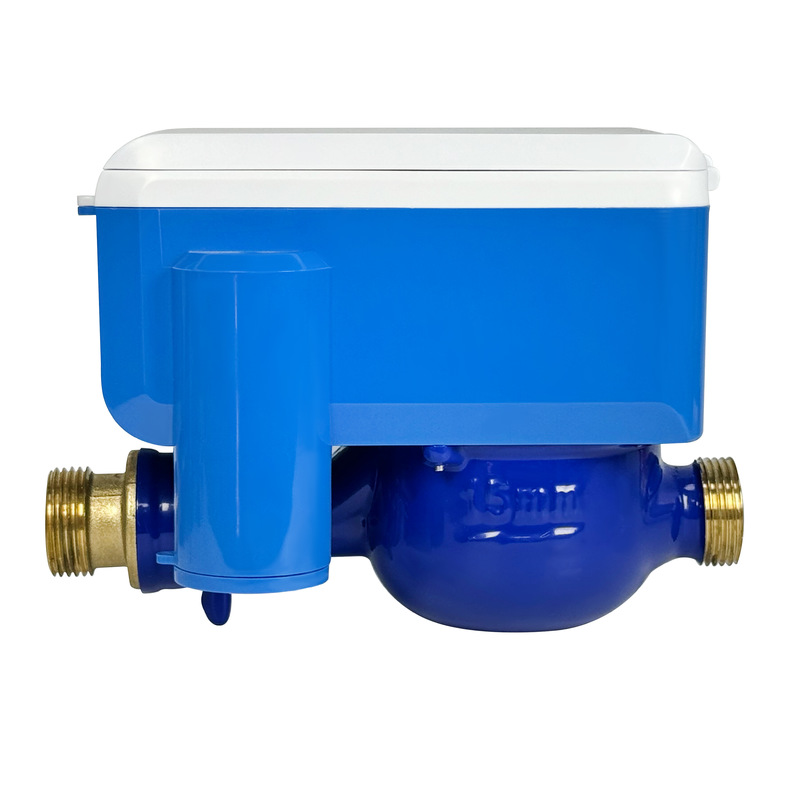

Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter

Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter

LCD Display Smart Water Meter

Threaded Connectivity Prepaid Water Meter

OEM/ODM Support STS Water Meter

Place of Origin:

Hunan, China

Brand Name:

Stron

Certification:

STS Certificate,ISO9001,ISO14001

Model Number:

STW36

Contact Us
Request A Quote
Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter
Product Details
Protection Class:
IP68
Battery Life:
8 Years
Display Type:
LCD
Accuracy Class:
Class C
Water Pressure:
16MPA
Charge Mode:
Step Price Supports
Anti-Tamper Protection:
Magnetic Field Protection
Communication Protocol:
LORA RF Or Bluetooth 4.0
Maximum Temperature:
50℃
Maximum Pressure Loss:
0.6Bar
Overload Flow Rate:
3.13 (DN15mm), 5 (DN20mm), 7.875 (DN25mm)
Permanent Flow Rate:
2.5 (DN15mm), 4 (DN20mm), 6.3 (DN25mm)
Minimum Flow Rate:
0.025 (DN15mm), 0.04 (DN20mm), 0.063 (DN25mm)
Transitional Flow Rate:
0.04 (DN15mm), 0.064 (DN20mm), 0.1 (DN25mm)
Maximum Working Pressure:
16Bar
Highlight:

LCD Display Smart Water Meter

,

Threaded Connectivity Prepaid Water Meter

,

OEM/ODM Support STS Water Meter

Payment & Shipping Terms
Minimum Order Quantity
100
Price
$43-45
RELATED PRODUCTS
Good price Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life online

Brass Body Lora Wireless Prepaid Water Meter with 16MPA Water Pressure and 8 Years Battery Life

Get Best Price
Good price DN15 Prepaid Smart Water Meter with 999999.99m³ Measurement Range Anti-Theft Keyboard Type and 165mm*190mm*260mm Size online

DN15 Prepaid Smart Water Meter with 999999.99m³ Measurement Range Anti-Theft Keyboard Type and 165mm*190mm*260mm Size

Get Best Price
Good price DN25 STS Standard Prepaid Water Meter with 0℃-50℃ Temperature LCD Display and LoRa-RF Communication online

DN25 STS Standard Prepaid Water Meter with 0℃-50℃ Temperature LCD Display and LoRa-RF Communication

Get Best Price
Good price Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter online

Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter

Get Best Price
Contact Us
86-0731-22421066
Contact Now
Product Description
2025 New Type High-Capacity Wireless Communication RF Lora Smart Split STS Prepaid Water Meter
This STS standard token-type prepaid water meter features IP68 waterproof rating for operation in harsh environments. Its Multi-Jet construction ensures reliable operation even in muddy water without clogging. With low pressure loss (<0.06Mpa) and maintained accuracy beyond 10 years of use, it's available in multiple configurations to meet various requirements.
Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 0 Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 1 Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 2
Product Variants
Prepaid Keypad Type Plastic Water Meter
Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 3 Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 4
Prepaid Keypad Type Brass Water Meter
Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 5 Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 6

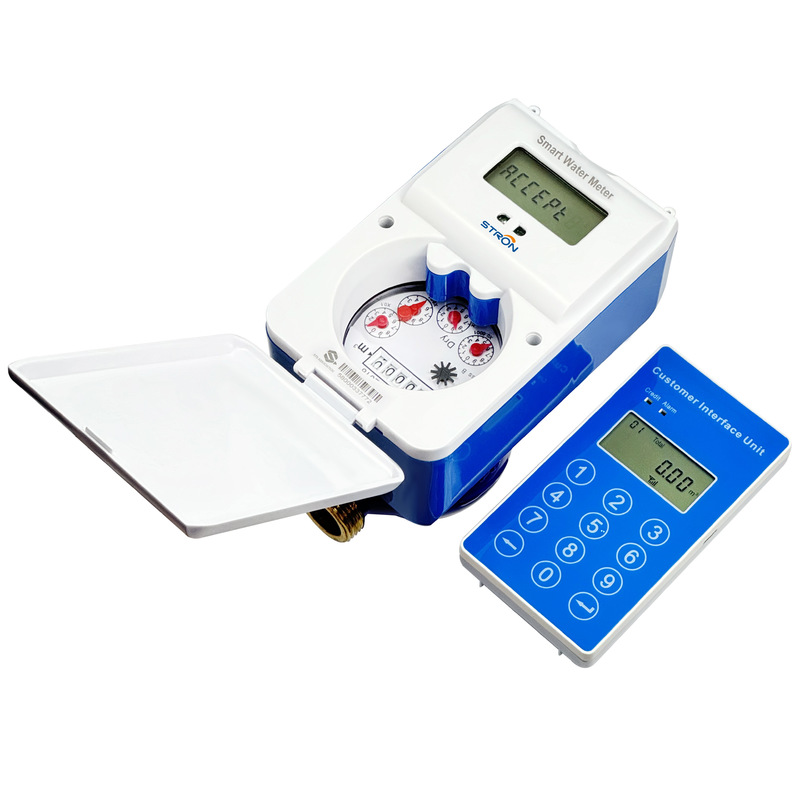

Prepaid Split Keypad Type Brass Water Meter+CIU
Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 7 Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 8
Technical Specifications
Function Details
Prepayment STS Standard, recharge by input 20digits TOKEN
Low credit alarm Alarm value can be set by inputting corresponding TOKEN
Prepaid and post-paid switch Meter can be switch to prepaid mode or post-paid mode
Non-return valve Non-return valve inside for preventing back-flow
Anti-tamper Meter will automatically close the valve after detection of magnetic field and open cover event
Step Tariff Step Tariff can be set by inputting corresponding TOKEN
Overdraft Collection Non-Revenue gas (Overdraft) can be collected day by day or month by month
Communication The meter is available with AMI system through LORA RF or Bluetooth 4.0 on request
Information Inquiry Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code
Metrological Parameters
Size DN15mm 1/2" DN20mm 3/4" DN25mm 1"
Overload flow rate Q4 3.13 5 7.875
Permanent flow rate Q3 2.5 4 6.3
Transitional flow rate Q2 0.04 0.064 0.1
Minimum flow rate Q1 0.025 0.04 0.063
Ratio "R" Q3/Q1 100 100 100
Maximum working pressure 16Bar 16Bar 16Bar
Maximum pressure loss 0.6Bar 0.6Bar 0.6Bar
Maximum reading 99999 99999 99999
Max temperature 50℃ 50℃ 50℃
Error Q1≦Q≦Q2 5% 5% 5%
Error Q2≦Q≦Q4 2% 2% 2%
Vending Process
Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 9
Operation Steps
  1. Login vending system
  2. Meter number registration
  3. Customer information registration
  4. Price Setting
  5. Open Account
  6. Vending/Topping up meters
  7. Get the Token
  8. Input Token to meter with keypad
  9. Recharging successfully
Vending Options
Option 1: Vending at local sales point
Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 10
Option 2: Vending with third party APP/mobile payment/billing system with API
API: Application Program Interface, which is the agreement connecting the third party APP and our Stronpay vending software.
Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 11
Company Profile
Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 12
Hunan Stron Smart Co., Ltd, founded in 2007, is the leading supplier of smart meters in China. With 500 employees including 100 technical engineers (100 with professional titles), we are committed to being the premier intelligent product service provider.
Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 13 Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 14
Stron has maintained long-term cooperation with partners from over 60 countries and regions including South Africa, Nigeria, Tanzania, Kenya, Indonesia, Myanmar, Cameroon, etc.
Certifications
Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 15 Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 16 Smart Water Meter with LCD Display Threaded Connectivity and OEM/ODM Support STS Standard Prepaid Water Meter 17
