Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication

84 Flow Rate Prepaid Water Meter

Mobile Payment Integration Smart Water Meter

LORA-RF Communication STS Water Meter

Place of Origin:

Hunan, China

Brand Name:

Stron

Request A Quote

Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication

Product Details

Protection Class:

IP68

Flow Rate:

Measurement Range:

1km

Size:

DN15mm~DN25mm (1/2''~1-1/2'')

Material:

Plastic Body

Accuracy Ratio:

R100

Maximum Pressure:

16bar

Maximum Temperature:

50°C

Battery Life:

6 Years

Communication:

LORA-RF Or Bluetooth 4.0

Length:

165/190mm, 190mm, 225/260mm

Width:

99mm, 99mm, 103mm

Height:

104mm, 106mm, 114mm

Connecting Thread:

G3/4B, G1B, G1-1/4B

Maximum Reading:

99999

Highlight:

84 Flow Rate Prepaid Water Meter

Mobile Payment Integration Smart Water Meter

LORA-RF Communication STS Water Meter

Payment & Shipping Terms

Minimum Order Quantity

100

Price

$31-38

STS Smart Water Meter with 84 Flow Rate Mobile Payment Integration and LoRa-RF Communication

Get Best Price

STS Standard Prepaid Water Meter with 2.5/4/6.3 m³/h Flow Rate 99999m³ Measurement Range and 2 Years Warranty

Get Best Price

STS Integrated Keypad Split Smart Water Meter with 1km Measurement Range 84 Flow Rate and Free Vending Software

Get Best Price

Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication

Get Best Price

86-0731-22421066

Contact Now

Product Description

Customizable Integrated Smart STS 84 Water Meter

Premium Quality at Competitive Pricing

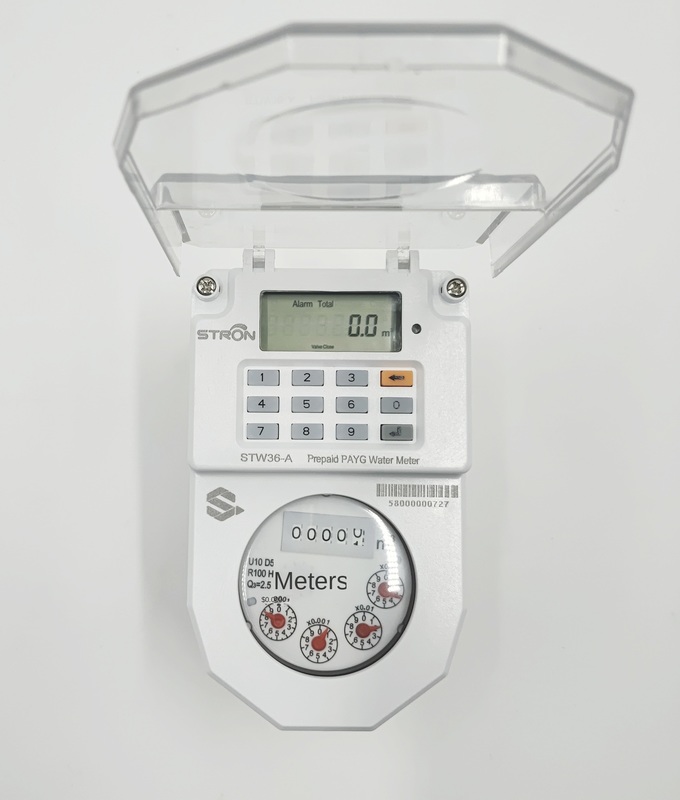

Low price, high quality - The STW36-A Prepaid water meter offers exceptional value for African markets, combining smart technology with affordable pricing thanks to reduced production and logistics costs.

Precision Measurement with Advanced Protection

Achieving accuracy up to R160 (optional), the STW36-A features:

Special Anti-Tamper function that automatically closes valve when detecting magnetic fields or cover opening
Full compliance with STS standards
IP68 waterproof protection rating

Extended Battery Life with Triple Protection

Engineered for longevity with:

High-performance lithium battery
Optimized energy consumption
Triple protection against moisture

Field tests confirm over 6 years of continuous operation.

Integrated Smart Vending System

Includes free Stronpay water vending software that integrates with:

Mobile Money platforms (M-PESA, Alipay, MTN, Airtel)
Integrated keypad for TOKEN entry
Dual top-up options (in-person or mobile)

Vending System Features

Token-based recharge, data management, and restoration
Maximum overdraft setting
Comprehensive role and user management

Stron Water Meter AMI Solution

Our free AMI system enables:

Collective meter reading
Remote monitoring
Autonomous recharge

Key Features

IP68 waterproof rating
Up to 8 years battery life
Automatic valve control
STS Standard compliance
Real-time clock
Configurable step pricing
Anti-Tamper magnetic protection

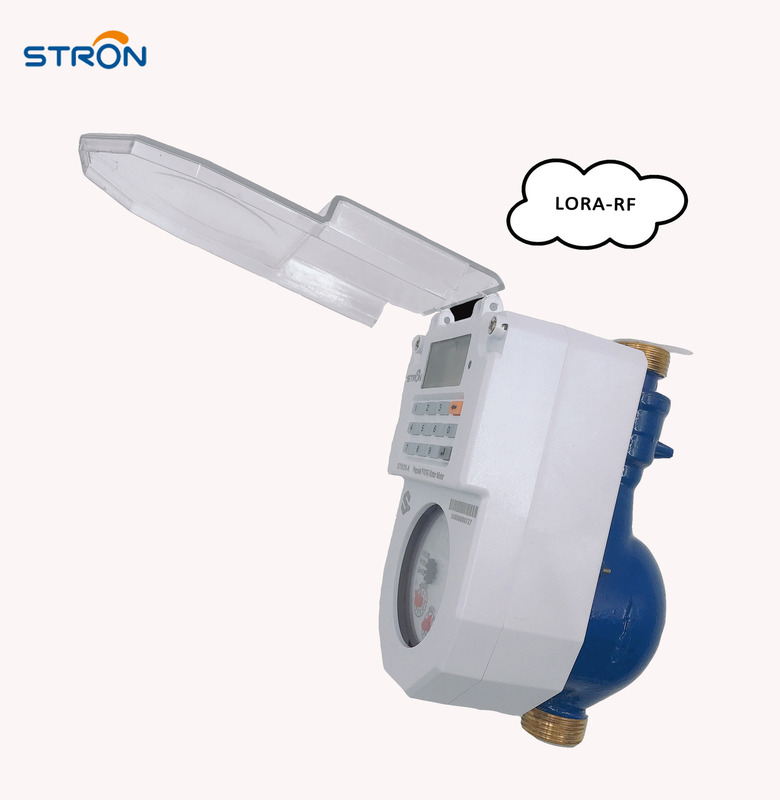

Optional LoRa-RF communication
Mobile payment integration

Technical Specifications

Metrological Parameters

Size	DN15mm 1/2"	DN20mm 3/4"	DN25mm 1"
Overload flow rate Q4	3.13	5	7.87
Permanent flow rate Q3	2.5	4	6.3
Transitional flow rate Q2	0.04	0.064	0.1
Minimum flow rate Q1	0.025	0.04	0.063
Ratio "R" Q3/Q1	100	100	100
Maximum working pressure	16bar	16bar	16bar
Maximum pressure loss	0.6bar	0.6bar	0.6bar
Maximum reading	99999	99999	99999
Max temperature	50°C	50°C	50°C
Max permissible error (MPE)	Q1≤Q≤Q2,MPE=±5% Q2≤Q≤Q4,MPE=±2%

Basic Functionality

Function	Details
Prepayment	STS Standard, recharge by input 20 digits TOKEN
Low credit alarm	Alarm value can be set by inputting corresponding TOKEN
Prepaid and post-paid switch	Meter can be switched to prepaid or post-paid mode
Non-return valve	Prevents back-flow
Anti-tamper	Automatically closes valve after detecting magnetic field or open cover
Step tariff	Configurable via TOKEN input
Overdraft collection	Non-revenue water can be collected daily or monthly
Communication	Optional AMI system via LoRa-RF or Bluetooth 4.0
Information inquiry	Users can check credit, purchases, and total credit via short codes

Physical Dimensions

Size	DN15 1/2"	DN20 3/4"	DN25 1"
Length (mm)	165/190	190	225/260
Width (mm)	99	99	103
Height (mm)	104	106	114
Connecting thread	G3/4B	G1B	G1-1/4B
