STS Standard Prepaid Water Meter with 1km Measurement Range 84 Flow Rate and Grey Color DN15 IP68

1km Measurement Range Prepaid Water Meter

84 Flow Rate Smart Water Meter

Grey Color Intelligent Water Meter

Place of Origin:

Hunan, China

Brand Name:

Stron

Request A Quote

STS Standard Prepaid Water Meter with 1km Measurement Range 84 Flow Rate and Grey Color DN15 IP68

Product Details

Protection Class:

IP68

Flow Rate:

Measurement Range:

1km

Size:

DN15mm~DN25mm (1/2''~1-1/2'')

Material:

Plastic Body

Q3/Q1 Ratio:

R100

Maximum Pressure:

16bar

Maximum Temperature:

50°C

Battery Life:

6 Years

Accuracy:

R160 (optional)

Overload Flow Rate:

3.13 (DN15mm)

Permanent Flow Rate:

2.5 (DN15mm)

Transitional Flow Rate:

0.04 (DN15mm)

Minimum Flow Rate:

0.025 (DN15mm)

Maximum Reading:

99999

Highlight:

1km Measurement Range Prepaid Water Meter

84 Flow Rate Smart Water Meter

Grey Color Intelligent Water Meter

Payment & Shipping Terms

Minimum Order Quantity

100

Price

$45-52

STS Smart Water Meter with 84 Flow Rate Mobile Payment Integration and LoRa-RF Communication

Get Best Price

STS Standard Prepaid Water Meter with 2.5/4/6.3 m³/h Flow Rate 99999m³ Measurement Range and 2 Years Warranty

Get Best Price

STS Integrated Keypad Split Smart Water Meter with 1km Measurement Range 84 Flow Rate and Free Vending Software

Get Best Price

Customizable STS Prepaid Water Meter with 84 Flow Rate Mobile Payment Integration and LORA-RF Communication

Get Best Price

86-0731-22421066

Contact Now

Product Description

STS Integrated Keypad Smart Water Meter Customizable OEM Product DN15 M-Bus IP68 Prepaid Brass Plastic Meter

Premium Quality at Competitive Pricing

The STW36-A Prepaid Water Meter offers exceptional value for African markets, combining advanced smart technology with cost-effective pricing. Reduced volumetric water meter technology costs and improved logistics infrastructure make this product significantly more affordable than comparable solutions.

Precision Measurement with Advanced Protection

Engineered for R160 accuracy (optional), the STW36-A features specialized Anti-Tamper technology that automatically closes valves when detecting magnetic fields or cover openings. Compliant with STS standards and featuring IP68 waterproof protection.

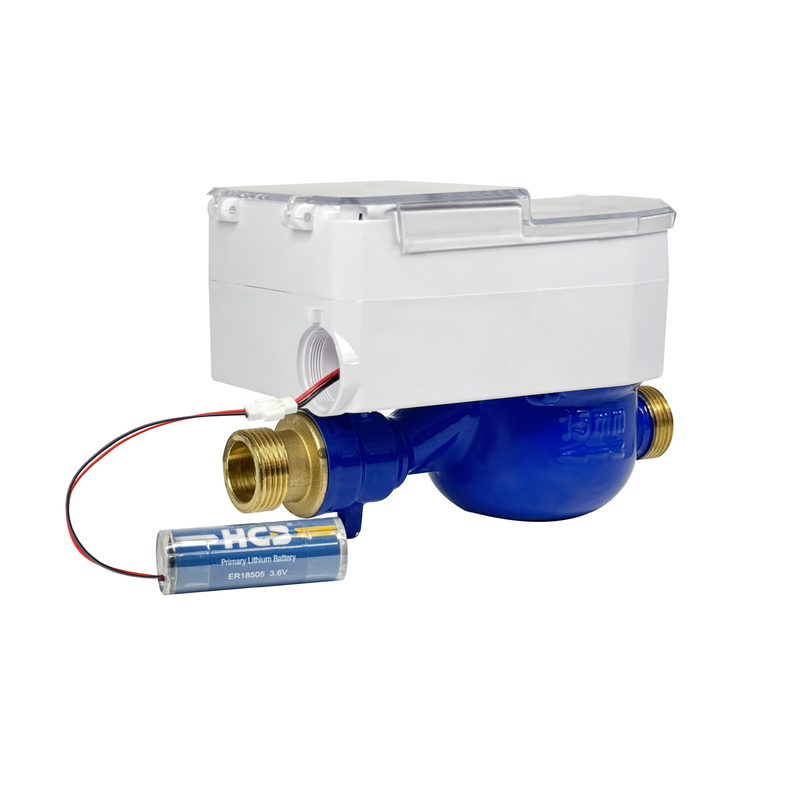

Extended Battery Life with Triple Protection

The meter's power system includes:

High-performance lithium battery
Optimized energy consumption design
Triple moisture protection system

Field tests confirm 6+ years of continuous operation from the built-in battery.

Integrated Vending System with Mobile Payment

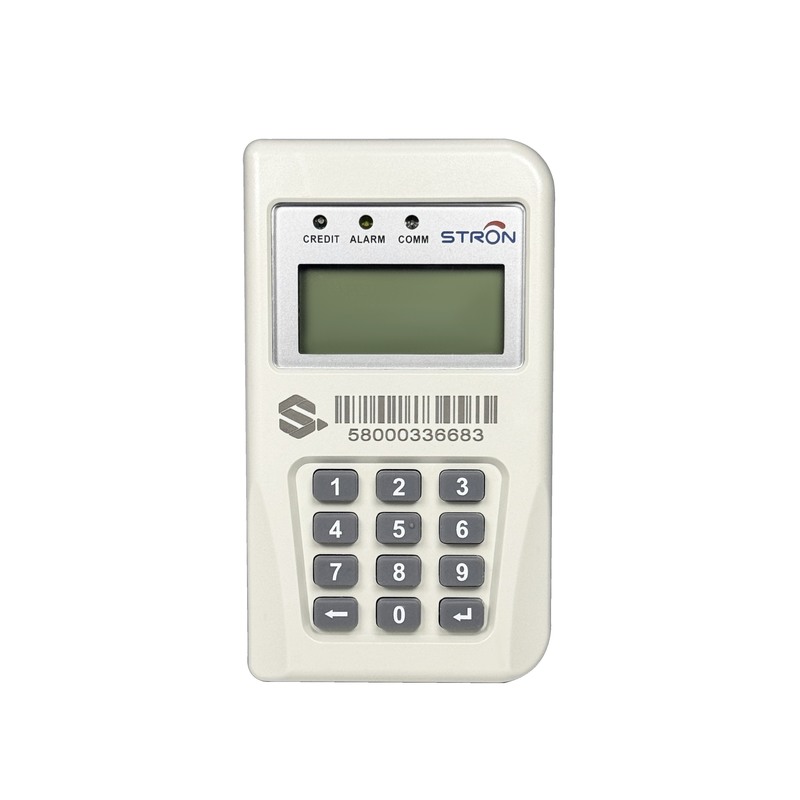

Our free Stronpay water vending software integrates with mobile payment platforms (M-PESA, Alipay, MTN, Airtel) enabling remote top-ups. The integrated keypad allows for:

TOKEN code entry for recharging
Account information access via short codes
Two recharge methods: in-person or mobile payment

Advanced Vending System Features

The token-based system provides comprehensive functionality:

Maximum overdraft setting
Role and user management
Data restoration and clearing

Stron Water Meter AMI Solution

LoRa-RF technology enables our free AMI system for:

Collective meter reading
Remote monitoring
Autonomous recharge

Key Product Features

IP68 waterproof protection
8-year battery life
Automatic valve control
STS Standard compliance
Real-time clock
Configurable step pricing
Anti-tamper magnetic protection
Optional LoRa-RF communication
Mobile payment integration

Technical Specifications

Parameter	DN15mm (1/2")	DN20mm (3/4")	DN25mm (1")
Overload flow rate (Q4)	3.13	5	7.87
Permanent flow rate (Q3)	2.5	4	6.3
Transitional flow rate (Q2)	0.04	0.064	0.1
Minimum flow rate (Q1)	0.025	0.04	0.063
Ratio "R" (Q3/Q1)	100	100	100
Maximum working pressure	16bar	16bar	16bar
Maximum pressure loss	0.6bar	0.6bar	0.6bar
Maximum reading	99999	99999	99999
Maximum temperature	50°C	50°C	50°C

Functional Specifications

Function	Details
Prepayment	STS Standard, recharge by input 20 digits TOKEN
Low credit alarm	Alarm value can be set by inputting corresponding TOKEN
Prepaid/post-paid switch	Meter can switch between prepaid and post-paid modes
Non-return valve	Prevents back-flow
Anti-tamper	Automatically closes valve after detecting magnetic field or cover opening
Step tariff	Configurable via TOKEN input
Overdraft collection	Non-revenue water can be collected daily or monthly
Communication	Optional AMI system via LoRa-RF or Bluetooth 4.0
Information inquiry	Users can check credit, purchases, and totals via short codes

Physical Dimensions

Dimension	DN15 (1/2")	DN20 (3/4")	DN25 (1")
Length (mm)	165/190	190	225/260
Width (mm)	99	99	103
Height (mm)	104	106	114
Connecting thread	G3/4B	G1B	G1-1/4B

Certifications

Frequently Asked Questions

Q: Can I get a sample for testing?
A: Samples are available with a nominal fee, which can be deducted from future bulk orders.

Q: What is the delivery time?
A: Standard delivery takes 5-10 days, with custom orders requiring 15-30 days.

Q: How many users worldwide?
A: Our primary markets in Africa and South Asia serve approximately 500,000 users through direct sales and OEM partnerships.
