Name: Smart Prepaid Electricity Meter 100A IP54 Waterproof Single Phase
Brand: Hunan Stron Smart Co., Ltd
SKU: STE18/STE38
Price: 463.90 USD
Availability: InStock

Home > Products > Smart Prepaid Electricity Meter >

Smart Prepaid Electricity Meter 100A IP54 Waterproof Single Phase

Smart prepaid electricity meter 100A

Waterproof single phase electricity meter

IP54 smart prepaid meter

Place of Origin:

China

Brand Name:

stron

Certification:

STS

Model Number:

STE18/STE38

Request A Quote

Product Details

Payment Method:

Prepaid

Communication Technology:

RF/PLC Module

Maximum Current:

100 Amps

Data Storage:

Event Log And Data Can Be Stored For 10 Years

Ingress Protection:

IP54 Waterproof

Measurement Unit:

1000imp/kWh

Display:

Digital

Phasen Number:

Single Phase

Product Name:

Prepaid Energy Meter

Rated Voltage:

220-240V/3*220V

Standard:

STS Standard

Display:

LCD

Frequency:

50-60HZ

Warranty:

2 Years

OEM:

Support

Certificate:

ISO9001; ISO14001; STS Standard

Communication:

LORA-RF Supported

Vending Software:

Supported

Recharge Token Length:

20 Digits

Protection Class:

IP54

Battery Life:

8 Years

Current Range:

(5A/80A)/(10A/100A)

Starting Current:

(20mA)/(30mA)

Energy Constant:

(1000imp/kWh)/(400imp/kWh)

Measurement Accuracy:

Class 1.0

Mobile Payment Support:

M-PESA, Alipay, MTN, Airtel, Etc.

Overdraft Collection:

Daily/monthly Optional

Data Storage Duration:

10 Years

Data Storage Duration:

10 Years

Anti-Tampering:

Both With Magnetic Field/cover-opening Detection; STE18-B Cuts Relay, STE38-G Shuts Valve When Triggered

Recharge Method:

(1. Stronpay Software; 2. 3rd-party/mobile Payment)plus 3. AMI System Remote Recharge)

Highlight:

Smart prepaid electricity meter 100A

Waterproof single phase electricity meter

IP54 smart prepaid meter

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiated

Packaging Details

Carton, 650×405×220mm

Delivery Time

14 work days

Payment Terms

T/T

Supply Ability

5000 set per month

STS Token three-phase keypad-type prepaid electricity meter with remote control and recharge

Get Best Price

STS Prepaid Engery Meter 2G And 4G Network Compatibility Smart Prepaid Electricity Meter for Smart Metering Applications IP54 Ingress Protection

Get Best Price

STS Single Electricity Prepaid GPRS Meter The Smart Way to Monitor and Control Energy Consumption

Get Best Price

Video

Ultra-Compact: 100kbps Speed LoraRF UART Wireless Module BGRF2 , -121dBm Sensitivity & 1μA Sleep Mode

Get Best Price

86-0731-22421066

Contact Now

Product Description

IP54 Waterproof Electrical Counter Meter The Most Accurate Tool for Counting The Electricity Consumption

Product Specifications

Attribute	Value
Payment Method	Prepaid
Communication Technology	RF/PLC Module
Maximum Current	100 Amps
Data Storage	Event log and data can be stored for 10 years
Ingress Protection	IP54 waterproof
Measurement Unit	1000imp/kWh
Display	Digital
Phase Number	Single Phase

Product Overview

The Smart Prepaid Electricity Meter is a cutting-edge Digital Power Meter designed to revolutionize electricity consumption management. This advanced energy meter features accurate measurement and efficient monitoring of power usage.

Key Features

Anti-Tamper Protection with Magnetic field protection
10-year data storage capacity with event log
RF/PLC Module for seamless connectivity
2G and 4G network compatibility
Wide operating temperature range (-25℃ to 70℃)
IP54 waterproof rating for outdoor durability

Technical Parameters

RF Sensitivity	-121dBm @2kbps
STS Standard	STS standard and protocol
Basic Current	5A
Storage Temperature	-40℃-85℃
Keypad	Supported

Applications

Residential Use

Ideal for monitoring and managing household electricity consumption, enabling real-time tracking and energy efficiency.

Commercial & Industrial Use

Perfect for sub-metering in office buildings, shopping centers, and industrial facilities with high energy demands.

Public Spaces

Robust IP54 waterproof design makes it suitable for outdoor installations in parks, bus terminals, and utilities.

Smart Grid Integration

STS-certified AMI smart meter that supports digital display and multiple payment options including mobile payments.

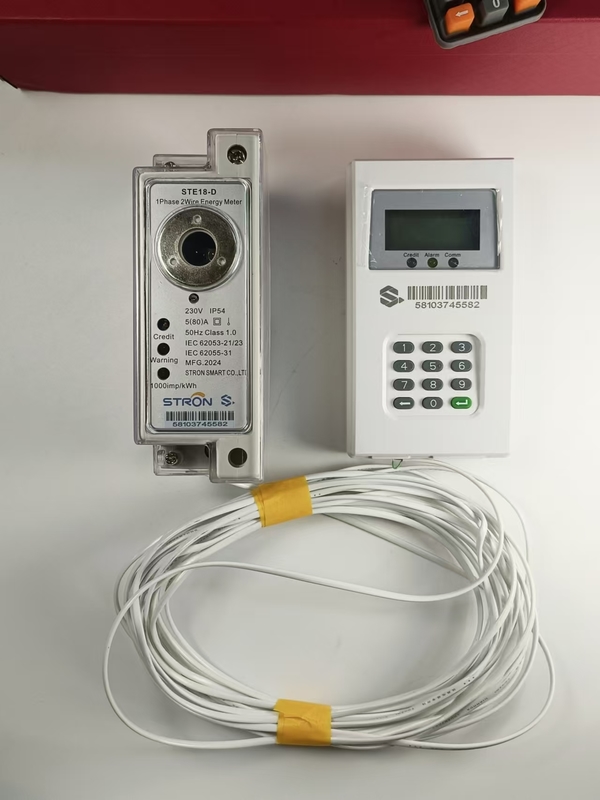

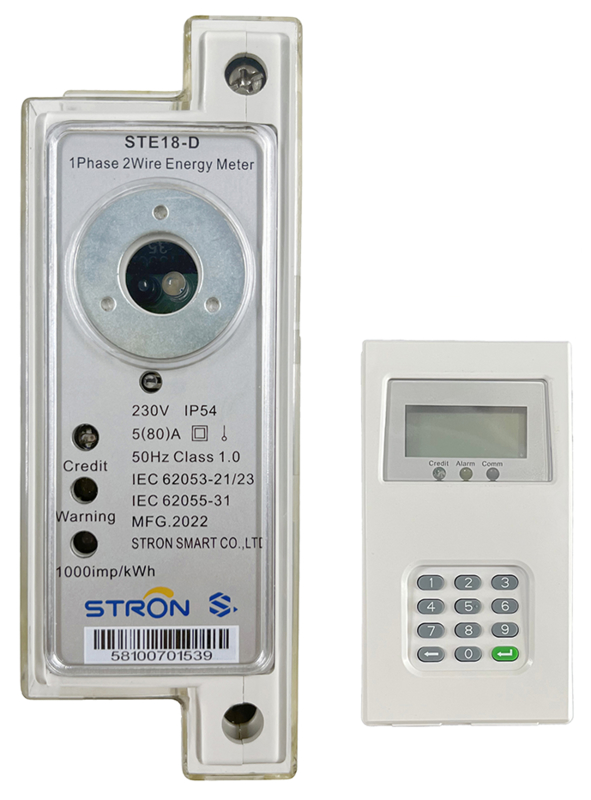

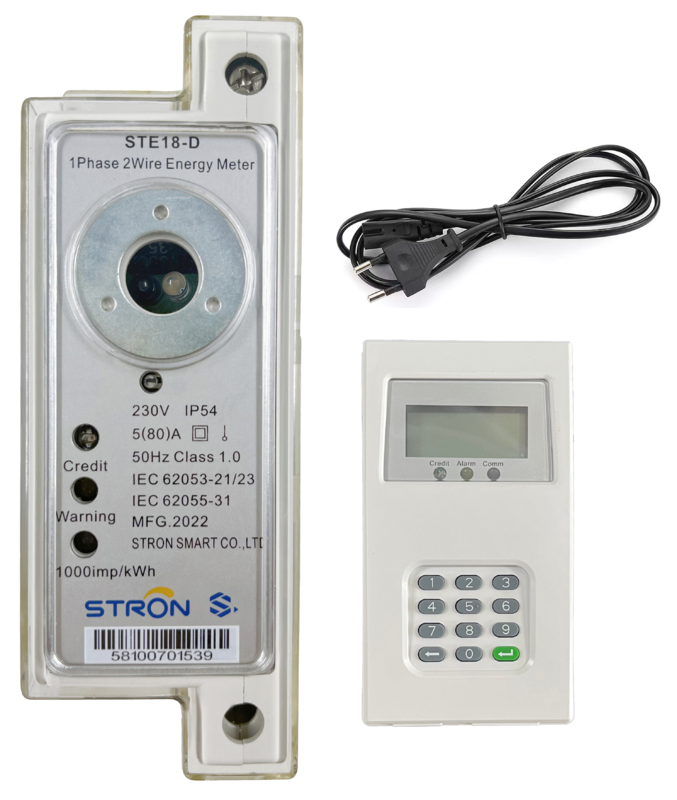

Product Images

Support & Services

Installation guidance and setup support
Troubleshooting assistance
Regular maintenance checks
Software updates and upgrades
Customer training programs
Emergency support services

Packaging & Shipping

The meter is securely packaged in a sturdy cardboard box with installation instructions and necessary accessories. Orders are processed within 1-2 business days and shipped via reliable courier with tracking information provided.

Frequently Asked Questions

What is the brand name of the Smart Prepaid Electricity Meter?

Stron

What is the model number?

STE38-S

What certification does it have?

STS (Standard Transfer Specification)

Where is it manufactured?

Hunan, China

What payment terms are available?

L/C, D/A, D/P, T/T, Western Union, MoneyGram
