The integrated keyboard is used to enter the recharge token and check the information via the short code.
The STE38-S has excellent anti-tampering features, such as terminal cover open detection sensors, which can help the utility protect income. STE38-S can utilize PLC or cable communication or RF to CIU as options and utilize PLC and RF communication to data concentrator (for smart metering applications) purposes.

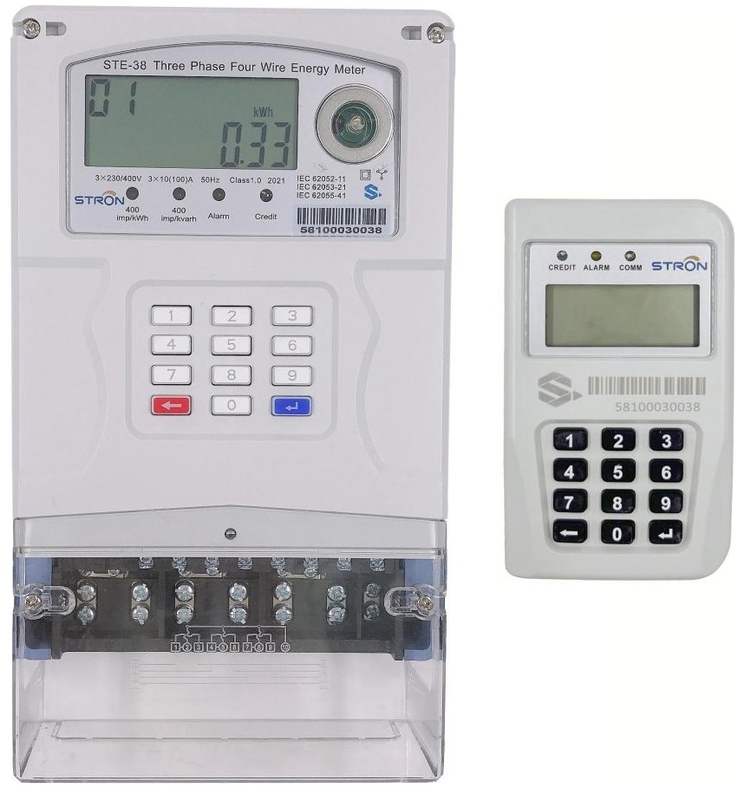

Customer Interface Unit (CIU), provide the recharge token and information through the short code input. The CIU is installed in the customer's house,When the meter is in a locked box or room away from their reach.
![Prepaid Split Meter Remote 3 Phase Digital Meter]()
|
Nominal voltage
|
3 x 230V
|
|
Operating voltage range
|
70% to 120% United Nations
|
|
Nominal frequency
|
50-60Hz
|
|
Basic current (Ib)
|
10A
|
|
Maximum current (Imax)
|
100A
|
|
Starting current (Ist)
|
30mA
|
|
active energy constant
|
400imp/kWh
|
|
Accuracy of active energy
|
Class 1.0
|
|
ReactivityEnergy accuracy
|
Class2.0
|
|
Power dissipation in voltage circuits
|
|
|
Power dissipation in current circuits
|
<1VA
|
|
Operating temperature range
|
-25 -70
|
|
Storage temperature range
|
-40 -85
|
Electromagnetic compatibility
|
AC insulation strength
|
50Hz 4kV in 1 minute
|
|
Pulse voltage 1.2/50 us mains connection
|
8 kV
|
|
Electrostatic Discharge
|
contact discharge
|
8 kV
|
|
|
Air discharge
|
16kV
|
|
electromagnetic radio frequency field
|
27MHz-500MHz
|
10 V/m
|
|
|
100 GHz -1 GHz
|
30 V/m
|
|
Fast transient burst test
|
4 kV
|
|
Protection
|
Level II
|
![Prepaid Split Meter Remote 3 Phase Digital Meter]()
![Prepaid Split Meter Remote 3 Phase Digital Meter]()
![Prepaid Split Meter Remote 3 Phase Digital Meter]()
Three Solutions for Recharge of Electric Energy Meter
Via local point of sale or handheld mobile vending unit
![]()
![Prepaid Split Meter Remote 3 Phase Digital Meter]()
2.Mobile payments and APIs via third-party platforms or on-premises
By mobile phone
API: Application Program Interface, which is the protocol that connects third-party applications with our Stronpay vending software.
![]()
3.By AMI system
![]()
Hunan Strong Intelligent Co., Ltd. was established in 2007 and is a leading supplier of smart meters in China. The company has 500 employees, including 100 technical engineers, of which 100 have professional titles. We are committed to becoming a smart product service provider.
![Prepaid Split Meter Remote 3 Phase Digital Meter]()
Strong has a strong technical team composed of professional engineers and well-known experts in the industry, and has applied for more than 100 patents and intellectual property rights, provincial and municipal awards.
![Prepaid Split Meter Remote 3 Phase Digital Meter]()
We have more than 10 million meters running in China's National Grid, which is the largest utility in the world. Our production capacity is 8 million smart meters per year, and there is a workshop only for overseas orders to ensure delivery time and quality control. Strong has maintained long-term cooperation with partners from more than 60 countries and regions including Canada, India, Egypt, South Africa, Nigeria, Tanzania, Kenya, Russia, Bangladesh, and Indonesia.
![Prepaid Split Meter Remote 3 Phase Digital Meter]()
![Prepaid Split Meter Remote 3 Phase Digital Meter]()
Q: Can I have a sample to test?
A: Sure, but we'll charge some money for the samples to cover the cost. However, if your purchase volume is large, we will Deduct or reduce the cost of your samples from the purchase price.
Q: When will the goods be received?
Answer: Generally, it takes 5~10 days, but if you have special requirements, it takes 15~30 days.
Q: How many users of your product are there in the world?
A: Our main market is Africa and South Asia, we not only produce our own products, but also produce ODM/OEM together with other instrument manufacturers, as well as automatic vending system, providing solutions is difficult to estimate the quantity, conservative estimate should be 500,000 users in these two major regions.
Specification
| item |
value |
| Phase |
Three Phase |
| Place of Origin |
China |
| Measuring Energy Range |
0-999999.9kwh |
| Output Voltage |
230v. |
| Application |
Household |
| Feature |
Remote control |
| Brand Name |
Stron |
| Model Number |
STE38 |
| Display Type |
Digital Only |
| Accuracy Class |
Class 1.0 |
| Operating Temperature |
-25℃ to+70℃ |
| Dimensions |
258.4mm*147.3mm*64mm |
Company Introduction
Huaihua Jiannan Machinery Factory Co., Ltd is founded in 1970, is the leading supplier of smart meter in China. As a former military technology company, we designed and produced China's first computer hard disk which contributes a lot to the aerospace and computer.
We started to produce smart meter since 2003 with military quality control to make sure our product o be the top class.
There are 500 employees in our company including 200 technical engineers, among which 100 people with professional title. We are devoting ourselves to be the intelligent product service provider. With more than 40 years' technical experience, we are able to supply total solution to our client from system, concentrator to smart energy meter, water meter and gas meter; We also have our own molding factory to supply meter case to our clients.
Our company is a member of China Instrument and Meter Industry Association and China Electrical Instrumentation Standardization Committee. We have participated in the formulation of GB/T18460 "IC Card Prepaid Meters and Power Sales System" and many other national standards; Our factory is qualified as ISO9001 , ISO14001 and OHSAS18001. We are considered as "Hunan Province Famous Brand enterprises", "Hunan Province Quality Products", "Hunan Province Integrity Brand" and other titles; Our smart meter has won the "national key new products" and "Mayor Quality Award".
In China, we have more than 10 million meters running in State Grid of China, which is the biggest utility in the world. All these meters are performing very well.
We are also looking for international market. Our products have accredited by KEMA, STS. We build a branch company: Shenzhen Jiannan Kaifa Technology Co.,Ltd in Shenzhen City, southern China, which is especially focus on international market. Our production capacity is 8million smart meters per year, and have a workshop only working for overseas' order to guarantee the delivery time and quality control.
We are confident to be you smart meters' long term partner.
FAQ
1. who are we?
We are based in Hunan, China, start from 2020,sell to Africa(70.09%),South America(10.05%),Central America(3.35%),Mid East(3.20%),South Asia(2.30%),Southeast Asia(1.90%). There are total about 501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Prepaid electricity meter,Prepaid water meter,Prepaid gas meter
4. why should you buy from us not from other suppliers?
We started to produce smart meter since 2003 with military quality control to make our product be the top class,our prepaid technology is proven by over 1,000,000 installations, We also supply schmatic designs and semi-finished products to other meter
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,DEQ;
Accepted Payment Currency: USD,EUR;
Accepted Payment Type: T/T,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken: English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
