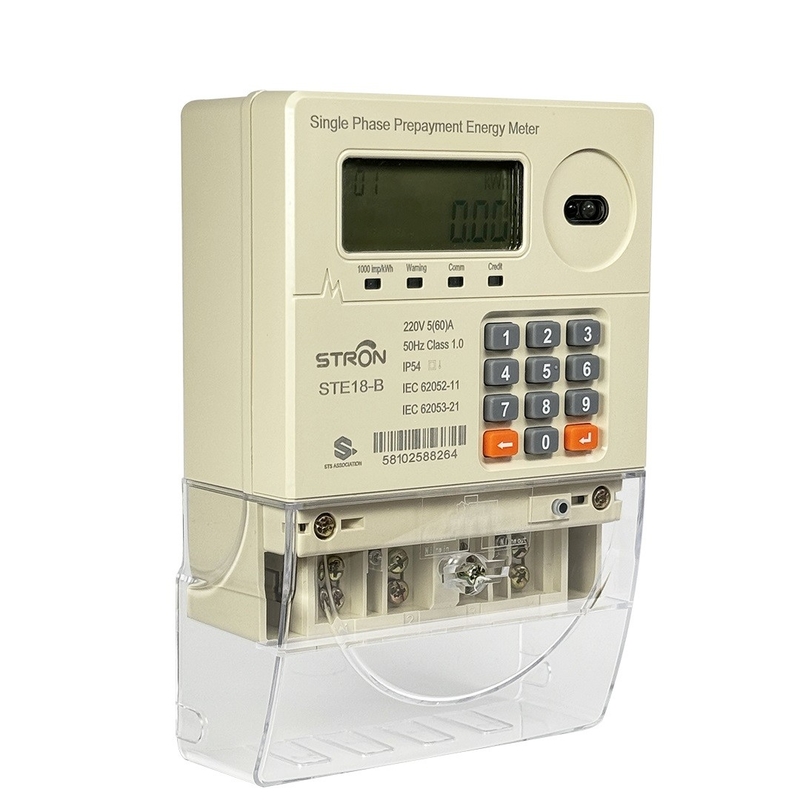

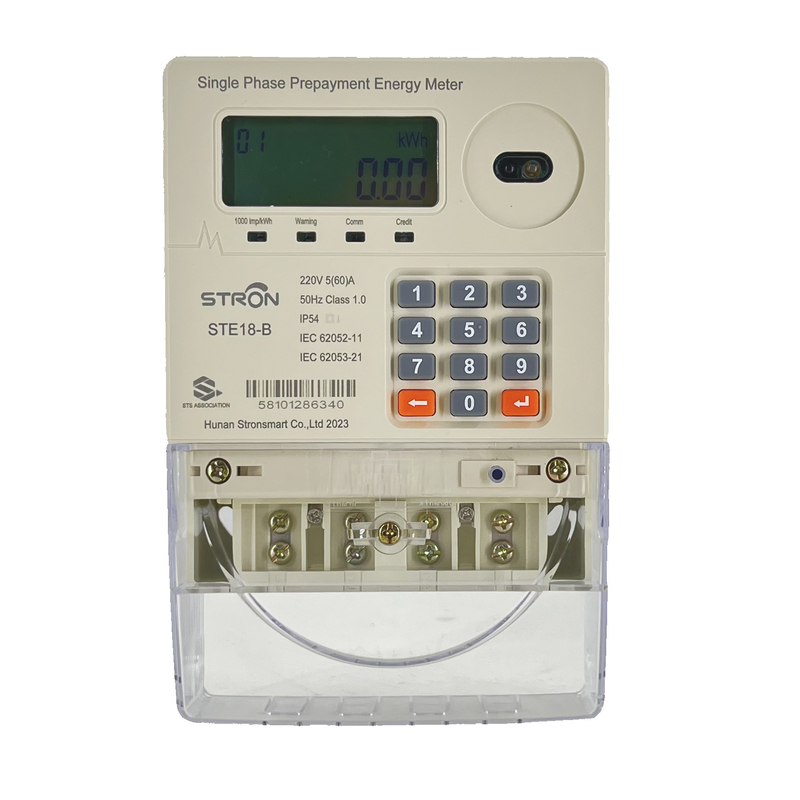

Name: 230V 60A STS 20 Digital Token Recharge Prepaid Single Phase Electricity Meter for Solar System
Brand: Hunan Stron Smart Co., Ltd
SKU: STE18/STE38
Price: 463.90 USD
Availability: InStock

Home > Products > Smart Prepaid Electricity Meter >

230V 60A STS 20 Digital Token Recharge Prepaid Single Phase Electricity Meter for Solar System

230V Prepaid Single Phase Electricity Meter

20 Digital Single Phase Electricity Meter

STS Prepaid Electricity Meter

Place of Origin:

China

Brand Name:

stron

Certification:

STS

Model Number:

STE18/STE38

Request A Quote

Product Details

Product Name:

Prepaid Energy Meter

Rated Voltage:

220-240V/3*220V

Standard:

STS Standard

Display:

LCD

Frequency:

50-60HZ

Warranty:

2 Years

Warranty:

2 Years

OEM:

Support

Certificate:

ISO9001; ISO14001; STS Standard

Communication:

LORA-RF Supported

Vending Software:

Supported

Recharge Token Length:

20 Digits

Protection Class:

IP54

Battery Life:

8 Years

Current Range:

(5A/80A)/(10A/100A)

Starting Current:

(20mA)/(30mA)

Starting Current:

(20mA)/(30mA)

Energy Constant:

(1000imp/kWh)/(400imp/kWh)

Measurement Accuracy:

Class 1.0

Mobile Payment Support:

M-PESA, Alipay, MTN, Airtel, Etc.

Overdraft Collection:

Daily/monthly Optional

Data Storage Duration:

10 Years

Anti-Tampering:

Both With Magnetic Field/cover-opening Detection; STE18-B Cuts Relay, STE38-G Shuts Valve When Triggered

Recharge Method:

(1. Stronpay Software; 2. 3rd-party/mobile Payment)plus 3. AMI System Remote Recharge)

Highlight:

230V Prepaid Single Phase Electricity Meter

20 Digital Single Phase Electricity Meter

STS Prepaid Electricity Meter

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiated

Packaging Details

Carton size: 67.5cm*40cm*14.5cm. Quantity：20 units per carton. Weight: 10.56kg

Delivery Time

5-15 work day

Payment Terms

T/T

Supply Ability

80000000 units per year

Contact Now

Product Description

This STS prepaid single phase electricity meter is complait for STS standard, designed for residential and small commercial users. This meter supports prepaid recharge management.Users can manage their electricity consumption through TOKEN-based recharging, preventing power disconnection due to insufficient balance. It is an ideal solution for smart metering and energy management.

Main functions:

1. Meter recharge by inputting token

2. Active energy measurement

3. Build-in relay control

4. Low credit alarm( red light alarm)

5. Query data by short codes

Please note:

1.This type no battery inside2. No buzzer alarm
3. There is LLNN wiring way available

Parameters

			Nominal Voltage
			230V

			Working Voltage Range
			30%~120%Un

			Nominal Frequency
			50-60Hz

			Basic Current (Ib)
			5A

			Maximum Current (Imax)
			60A

			Active Energy Constant

			1000imp/kWh

			Measurement Accuracy
			<2W <8VA

			Power Consumption in Voltage Circuit
			<1VA

			Power Consumption in Current Circuit
			-25℃-70℃

			Operation Temperature Range
			-40℃-85℃
