Name: Prepaid Din-Rail Single Phase Electricity Meter+CIU For Counting The Electricity Consumption
Brand: Hunan Stron Smart Co., Ltd
SKU: STE18/STE38
Price: 463.90 USD
Availability: InStock

Home > Products > Smart Prepaid Electricity Meter >

Prepaid Din-Rail Single Phase Electricity Meter+CIU For Counting The Electricity Consumption

Prepaid Single Phase Electricity Meter

CIU Single Phase Electricity Meter

Din-Rail Single Phase Electricity Meter

Place of Origin:

China

Brand Name:

stron

Certification:

STS

Model Number:

STE18/STE38

Request A Quote

Product Details

Measurement Unit:

1000imp/kWh

Basic Current:

Application:

Counting The Electricity Consumption

Operating Temperature:

-25℃-70℃

Type:

Electricity Meter

Storage Temperature:

-40℃-85℃

Display:

Digital

Keypad Type:

Split Keypad

Power Source:

Electricity

Payment Method:

Prepaid

Charge Mode:

Prepaid

Phasen Number:

Single Phase

Communication:

RF/PLC Module

Product Name:

Prepaid Energy Meter

Rated Voltage:

220-240V/3*220V

Standard:

STS Standard

Display:

LCD

Frequency:

50-60HZ

Warranty:

2 Years

OEM:

Support

Certificate:

ISO9001; ISO14001; STS Standard

Communication:

LORA-RF Supported

Vending Software:

Supported

Recharge Token Length:

20 Digits

Protection Class:

IP54

Battery Life:

8 Years

Current Range:

(5A/80A)/(10A/100A)

Starting Current:

(20mA)/(30mA)

Energy Constant:

(1000imp/kWh)/(400imp/kWh)

Measurement Accuracy:

Class 1.0

Mobile Payment Support:

M-PESA, Alipay, MTN, Airtel, Etc.

Overdraft Collection:

Daily/monthly Optional

Data Storage Duration:

10 Years

Anti-Tampering:

Both With Magnetic Field/cover-opening Detection; STE18-B Cuts Relay, STE38-G Shuts Valve When Triggered

Recharge Method:

(1. Stronpay Software; 2. 3rd-party/mobile Payment)plus 3. AMI System Remote Recharge)

Highlight:

Prepaid Single Phase Electricity Meter

CIU Single Phase Electricity Meter

Din-Rail Single Phase Electricity Meter

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiated

Delivery Time

15-30 DAYS

Payment Terms

T/T

Supply Ability

100PC < 30 DAYS

80A Single Phase Digital Energy Meter , 230V Prepaid Electric Metre

Get Best Price

Video

Keyboard-style Smart Prepaid Electricity Meter with RF Reader and Load Control Function

Get Best Price

60HZ Single Phase Electric Meter , IP54 Prepaid Smart Electric Meter

Get Best Price

IP54 50HZ Smart Prepaid Electricity Meter Single Phase With STS Standard

Get Best Price

86-0731-22421066

Contact Now

Product Description

Prepaid Din-Rail Single Phase Electricity Meter+CIU For Counting The Electricity Consumption 0

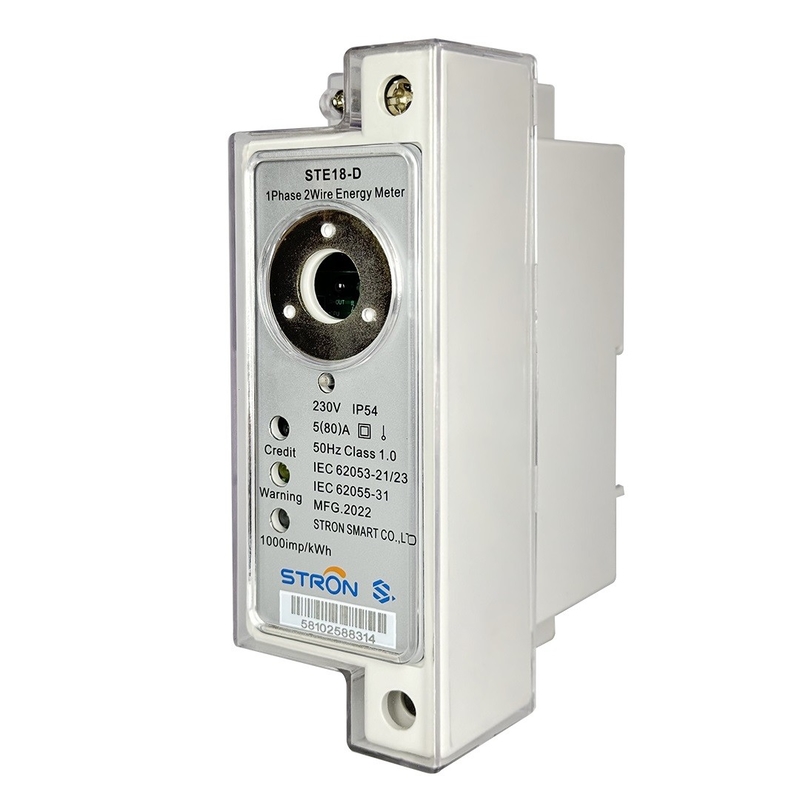

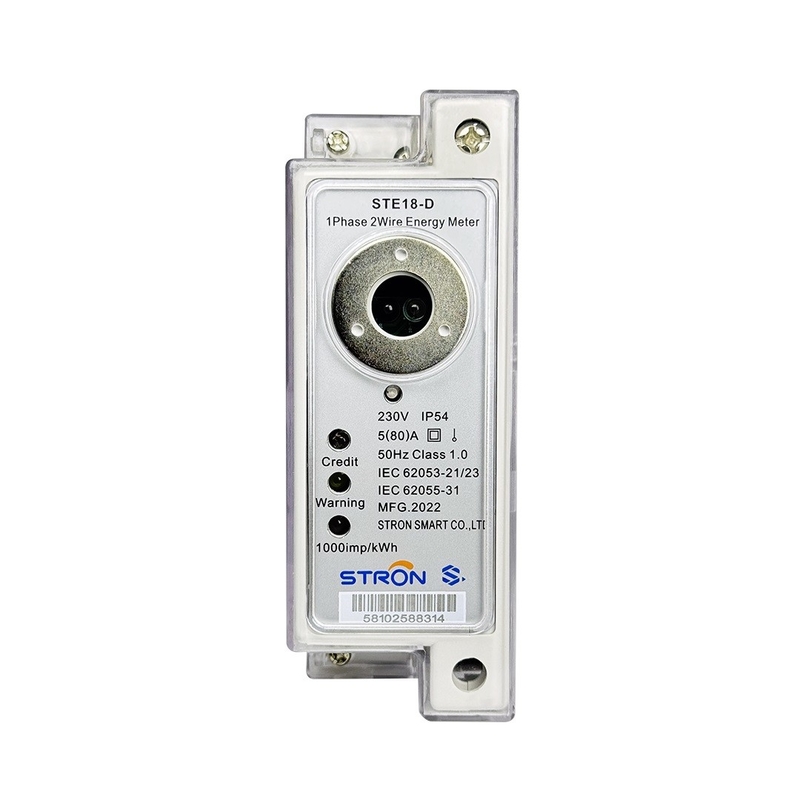

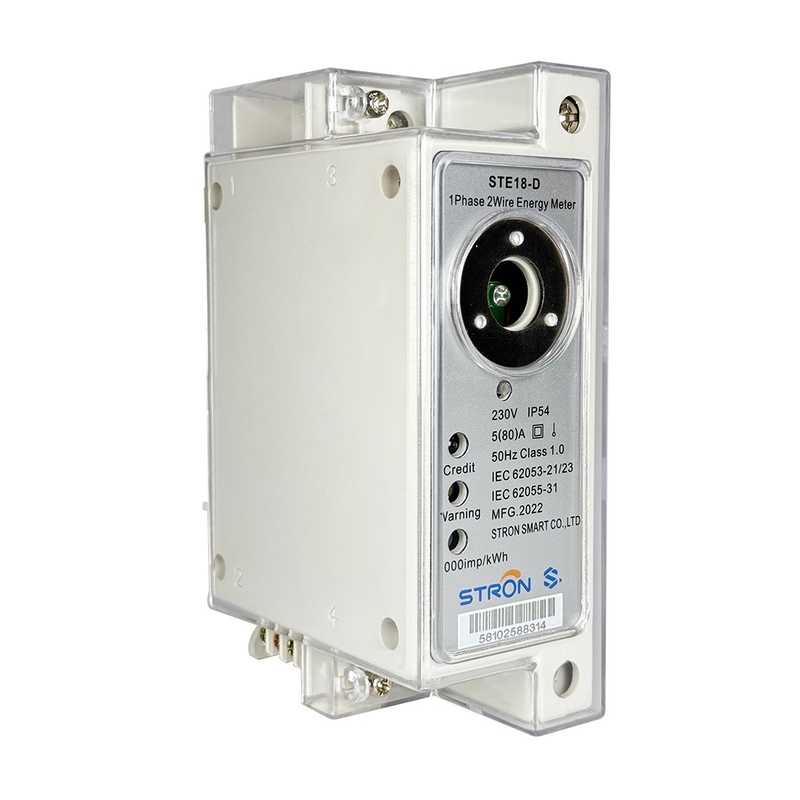

STD18-B is an STS standard compliant prepaid electricity meter, supports Din Rail mounting and pole mounting, consists of a small-sized meter and customer interface unit (CIU). It can be top up with Stronpay vending software with 20 digits token and communicate with CIU and AMI system.

The CIU is installed inside of user’s house when the meter is kept away from their reach in locked boxes or poles, they can use the CIU to check the data like Credit Remain, Total Purchased and Total Credit by inputting the short code.

Meter Dimension

Prepaid Din-Rail Single Phase Electricity Meter+CIU For Counting The Electricity Consumption 1

Basic Features

✽ STS standard and protocol.

✽ Meter recharged by inputting 20 digits TOKEN.

✽ Ingress protection IP54 waterproof.

✽ Anti-Tamper magnetic field protection.

✽ Real-time clock and low credit alarm.

✽ Event log and data can be stored for 10 years.

✽ Pay by mobile payment M-PESA, Alipay, MTN, Airtel, etc.

✽ The meter could communicate with AMI system through data concentrator.
