Name: Prepaid Anti Tamper Single Phase Energy Meter Ingress Protection IP54 Waterproof
Brand: Hunan Stron Smart Co., Ltd
SKU: STE18/STE38
Price: 463.90 USD
Availability: InStock

Home > Products > Smart Prepaid Electricity Meter >

Prepaid Anti Tamper Single Phase Energy Meter Ingress Protection IP54 Waterproof

Anti Tamper Single Phase Energy Meter

IP54 Waterproof Single Phase Energy Meter

STS Prepaid Single Phase Energy Meter

Place of Origin:

China

Brand Name:

stron

Certification:

STS

Model Number:

STE18/STE38

Request A Quote

Product Details

Protocal:

STS Standard

Waterproof:

IP54

Phase:

Single Phase

Accuracy:

Class 1

Display:

Digital

Working Temperature:

-25~70℃

Basic Current:

Maximum Current:

80A

Active Energy Constant:

1000imp/kWh

Frequency:

50-60HZ

Product Name:

Prepaid Energy Meter

Rated Voltage:

220-240V/3*220V

Standard:

STS Standard

Display:

LCD

Warranty:

2 Years

Warranty:

2 Years

OEM:

Support

Certificate:

ISO9001; ISO14001; STS Standard

Communication:

LORA-RF Supported

Vending Software:

Supported

Recharge Token Length:

20 Digits

Protection Class:

IP54

Battery Life:

8 Years

Current Range:

(5A/80A)/(10A/100A)

Starting Current:

(20mA)/(30mA)

Energy Constant:

(1000imp/kWh)/(400imp/kWh)

Measurement Accuracy:

Class 1.0

Measurement Accuracy:

Class 1.0

Mobile Payment Support:

M-PESA, Alipay, MTN, Airtel, Etc.

Overdraft Collection:

Daily/monthly Optional

Data Storage Duration:

10 Years

Anti-Tampering:

Both With Magnetic Field/cover-opening Detection; STE18-B Cuts Relay, STE38-G Shuts Valve When Triggered

Recharge Method:

(1. Stronpay Software; 2. 3rd-party/mobile Payment)plus 3. AMI System Remote Recharge)

Highlight:

Anti Tamper Single Phase Energy Meter

IP54 Waterproof Single Phase Energy Meter

STS Prepaid Single Phase Energy Meter

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiated

Packaging Details

Carton

Delivery Time

20-45days

Payment Terms

T/T

Supply Ability

20000pcs/month

STS Standard AMI Smart Meter with Alipay Payment Options Integration Solutions

Get Best Price

IP54 50HZ Smart Prepaid Electricity Meter Single Phase With STS Standard

Get Best Price

Video

80A Single Phase Digital Energy Meter , 230V Prepaid Electric Metre

Get Best Price

Video

Keyboard-style Smart Prepaid Electricity Meter with RF Reader and Load Control Function

Get Best Price

86-0731-22421066

Contact Now

Product Description

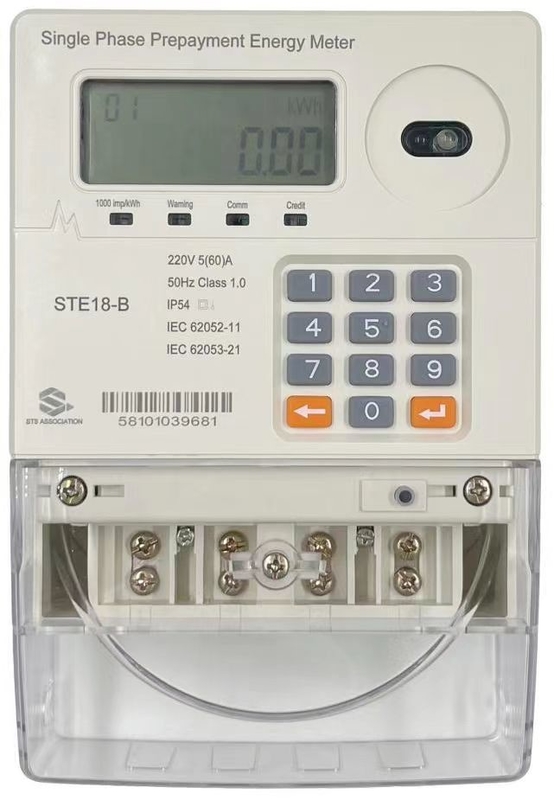

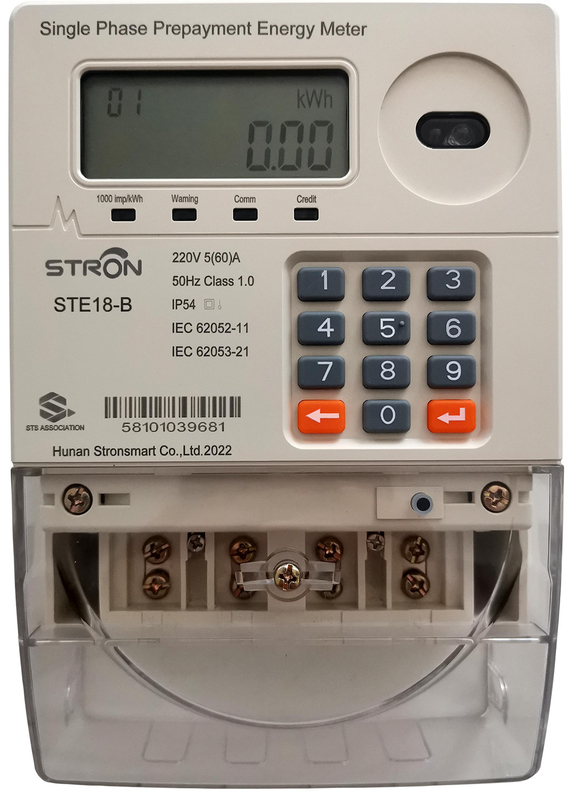

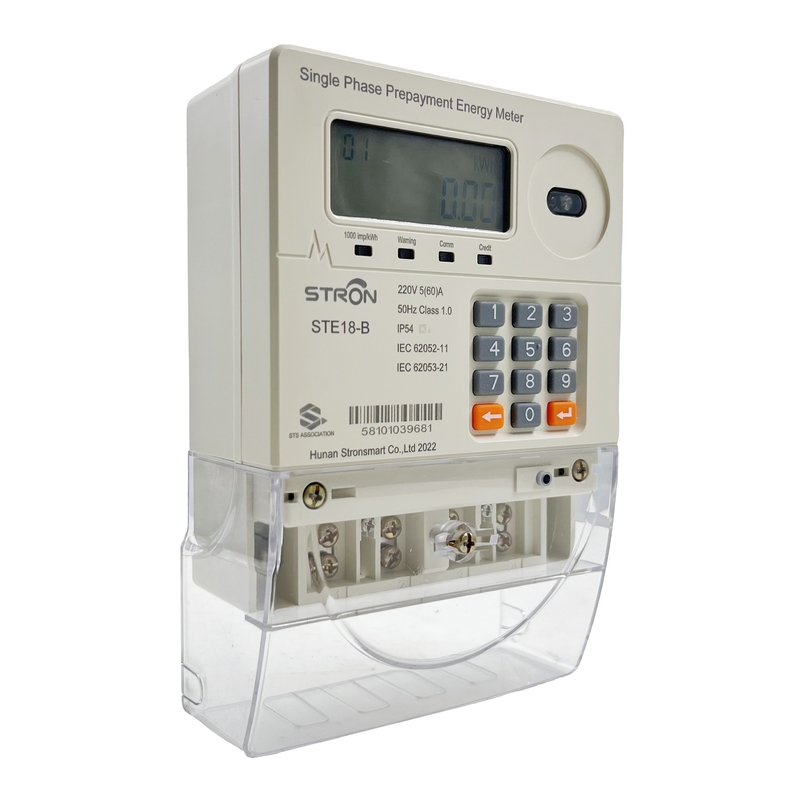

Ingress protection IP54 waterproof Prepaid Anti-Tamper Single Phase Energy Meter

STE18-A is keypad type prepaid electricity meter. It can be recharged with 20 digits recharge Token, which is generated by Stronpay vending software, then use the keypad of meter to enter the TOKEN. The credit data will be entered into the meter after the TOKEN being accepted.

This meter has excellent anti-tamper feature like terminal cover open detection sensor to help utility for revenue protection.

Main Features

Up to 8 years battery life
STS Standard
Real-time clock
Anti-Tamper Magnetic field protection
Ingress protection IP54 waterproof
Pay by mobile payment including M-PESA, Alipay, MTN, Airtel, etc.

Electrical Parameters

Nominal Voltage	230V
Working Voltage Range	70%~120%Un
Nominal Frequency	50-60Hz
Basic Current (Ib)	5A
Maximum Current (Imax)	80A
Starting Current (Ist)	20mA
Active Energy Constant	1000imp/kWh
Measurement Accuracy	Class 1.0
Power Consumption in Voltage Circuit	<2W <8VA
Power Consumption in Current Circuit	<1VA
Operation Temperature Range	-25℃-70℃
Storage Temperature Range	-40℃-85℃

Electric Magnetic Compatibility

AC Insulation Strength		4kV at 50Hz during 1min
Impulse voltage 1.2/50 us mains connections		8kV
Electrostatic Discharges	Contact discharge	8kV
	Air discharge	16kV
Electromagnetic RF Field	27MHz-500MHz	10V/m
	100KHz-1GHz	30V/m
Fast transient burst test		4kV
Protection		Class II

Meter Dimension

Function:

✽ Meter Recharge By Inputting TOKEN

✽ Active energy measurement

✽ MD(maximum demand measurement)

✽ Auto scroll mode display

✽ Build-in relay control

✽ Event log

✽ Low Credit Alarm

✽ Anti-Tamper Functions: Meter will automatically close the valve after detection of magnetic field and open cover event.

✽ Overdraft Collection:Electricity Overdraft can be collected day by day or month by month.

Two ways to recharge prepaid electricity meter

➯ Via local sales point or handheld mobile vending unit

➪ Via mobile phone

API: Application Program Interface, which is the agreement connecting the third party APP and our

Stronpay vending software.
