Name: DIN Rail Split Keypad Single Phase Prepaid Electricity Meter With CIU
Brand: Hunan Stron Smart Co., Ltd
SKU: STE18-D
Price: 463.90 USD
Availability: InStock

Home > products > Smart Prepaid Electricity Meter >

DIN Rail Split Keypad Single Phase Prepaid Electricity Meter With CIU

Single Phase Prepaid Electricity Mete

Prepaid Electricity Meter With CIU

DIN Rail Prepaid Electricity Meter

Place of Origin:

China

Brand Name:

Stron

Certification:

STS

Model Number:

STE18-D

Request A Quote

Product Details

Color:

Gray

Material:

Plastic

Certificate:

STS

Function:

Anti-Tamper

Protection:

IP54

Highlight:

Single Phase Prepaid Electricity Mete

Prepaid Electricity Meter With CIU

DIN Rail Prepaid Electricity Meter

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Carton

Delivery Time

15Days

Payment Terms

L/C, T/T, Western Union, MoneyGram

Supply Ability

10000/Month

Dual-Source Power (Grid/Generator)｜Mobile Payment Ready｜Auto Cutoff for Tampering｜10-Year Data Logging

Get Best Price

STS Standard Prepaid Split Keypad Single Phase Smart Energy Meter with LORA-RF module

Get Best Price

STE18-D Dinrail Mount Single Phase Split Electricity Meter with CIU

Get Best Price

Stron STS Standard Prepaid Split Three Phase Electricity Meter with CIU

Get Best Price

86-0731-22421066

Contact Now

Product Description

DIN-Rail Split Keypad Single Phase Prepaid Electricity Meter With CIU

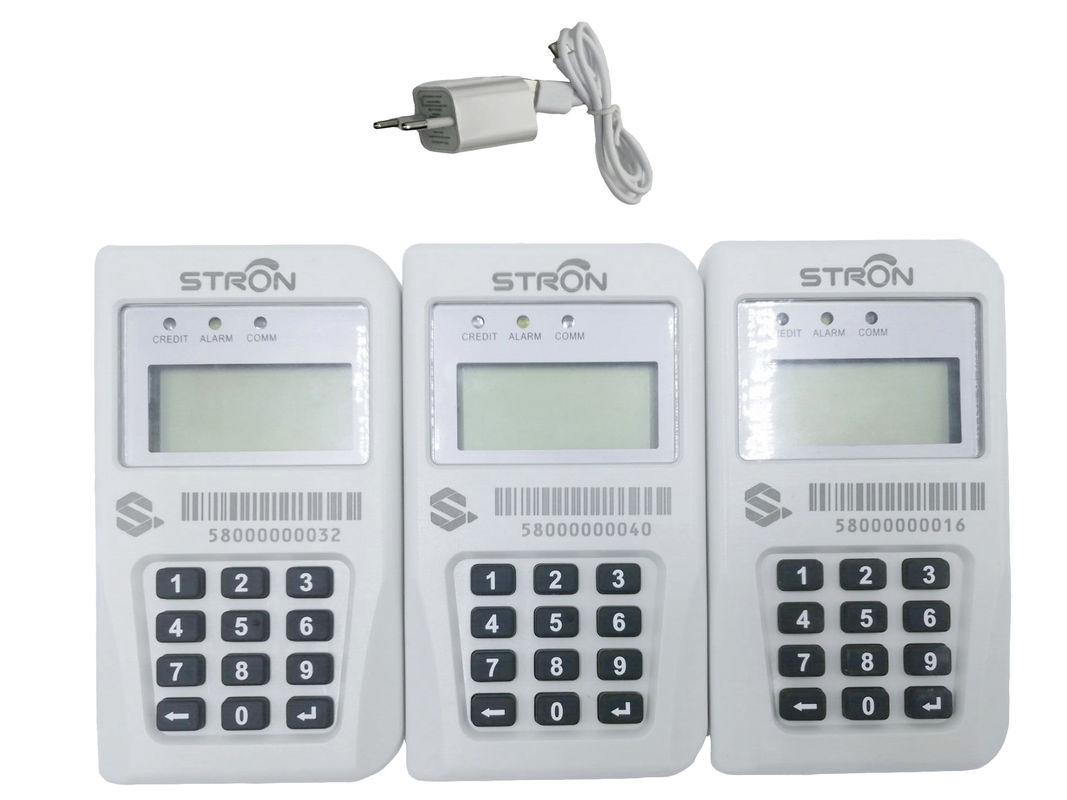

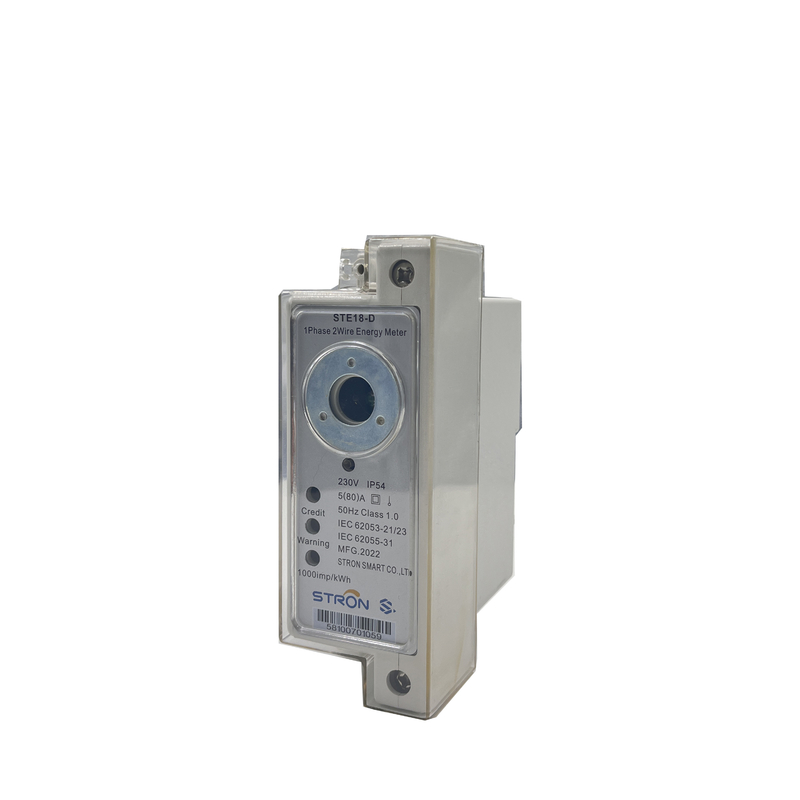

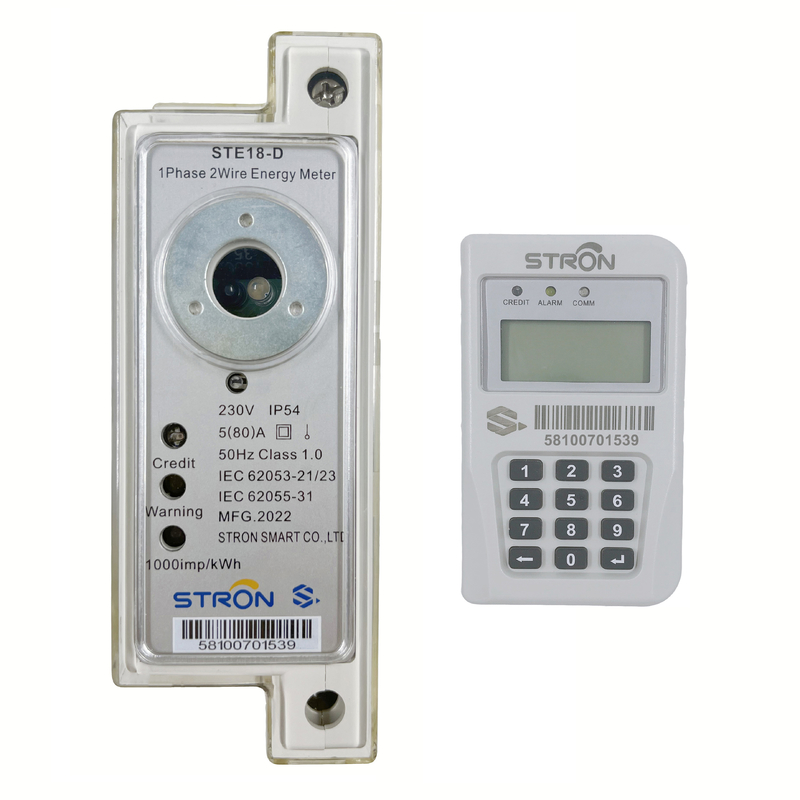

STE18-D operates with a Din Rail mounting and pole mounting accessories, consists of two parts. Acustomer interface unit (CIU), and a metering and control unit (MCU). A CIU is a keypad based display, to be installed within consumers homes wherever there is a plug point. A MCU is the main meter, installed away from consumer's home in a kiosk, meter box or a pole-mounted enclosure.

Application:

Counting the electricity consumption of users over a period of time.

Compliance with Standard:

✽ ISO 9001 ; ISO 14001

✽ STS Certificated

Basic Function:

✽ Meter Recharge By Inputting TOKEN

✽ Active energy measurement

✽ MD(maximum demand measurement)

✽ Auto scroll mode display

✽ Build-in relay control

✽ Event log

✽ Low Credit Alarm

Electrical Parameters

Nominal Voltage	230V
Working Voltage Range	70%~120%Un
Nominal Frequency	50-60Hz
Basic Current (Ib)	5A
Maximum Current (Imax)	60A
Starting Current (Ist)	20mA
Active Energy Constant	1000imp/kWh
Measurement Accuracy	Class 1.0
Power Consumption in Voltage Circuit	<2W <8VA
Power Consumption in Current Circuit	<1VA
Operation Temperature Range	-25℃-70℃
Storage Temperature Range	-40℃-85℃

Electric Magnetic Compatibility

AC Insulation Strength		4kV at 50Hz during 1min
Impulse voltage 1.2/50 us mains connections		8kV
Electrostatic Discharges	Contact discharge	8kV
	Air discharge	16kV
Electromagnetic RF Field	27MHz-500MHz	10V/m
	100KHz-1GHz	30V/m
Fast transient burst test		4kV
Protection		Class II

Stronpay PAYG Management System

Stronpay PAYG Software is a vending management system, it has three different versions can be choose: Web based version, Stand alone version and Hand held mobile vending unit. It has administrative operations such as customer and meter registration, vending, report.

DIN Rail Split Keypad Single Phase Prepaid Electricity Meter With CIU 0

How our PAYG work?
