Off Grid 6Ah Battery Pay As You Go Solar System With ABS Housing
Product Details:
Place of Origin: China
Brand Name: Stron
Certification: Lighting Global
Model Number: ST188
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Cartons
Delivery Time: 15-30 days
Payment Terms: T/T, Western Union
Supply Ability: 3000sets/month
Contact Now
Detailed Product Description
Application: Home, Commercial Output Voltage (v): DC 12V
Battery: 6-24Ah Warranty: 2 Years
Type: PAYG Solar Home System Vending Software: Web-based/Standalone
Color: Orange, Green Output Frequency: 50HZ/60HZ
Battery Type: LiFePo4 Battery Solar Panel Type: Poly Crystalline
High Light:

6Ah battery pay as you go solar system


ABS pay as you go solar system


6Ah battery off grid power generator

Pay As You Go Off-Grid Solar Home Power Generator DC Output With Radio&Torch&Bulbs&Mobile Charger

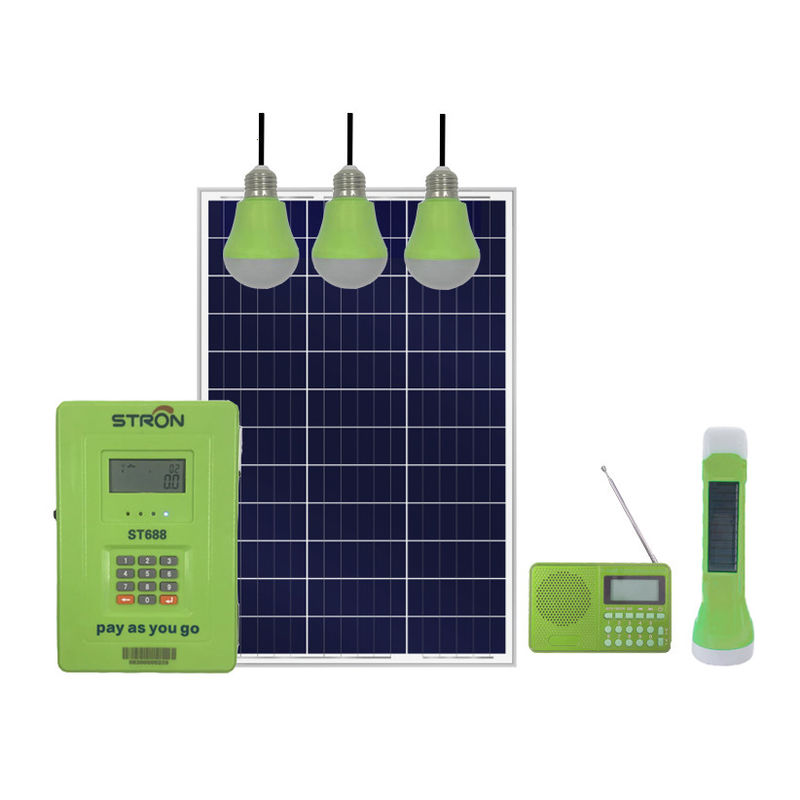

ST188 is a portable, environment friendly solar lighting kits. The solar controller is the key product of solar home system. It has outputs for LED light, DC TV,DC Fan, the USB for radio, torch and mobile phone charging. The keypad in the controller iis used to input the recharge Token, then users can use the power until the credit becomes zero.


This solar kits meet the lighting global quality standard, easy to install,top up and run. The high quality LiFePO4 batteries are able to be full charged eithin 4 hours under the sufficient sunlight. We also provide the solar vending software to manage the system and generate the recharge Token to recharge for users.




1×12.8V/6000mAh(LiFePO4) Contoller box

1×30W Poly Crystalline Solar Panel

3x 3W/300lm LED bulbs with 5M cables

1xRadio,3.7V 2000mAH Li-ion Battery

1x Torch 3.2V 400mAH Li-ion Battery

1x 4-in-1 Mobile phone charger cable


1. Plug-and-play easy operation solar home system

2. Bright LED bulbs for several rooms

3. Torch combined with 2 lighting points

4. Radio supports FM/AM/MP3 and can be charged by contorller box , Very convenient to carry around.

5. 2 USB ports for phone charging

6. Pay-as-you-go function available

Operation Temperature 0℃-60℃
Housing Material ABS Plastic
Output Ports

4 ports for Bulbs,4 ports for TV and Fan(12V/2A)

4 USB ports for charging(5V/2A)

Durability Tests

1. Switch and connector cycling

2. Physical ingress protection test

3. High temperture and low temperture test

4. Transport vibration test

5. Salt spray test

Warranty 2 years


Charging Time:

☀Battery: 3.5hrs under sufficient sunlight.

☀Radio: 4-6hrs

☀Torch: 5-7hrs


Seperately Running Time:

☀ LED Light: 25.6hrs for one light, 8.5hrs for 3 lights

☀ Radio: 5-7hrs after each full charging

☀ Torch: 4-8hrs after each full charging

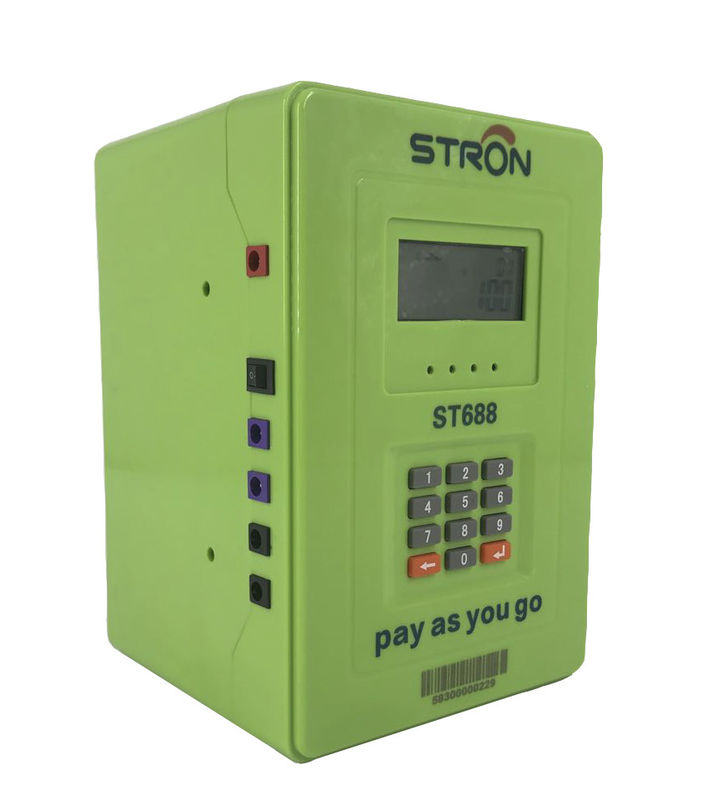

Solar Controller

System indicator lights Indicators for Charging, Credit and Battery with Red/Green signal On/off indicator for the controller
Top-up Keypad 0-9 keypad, delete button and Enter button
Outputs 4×LED light outputs, 2×USB output
Inputs 1×PV module input
1×PV module input Overvoltage, reverse voltage and short circuit protection
Operation Temperature 0℃-60℃
Housing Material ABS Plastic
Warranty 2 years

Off Grid 6Ah Battery Pay As You Go Solar System With ABS Housing 0


Vending Process

Recharge with Stronpay vending software at the sales point

Off Grid 6Ah Battery Pay As You Go Solar System With ABS Housing 1


Stronpay Vending Software


Stronpay Vending Software is a Window-based vending management system. It consists of Stronpay management server(CMS) and Stronpay management Client(CMC).


CMC provides administrative operations, such as customer and meter registration, vending, report. It can be run on an independent device in form of standalone software. Multiple clients can be connected to a single management server(CMS). CMC also allows multiple operators and access to system which is configured by the administrator.


Vending Software STS standard encryption web-based/standalone vending software
Recharge Token Printer Thermal Printer, Print TOKEN receipt
Handheld Vending Machine Vending APP in Android system include TOKEN printer
Language English/ French/ Arabic/ Portuguese


Vending Operation

☀ Login the web-based vending website by inputting the user name, company name and password.

☀ Register the solar number and customer information at the library center.

☀ Set the price fors for different customers

☀ Open an account to combine the meter,customer and price information

☀ Get the Token at the Top up center.

☀ Input the Token with keypad.

☀ Recharging completely.
