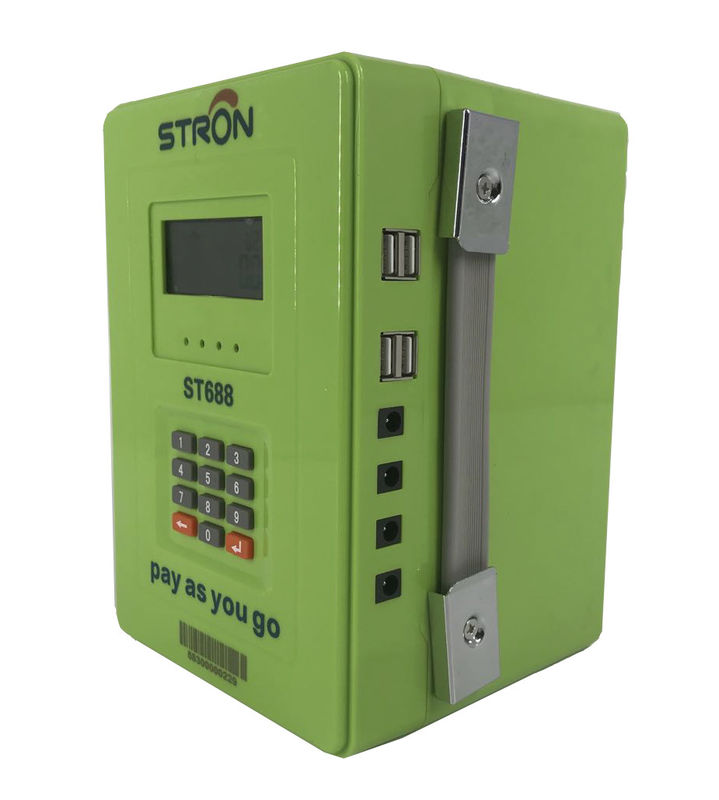

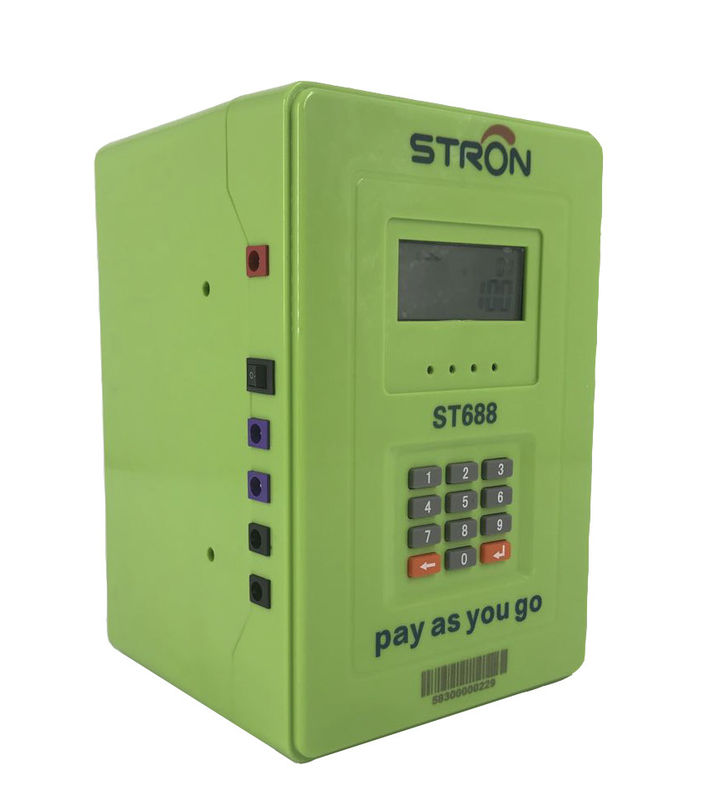

Pay As You Go Solar Controller LiFePO4 Battery DC Output For Home Appliances With Vending Software for M-PESA
This solar controller is the key product of solar home system. It has one PV module input, which can connect the solar panel and charge the batteries to run the appliances. The overvoltage, reverse voltage and short circuit protection make the solar controller be used safely. The 4 LED light outputs are able to light 4 bulbs at same time. The 2 USB output can charge the torch,radio and mobile phone conveniently. The keypad in the controller can input the recharge Token, then users can use the power until the credit becomes zero. There also have indicators for Charging, Credit and Battery with Red/Green signal On/off indicator for the controller.
Main Features
♛ Meet the Lighting Global Quality Standard;
♛ STS(StandardTransfer Specification) Compliant;
♛ Provide Stronpay Vending Software for free;
♛ Recharge by inputting 20 digitsToken;
♛ Batteries are able to be full recharged within 4 hours;
♛ Easy to install, top-up andrun;
♛ High quality with 2 years warranty.
Solar Controller
| System indicator lights | Indicators for Charging, Credit and Battery with Red/Green signal On/off indicator for the controller |
| Top-up Keypad | 0-9 keypad, delete button and Enter button |
| Outputs | 4×LED light outputs, 2×USB output |
| Inputs | 1×PV module input |
| 1×PV module input | Overvoltage, reverse voltage and short circuit protection |
Make 30W solar panel and 76.8Wh batteries for example:
| Recharging Time | |
| Battery | 3.5hrs under sufficient sunlight |
| Radio | 4-6hrs under sufficient sunlight |
| Torch | 5-7hrs under sufficient sunlight |
| Separately Running Time | |
| Lights | 25.5hrs for one light |
| 8.5hrs for three lights | |
| Radio | 4-6hrs after each full charge |
| Torch | 5-7hrs after each full charge |
Durability Tests:
1. Switch and connector cycling
2. Physical ingress protection test
3. High temperture and low temperture test
4. Transport vibration test
5. Salt spray test
| Operation Temperature | 0℃-60℃ |
| Housing Material | ABS Plastic |
| Output Ports |
4 ports for Bulbs,4 ports for TV and Fan(12V/2A) 4 USB ports for charging(5V/2A) |
| Warranty | 2 years |
Vending Process
Recharge with Stronpay vending software at the sales point
Stronpay Vending Software
| Vending Software | STS standard encryption web-based/standalone vending software |
| Recharge Token Printer | Thermal Printer, Print TOKEN receipt |
| Handheld Vending Machine | Vending APP in Android system include TOKEN printer |
| Language | English/ French/ Arabic/ Portuguese |
Vending Operation
☀ Login the web-based vending website by inputting the user name, company name and password.
☀ Register the solar number and customer information at the library center.
☀ Set the price fors for different customers
☀ Open an account to combine the meter,customer and price information
☀ Get the Token at the Top up center.
☀ Input the Token with keypad.
☀ Recharging completely.
