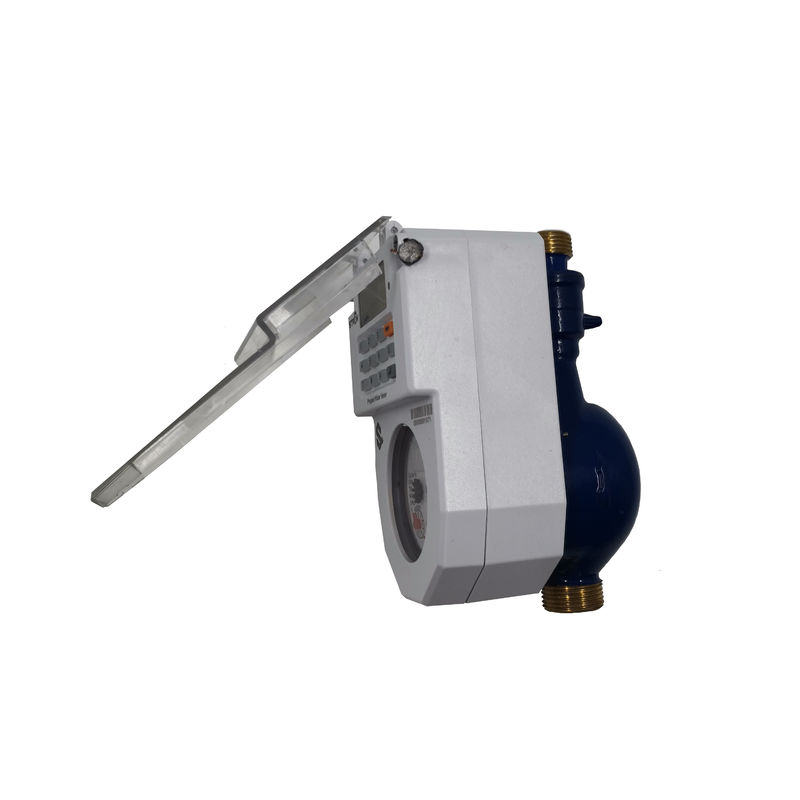

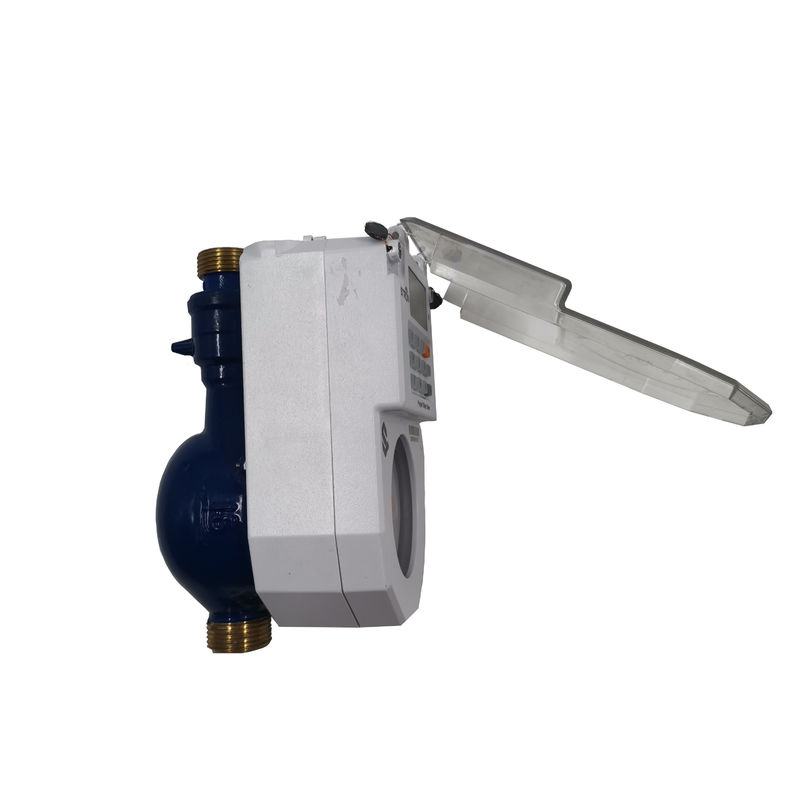

Name: Moisture Proof 165mm Length Prepaid Water Meter With Automatic Valve
Brand: Hunan Stron Smart Co., Ltd
SKU: STW36-A
Price: 60.00 USD
Availability: InStock

Home > products > Prepaid Water Meter >

Moisture Proof 165mm Length Prepaid Water Meter With Automatic Valve

165mm length prepaid water meter

165mm length residential water meter

moisture proof prepaid water meter

Place of Origin:

Hunan

Brand Name:

Stron

Certification:

STS

Model Number:

STW36-A

Request A Quote

Moisture Proof 165mm Length Prepaid Water Meter With Automatic Valve

Product Details

Material:

Brass Body

Type:

Prepaid Water Meter

Size:

15-25mm

Color:

White And Blue

Feature:

Long Life

Application:

Home

Function:

Automatic Valve Control

Anti-tamper:

Yes

Step Tariff:

Yes

Software:

Stronpay

Highlight:

165mm length prepaid water meter

165mm length residential water meter

moisture proof prepaid water meter

Payment & Shipping Terms

Minimum Order Quantity

50pcs

Price

Negotiable

Packaging Details

carton 255*145*125mm

Delivery Time

15 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

5000pcs per Month

STS Standard Smart keypad type anti-tamper Prepaid Water Meter

Get Best Price

STS Standard Keypad type Prepaid smart Water Meter

Get Best Price

STS Standard Smart keypad type automatically valve controlled Prepaid Water Meter

Get Best Price

STS Smart automatically valve controlled anti-tamper Prepaid Water Meter

Get Best Price

86-0731-22421066

Contact Now

Product Description

STS Multi-jet Keypad Prepaid Water Meter With Automatic Valve IP68

Product introduction

The STW36-A is an STS standard compliant, keypad type, automatically valve controlled prepaid water meter. The integrated keypad is offered to enter recharge TOKEN and check information by short codes. Pay as you go function and excellent anti-tamper feature like magnetic field protection to help utilities for revenue water protection and consumer management.

It has functions of real time display,anti-tamper magnetic field protection,step price setting,automatic non-return valve,low power consumption of battery,mobile payments with API integrated is available.It has certificated with STS,ISO 9001,ISO 14001,ISO 4046.

Characteristics and Functions

●Valve-control water meters are multi-jet.

●Ball valve adopted,motor-driven.

●It could be used as keypad water meter.

●Fully sealed installation of modules,secure and reliable.

●Ingress IP68 waterproof protection

●Up to 8 years battery life

●Automatic valve controlling

●STS standard

●Real time o-clock

●Utilities can set step price into meter on request

●Anti-Tamper Magnetic field protection

●RF-LoRa communication(optional)

●Pay by mobile payment M-PESA, Alipay, MTN, Airtel, etc

Technical Parameters of different size

Size	DN15 1/2”	DN20 3/4”	DN25 1”
Length(L)	165/190	190	225/260
Width(W)	99	99	103
Height(H)	104	106	114
Connecting Thread	G3/4B	G1B	G1-1/4B
Overload flow rate Q4	3.13	5	7.87
Permanent flow rate Q3	2.5	4	6.3
Transitional flow rate Q2	0.04	0.064	0.1
Minimum flow rate Q1	0.025	0.04	0.063
Ratio ”R” Q3/Q1	100	100	100

Features

✽ Maximum working pressure: 16 Bar

✽ Maximum pressure loss: 0.6 Bar

✽ Maximum reading: 99999

✽ Working temperature: <50℃

✽ Error: Q1≤Q≤Q2 5%;

Q2≤Q≤Q4 2%

Meter Dimension

Cautions

1.After replacing the battery,user must close the moisture-proof cover and tighten the screw.

2. Check the operation of the smart water meter regularly, and pay attention to anti-freezing in winter.

3. For those installed in the pipeline but have not been delivered for use or do not use water for a long time (more than one week), please close all the valves of the smart water meter.

4. If the electronic display of the smart water meter is inconsistent with the wheel or the smart water meter has bugs, the meter shall be measured by the wheel.
