IP68 Electronic Smart Water Meter , 16Bar STS Water Meter

IP68 Electronic Smart Water Meter , 16Bar STS Water Meter

16Bar electronic smart water meter

IP68 electronic smart water meter

16Bar sts water meter

Place of Origin:

Hunan

Brand Name:

Stron

Certification:

STS

Model Number:

STW36-A

Contact Us
Request A Quote
Product Details
Material:
Brass Body
Type:
Prepaid Water Meter
Size:
15-25mm
IP Rating:
IP68
Feature:
Automatic Valve
Application:
Home
Function:
Measuring Water Consumption
AMR/AMI:
Yes
Step Tariff:
Yes
Software:
Stronpay
Highlight:

16Bar electronic smart water meter

,

IP68 electronic smart water meter

,

16Bar sts water meter

Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
carton 255*145*125mm
Delivery Time
15 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000pcs per Month
Product Description

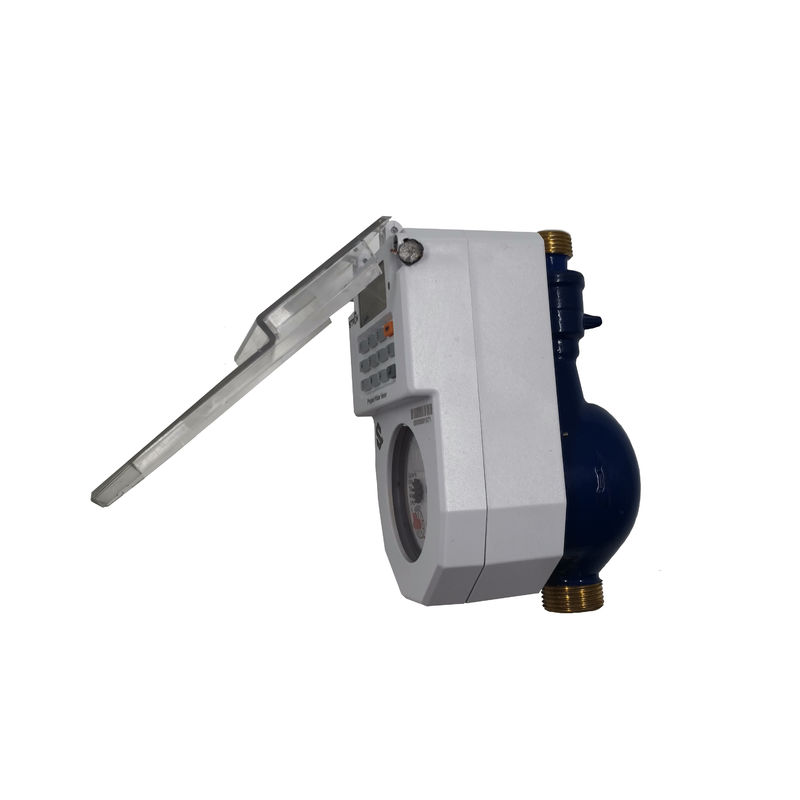

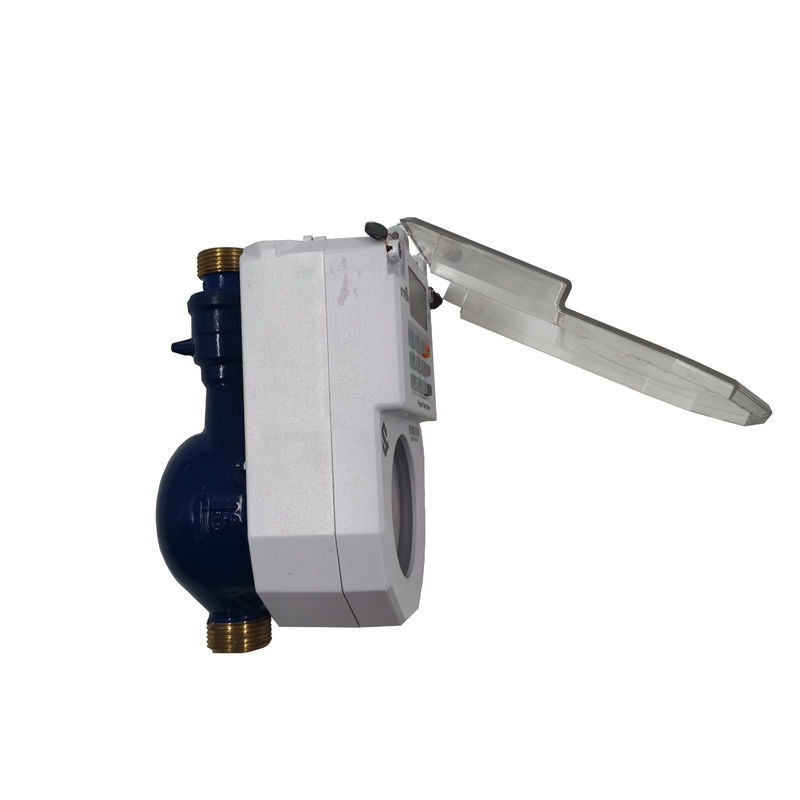

STS Multi-jet Prepaid Keypad Water Meter With Automatic Valve



Product introduction



The STW36-A is an STS standard compliant, keypad type, automatically valve controlled prepaid water meter. The integrated keypad is offered to enter recharge TOKEN and check information by short codes. Pay as you go function and excellent anti-tamper feature like magnetic field protection to help utilities for revenue water protection and consumer management.



As customers have higher demand of products;,the battery will also have higher requirements. So we went through all kinds of tests and selected the most suitable battery for our product. Our batteries are high in energy with Long service life that can reach up to 8 years; High power bearing capacity; Self discharge rate is very low; Light weight, high temperature adaptability, and explosion-proof, green environmental protection. Then our Pay as You Go function can also solve the problem of water charge collection and management. Even if the user's economy is not too rich, but also at any time to charge at any time, do not need to pay a lump sum for a long time of water charges and feel troubled; And suppliers don't have to spend a lot of money and manpower to urge customers to pay their water bills because they haven't paid. This benefits both the user and the supplier.



Certificates



ISO 9001,ISO 14001,ISO 4046.



Characteristics and Functions



●Valve-control water meters are multi-jet.

●Ball valve adopted,motor-driven.

●It could be used as keypad water meter.

●Fully sealed installation of modules,secure and reliable.

●Ingress IP68 waterproof protection

●Up to 8 years battery life

●Automatic valve controlling

●STS standard

●Real time o-clock

●Utilities can set step price into meter on request

●Anti-Tamper Magnetic field protection

●RF-LoRa communication(optional)

●Pay by mobile payment M-PESA, Alipay, MTN, Airtel, etc





Technical Parameters of different size



Size DN15 1/2 DN20 3/4 DN25 1
Length(L) 165/190 190 225/260
Width(W) 99 99 103
Height(H) 104 106 114
Connecting Thread G3/4B G1B G1-1/4B
Overload flow rate Q4 3.13 5 7.87
Permanent flow rate Q3 2.5 4 6.3
Transitional flow rate Q2 0.04 0.064 0.1
Minimum flow rate Q1 0.025 0.04 0.063
Ratio ”R” Q3/Q1 100 100 100



Features



✽ Maximum working pressure: 16 Bar

✽ Maximum pressure loss: 0.6 Bar

✽ Maximum reading: 99999

✽ Working temperature: <50℃

✽ Error: Q1≤Q≤Q2 5%;

              Q2≤Q≤Q4 2%



Meter Dimension

IP68 Electronic Smart Water Meter , 16Bar STS Water Meter 0



How to input recharge TOKEN by keypad

1.Input 20 digits TOKEN into the keypad.
2.Confirm the number on the LCD.
3.If token input is not correct, please use the keypad "back button" to delete.
4.After inputting 20 digits TOKEN, please click "Enter button", so that the token is confirmed
5.If token input is correct, the LCD will display "accept" and buying water succeeds.
6.If token input is not correct, the LCD will display "reject".
