Name: CE ABS Single Phase Electric Meter Box Pole Mounted Household Electrical Devices
Brand: Hunan Stron Smart Co., Ltd
SKU: STE18-B
Price: 463.90 USD
Availability: InStock

Home > products > Household Electrical Devices >

CE ABS Single Phase Electric Meter Box Pole Mounted Household Electrical Devices

ABS single phase electric meter box

CE single phase electric meter box

CE pole mounted meter box

Place of Origin:

China

Brand Name:

Stron

Certification:

ISO9001/CE

Model Number:

STE18-B

Request A Quote

CE ABS Single Phase Electric Meter Box Pole Mounted Household Electrical Devices

Product Details

Phase:

Single Phase

Material:

PC+ABS

Installation Location:

Indoor/outdoor

Protection Class:

IP65

Installation Type:

Wall Mounted/polc Mounted

Life Expectancy:

≥30 Years

Highlight:

ABS single phase electric meter box

CE single phase electric meter box

CE pole mounted meter box

Payment & Shipping Terms

Minimum Order Quantity

100

Price

Negotiable

Packaging Details

Cartons

Delivery Time

15-30days

Payment Terms

T/T, Western Union

Supply Ability

5000pcs/month

IP65 Waterproof LED Wall Lamps Solar Sensor Lights For Countyard

Get Best Price

IP65 Bright LED Street Lamps Solar Sensor Lights For Countyard

Get Best Price

Body Sensitive Countyard LED Lamps Split Solar Sensor Lights Waterproof

Get Best Price

Courtyard Solar Outdoor Wall Lamps 100LED Body Induction Corridor Lights

Get Best Price

86-0731-22421066

Contact Now

Product Description

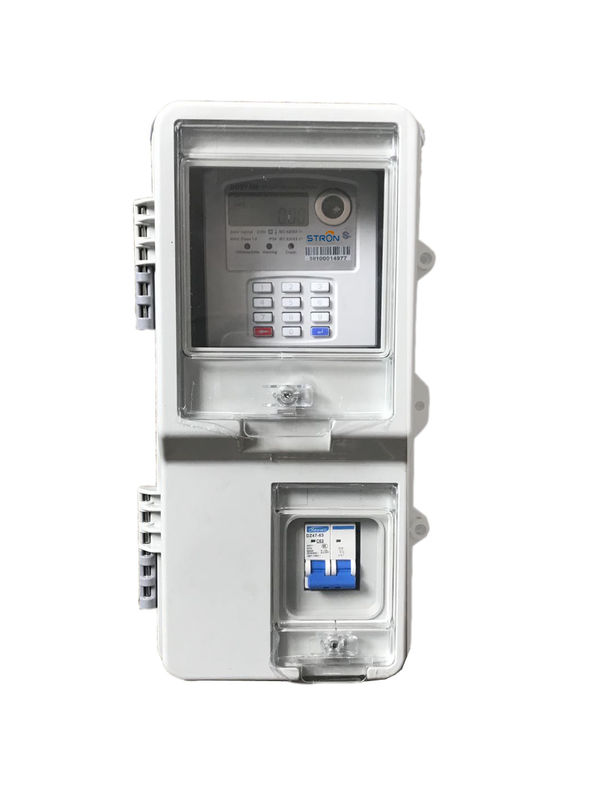

High Quality Prepaid single phase Electricity Meter Box/Enclosure for Electricity Meter Protection

This meter box is a multi-functional meter box for single phase energy meter. It can be pole mounted and wall mounted. The meter box can accommodate one unit of BS type single phase meter.
It has high protection degree for outdoor mounting and security sealing provision. Independent transparent window for meter reading and breaker operation, both with sealing provision. It has excellent protection to electricity meter.

Technical Specification

1	Installation Network:	LV: AC220V,AC380V
2	Installation type:	wall mounted/polc mounted
3	Installation location:	Indoor/outdoor
4	Frequency:	50Hz or 60Hz
5	Main busbar rated short time withstand current low:	30kA
6	Insulation resistance:	≥20MΩ
7	Rated insulation voltage UI:	800V
8	Material:	PC+ABS
9	Protection Class:	IP65
10	Life Expectancy:	≥30 years
11	Main busbar rated current In:	10A~250A
12	Dimension(LxWxD):	209.5x400x131mm

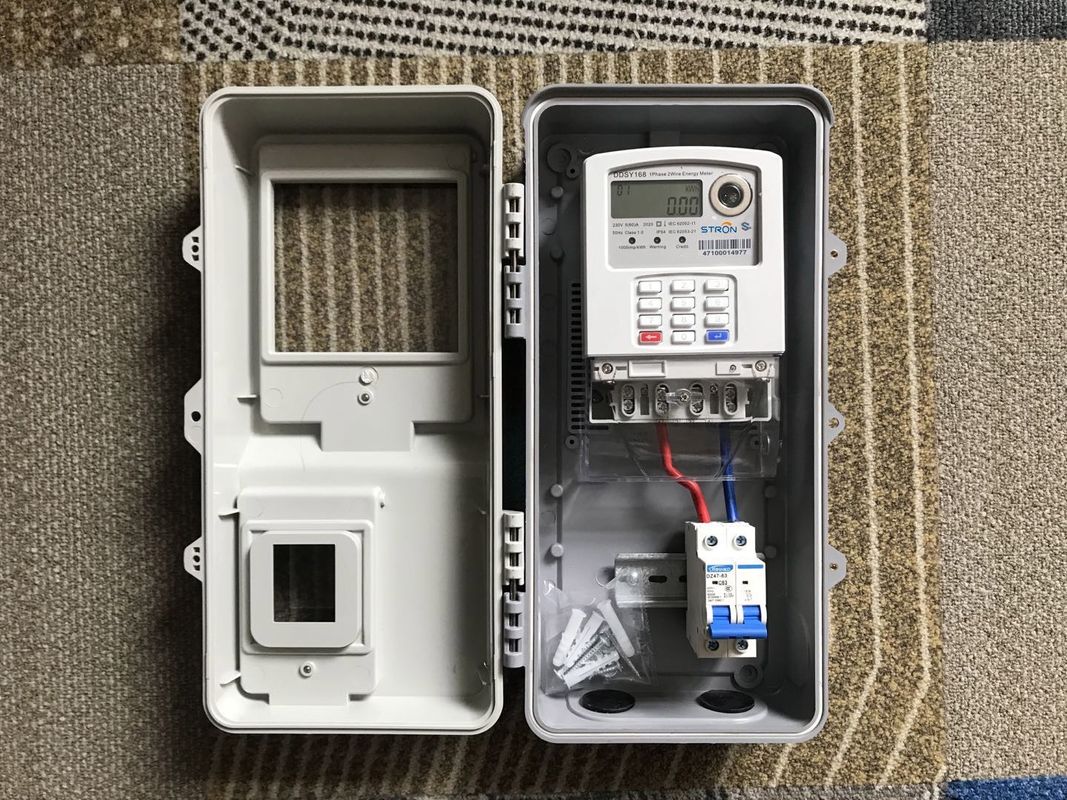

Installation Instruction

CE ABS Single Phase Electric Meter Box Pole Mounted Household Electrical Devices 0

Meter leakage protection circuit breaker selection

Items	Meter Current	Rated Current	Residual Operating Current	Poles
1	5(45)A/5(60)A	63A	30mA ,50mA 100mA ,300mA ,500mA	1P+N 2P
2	5(80)A	80A
3	5(100)A	100A

Demension

Packaging

Item	Meter Box					carton size			Qty/carton
1	Single phase electricity meter box					500425630mm			12pcs

CE ABS Single Phase Electric Meter Box Pole Mounted Household Electrical Devices 2
