Name: STS Split Water Meter , DN25 Pay As You Go Water Meter
Brand: Stron
SKU: STW36-B

STS Split Water Meter , DN25 Pay As You Go Water Meter

Product Details:

Place of Origin:	Hunan
Brand Name:	Stron
Certification:	STS
Model Number:	STW36-B

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiable
Packaging Details:	carton 255145125mm
Delivery Time:	15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs per Month

Contact Now

Detailed Product Description

Material:	Brass Body	Type:	Split Prepaid Water Meter
Inlet:	DN15/DN20/DN25	IP Rating:	IP68
Feature:	Long Life	Application:	Measuring Water Consumption
Function:	Overdraft Collection	Warranty:	2 Years
Color:	White	Input:	Keypad
Communication:	LORA-RF ( Optional）
High Light:	STS split water meter , DN25 split water meter , DN25 pay as you go water meter

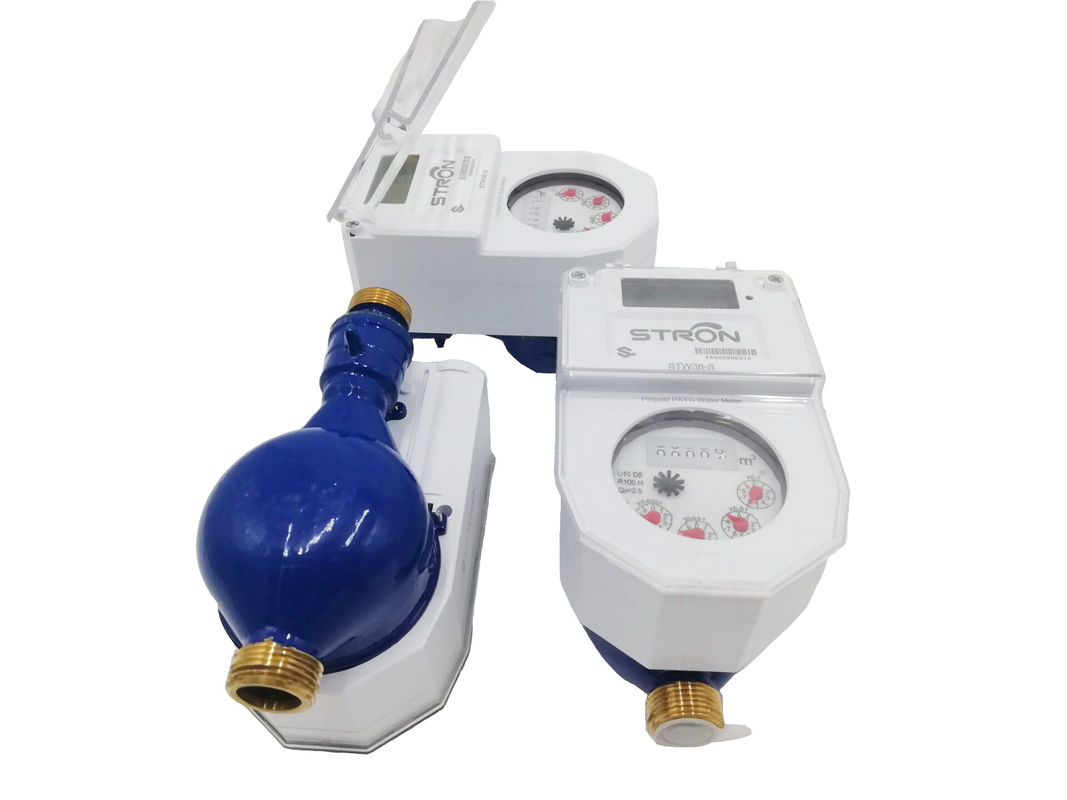

Smart Prepaid Pay as you go prepaid Split Water Meter

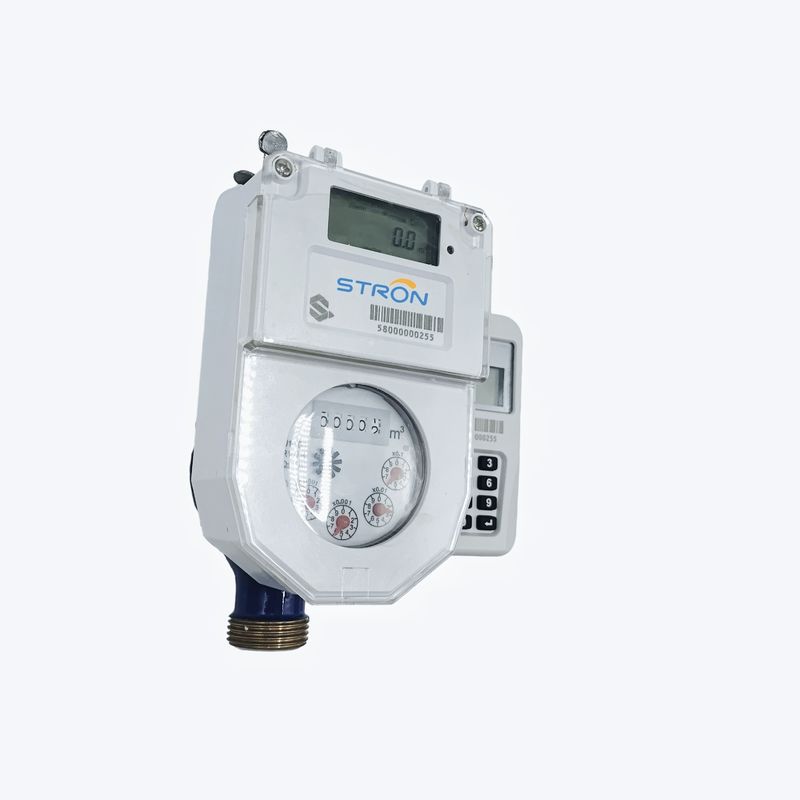

The STW36-B is an STS Standard compliant, keypad type, automatically valve controlled Multi-jet prepaid water meter. The integrated keypad is offered to enter recharge TOKEN and check information by short codes. Pay as you go function and excellent anti-tamper feature like Magnetic field protection to help utilities for Revenue water protection and consumer management.

The traditional piston water meter has many disadvantages, such as:
1.Always Blocked by muddy water
2.Piston Stuck in muddy water
3.High pressure loss >0.1Mpa
4.Accuracy is getting worse after one year running
Compared with traditional water meters, our multi-jet water meters have the following advantages:
1.Running Normally in muddy water
2.Muti jet struction never stuck in water
3.Low pressure loss <0.06Mpa
4.Accuracy always better after 10years

Then our Pay as You Go function can also solve the problem of water charge collection and management.Even if the user's economy is not too rich, but also at any time to charge at any time, do not need to pay a lump sum for a long time of water charges and feel troubled;And suppliers don't have to spend a lot of money and manpower to urge customers to pay their water bills because they haven't paid.This benefits both the user and the supplier.

Features:

1. Ingress IP68 waterproof protection

2. Up to 8 years battery life

3. Automatic valve controlling

4. STS standard

5. Real time o-clock

6. Utilities can set step price into meter on request

7. Anti-Tamper Magnetic field protection

8. RF-LoRa communication(optional)

9. Pay by mobile payment M-PESA, Alipay, MTN, Airtel, etc

Metrological Parameters of different size

Size		DN15mm 1/2”	DN20mm 3/4”	DN25mm 1”
Overload flow rate Q4		3.13	5	7.87
Permanent l flow rate Q3		2.5	4	6.3
Transitional flow rate Q2		0.04	0.064	0.1
Minimum flow rate Q1		0.025	0.04	0.063
Ratio ”R” Q3/Q1		100	100	100
Maximum working pressure		16Bar	16Bar	16Bar
Maximum pressure loss		0.6Bar	0.6Bar	0.6Bar
Maximum reading		99999	99999	99999
Max temperature		50℃	50℃	50℃
Error	Q1≦Q≦Q2	5%	5%	5%
Error	Q2≦Q≦Q4	2%	2%	2%

Basic Functionality

Function	Details
Prepayment	STS Standard, recharge by input 20digits TOKEN
Low credit alarm	Alarm value can be set by inputting corresponding TOKEN
Prepaid and post-paid switch	Meter can be switch to prepaid mode or post-paid mode
Non-return valve	Non-return valve inside for preventing back-flow
Anti-tamper	Meter will automatically close the valve after detection of magnetic field and open cover event
Step Tariff	Step Tariff can be set by inputting corresponding TOKEN
Overdraft Collection	Non- Revenue water (Overdraft) can be collected day by day or month by month
Communication	The meter is available with AMI system through LORA RF or Bluetooth 4.0 on request
Information Inquiry	Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code
Liquid Crystal Display
