Place of Origin:
China
Brand Name:
Stron
Certification:
DLMS
Model Number:
ST368

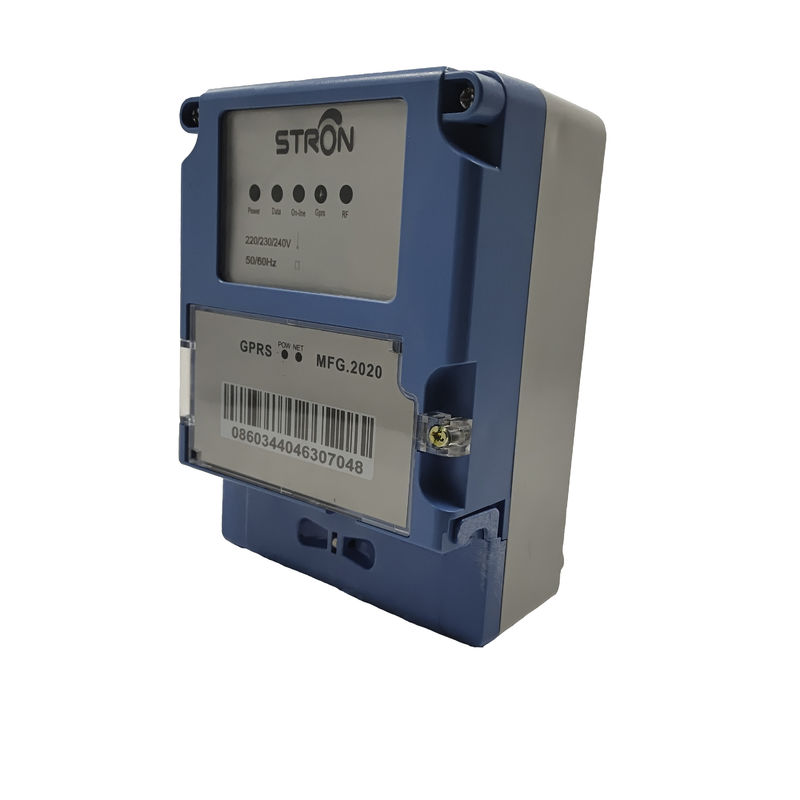

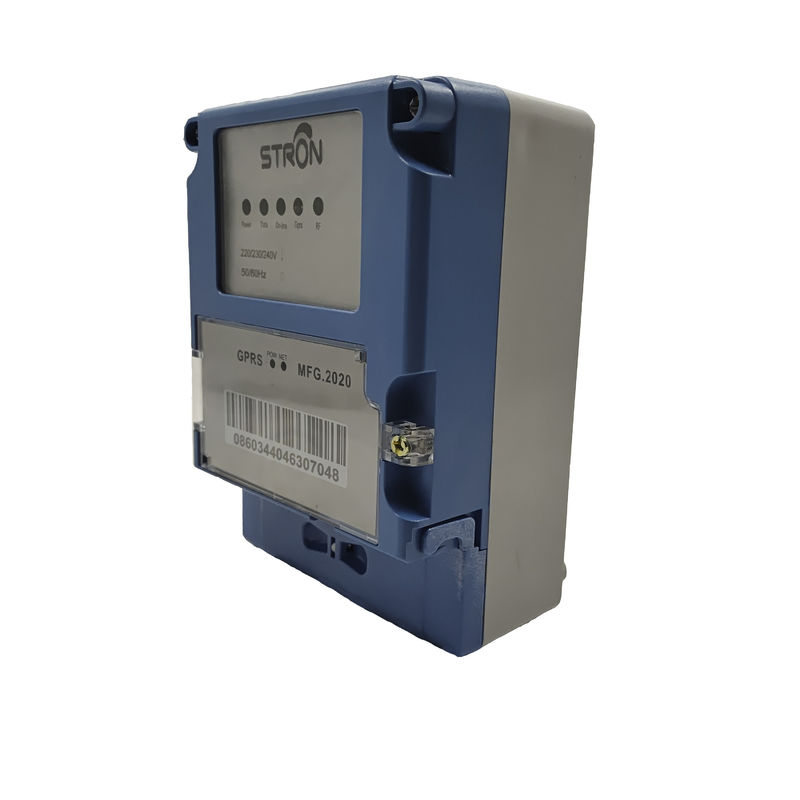

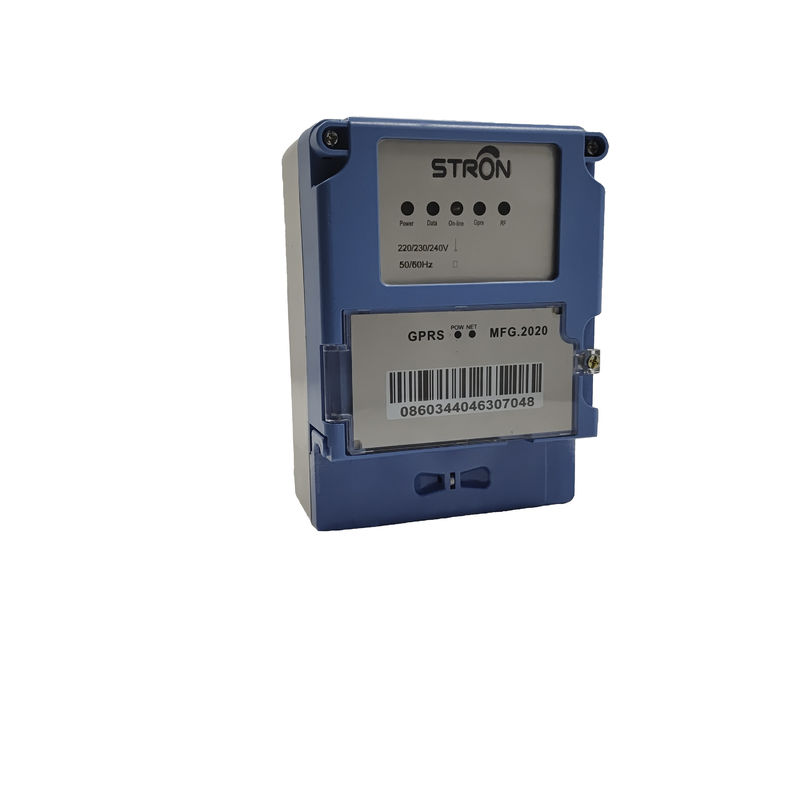

Smart Data Concentrator Unit DLMS/COSEM standard compliant LED Display
As the gateway between metering devices and AMR/AMI systems, the ST368 Smart Data Focused on Intelligent Metering Applications creates two modes of communication from metering points to AMR/AMRI systems, performing task setup, data acquisition, data transmission and storage, metering management, GPRS information, task execution, and RF network management.
The ST368 effectively utilizes RS485, RF-LORA media for downlink communication to smart meters and GPRS, 3G, DSL and fiber uplink communication.
Main Features
1. DLMS/COSEM standard compliant
2. RS485/RF-LORA downlink to smart meters
3. GPRS/3G/DSL uplink communication with a head-end AMR/AMI system
4. Data collection include total consumption/ historical daily & monthly consumption
5. Meter parameter/ status/ Real-time data reading
6. Tamper event record and upload automatically
7. Easy to install due to BS mounting
Data Concentrator Unit Parameters
|
Working Voltage
|
160V-300V
|
Frequency
|
45-65Hz
|
|
Working Temperature
|
-40℃-+80℃
|
Humidity Requirement
|
95%
|
|
Display
|
LED
|
Built-in Infrared Port
|
IEC62056-21
|
|
Communication Module
|
GPRS/RF-LORA
|
RS485 Port
|
115200bps
|
|
Ethernet Port
|
TCP Protocol
|
Communication Protocols
|
DLMS/COSEM
|
|
Weight
|
0.8KG
|
Protection Class
|
IP54
|
|
Dimension
|
160x112x58mm
|
Non-volatile Memory Capacity
|
128/256MB
NANDFLASH
|
Dimension
Certificate
