Name: IP68 Brass Body Split Water Meter , DN25 Water Watch Prepaid Meters
Brand: Hunan Stron Smart Co., Ltd
SKU: STW36-B
Price: 55.00 USD
Availability: InStock

Home > products > Smart Water Meter >

IP68 Brass Body Split Water Meter , DN25 Water Watch Prepaid Meters

IP68 brass body split water meter

water watch prepaid meters

DN25 water watch prepaid meters

Place of Origin:

Hunan

Brand Name:

Stron

Certification:

STS

Model Number:

STW36-B

Request A Quote

IP68 Brass Body Split Water Meter , DN25 Water Watch Prepaid Meters

Product Details

Material:

Brass Body

Type:

Prepaid Cold Water Meter

Size:

DN15/DN20/DN25

Waterproof:

IP68

Feature:

Class B

Working Temperature:

0-50℃

Function:

Automatic Valve Control

Warranty:

2 Years

Battery Replacement:

Support

Communication:

RF-LoRa

Highlight:

IP68 brass body split water meter

water watch prepaid meters

DN25 water watch prepaid meters

Payment & Shipping Terms

Minimum Order Quantity

50pcs

Price

Negotiable

Packaging Details

carton 255*145*125mm

Delivery Time

15 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

5000pcs per Month

Cold Water Meter 0-40 C STS Standard Smart Water Meter with 4-M16/8-M16/8-M16/8-M20 Connecting Bolts

Get Best Price

Plastic Smart Water Meter with Automatic Valve Control and 80 Flow Turndown Performance

Get Best Price

80 Flow Turndown Continuous Water Monitoring Equipment for Temperature 0C-50C Monitoring and Analysis in Industrial Settings

Get Best Price

Video

NB-IOT Communication Smart Water Meter for Communication Automatic Valve Control 0-40 C Cold Water Meter

Get Best Price

86-0731-22421066

Contact Now

Product Description

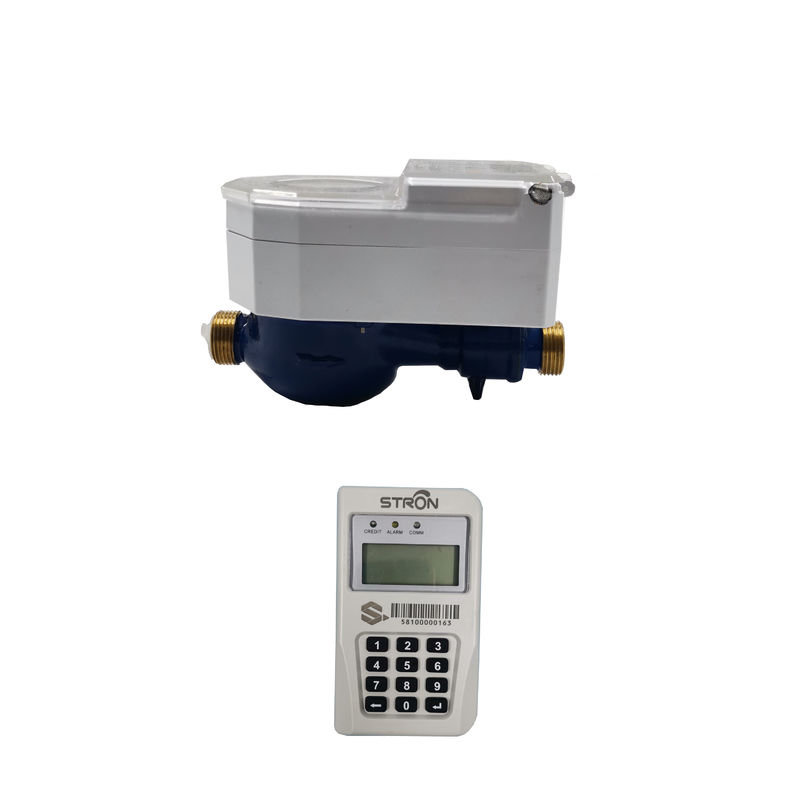

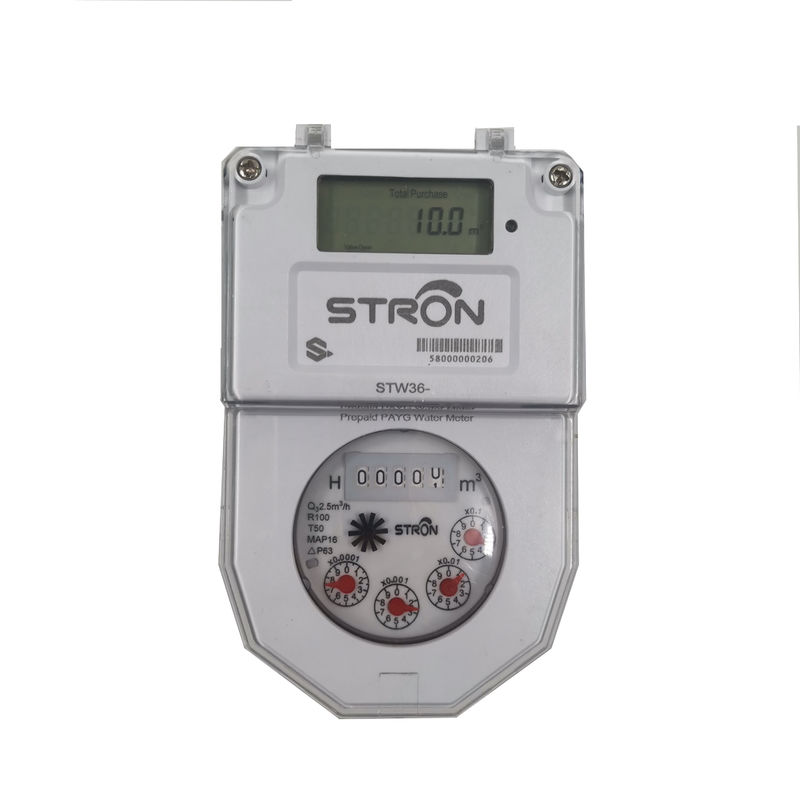

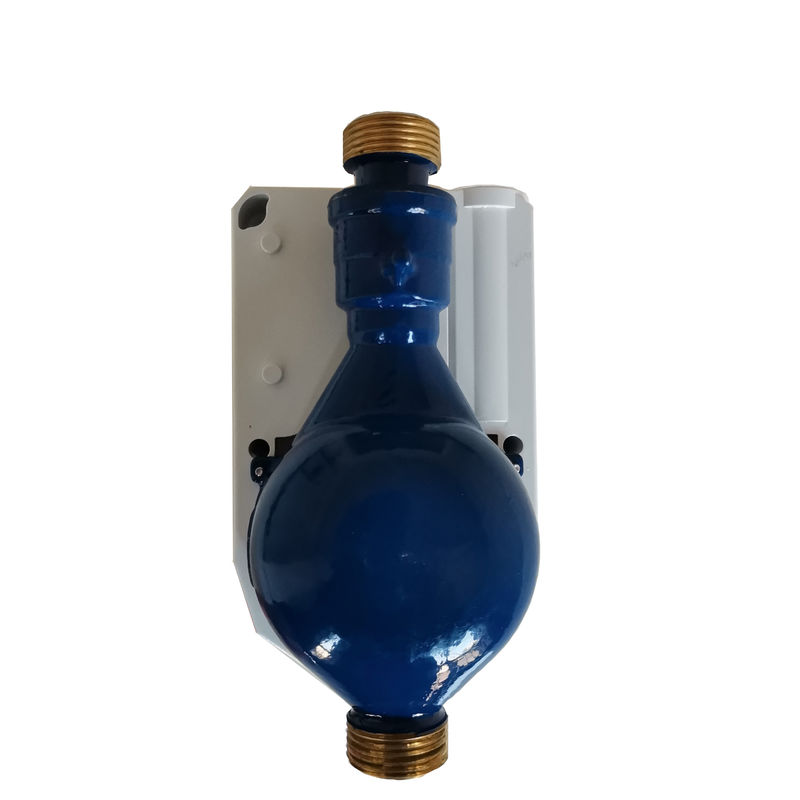

STS Class B Split Keypad Prepaid Water Meter With CIU

Product introduction

The STW36-B is an STS standard split keypad prepaid water meter with CIU.This prepaid type has a function of pay as you go,if credits remains 0 in the meter,people must recharge first to get water.IP68 waterproof means it can be installed outside no matter rainy or sunny.Step price can be set by utility into meter on request.Anti-tamper magnetic filed protection can detect tamper even so as to help utility better revenue water and manage consumer.By inputting short code with CIU,TOKENS can be used to recharge and check information. This CIU is RF-LoRa module inside to have a perfect advantage of remote communication.

Certificates

ISO 9001/ISO 14001/ISO 4046/STS

Metrological parameters of different size

Size	DN15 1/2”	DN20 3/4”	DN25 1”
Length(L)	165/190	190	225/260
Width(W)	99	99	103
Height(H)	104	106	114
Connecting Thread	G3/4B	G1B	G1-1/4B
Overload flow rate Q4	3.13	5	7.87
Permanent flow rate Q3	2.5	4	6.3
Transitional flow rate Q2	0.04	0.064	0.1
Minimum flow rate Q1	0.025	0.04	0.063
Ratio ”R” Q3/Q1	100	100	100

Features

✽ Maximum working pressure: 16 Bar

✽ Maximum pressure loss: 0.6 Bar

✽ Maximum reading: 99999

✽ Working temperature: <50℃

✽ Error: Q1≤Q≤Q2 5%;

Q2≤Q＜Q4 2%

Application

Measuring the volume of cold water through water pipe

Solutions to recharge prepaid water meter

1. By Stronpay vending Software

If the no credits in the meter,users go to sales of point to buy water,via Stronpay vending Software,user will get 20 digits TOKEN receipt and then input by CIU to recharge successfully

2. By the third party platform or local mobile payment with API

API: Application Program Interface, which is the agreement connecting the third party APP and our Stronpay vending software.

If the utility is too far,we can use the third party APP to recharge.By API to connect the vending system,users will receive the TOKEN by SMS and then input it to recharge.
