Name: 400V 400imp/KWh Smart Prepaid Electricity Meter With Circuit Breaker
Brand: Hunan Stron Smart Co., Ltd
SKU: STE38-A
Price: 463.90 USD
Availability: InStock

Home > products > Smart Prepaid Electricity Meter >

400V 400imp/KWh Smart Prepaid Electricity Meter With Circuit Breaker

400imp/kWh smart prepaid electricity meter

400V smart prepaid electricity meter

400imp/kWh 3 phase prepaid meter

Place of Origin:

Hunan

Brand Name:

Stron

Certification:

STS

Model Number:

STE38-A

Request A Quote

400V 400imp/KWh Smart Prepaid Electricity Meter With Circuit Breaker

Product Details

Material:

Plastic

Phase Number:

Three Phase

Active Energy Constant:

400imp/kWh

Type:

Prepaid Electricity Meter

Feature:

Keypad

Application:

For Industry Or Business

IP54:

Support

Step Tariff:

Support

Keypad:

Support

Vending Software:

Yes

Highlight:

400imp/kWh smart prepaid electricity meter

400V smart prepaid electricity meter

400imp/kWh 3 phase prepaid meter

Payment & Shipping Terms

Minimum Order Quantity

100

Price

Negotiable

Delivery Time

14 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

5000 set per month

STE18-D Dinrail Mount Single Phase Split Electricity Meter with CIU

Get Best Price

STE38-S Stron STS Standard Prepaid Split Three Phase Electricity Measurement Meter with CIU Hotsale

Get Best Price

Smart IC Card Auto Scroll Mode Display Single Phase Prepaid Electricity Meter

Get Best Price

Stron STS Standard Prepaid Split Three Phase Electricity Meter with CIU

Get Best Price

86-0731-22421066

Contact Now

Product Description

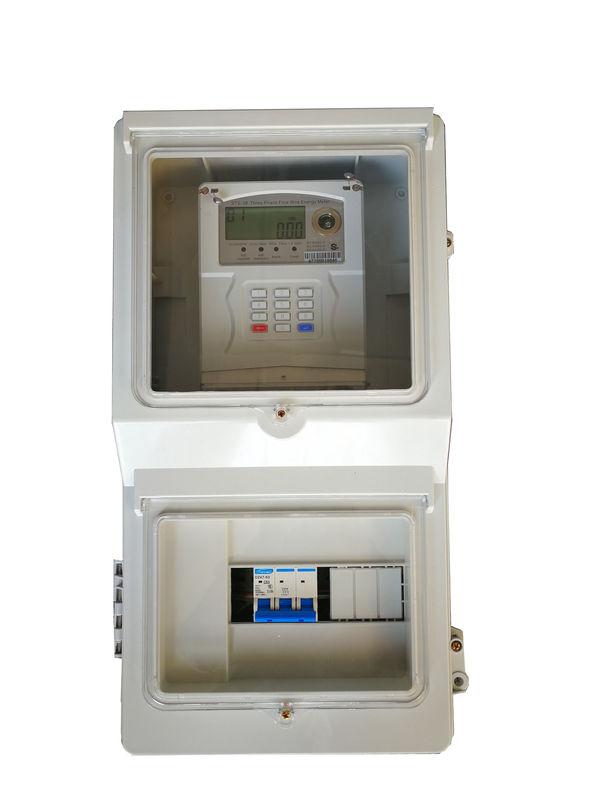

STS Prepaid Three Phase Electricity Meter With Box And Circuit Breaker

Product Introduction

The STE38-A is a single phase prepaid electricity meter with STS standard compliant, keypad type, automatically switch controlling. The integrated keypad is offered to enter recharge TOKEN and check information by short codes. Prepayment function means users must pay first before they get electricity,and excellent anti-tamper feature like magnetic field protection can help utilities for revenue electricity and consumer management.It can be top up with Stronpay vending software directly and communicate with AMI system via RF-LoRa or PLC module.Box And Circuit Breaker are avaible for users so that they no need to buy in local place.It is a whole solution for three phase energy meter.

Electrical Parameters

Nominal Voltage	3×230V/400V
Working Voltage Range	70%~120%Un
Nominal Frequency	50-60Hz
Basic Current (Ib)	10A
Maximum Current (Imax)	100A
Starting Current (Ist)	30mA
Active Energy Constant	400imp/kWh
Active Energy Accuracy	Class 1.0
Reactive Energy Accuracy	Class 2.0
Power Consumption in Voltage Circuit	<2W <8VA
Power Consumption in Current Circuit	<1VA
Operation Temperature Range	-25℃-70℃
Storage Temperature Range	-40℃-85℃

Electric Magnetic Compatibility

AC Insulation Strength		4kV at 50Hz during 1min
Impulse voltage 1.2/50 us mains connections		8kV
Electrostatic Discharges	Contact discharge	8kV
	Air discharge	16kV
Electromagnetic RF Field	27MHz-500MHz	10V/m
	100KHz-1GHz	30V/m
Fast transient burst test		4kV
Protection		Class II

Main Functions

Prepaid function	users can only get electricity after payment
Alarm for low credit	buzzer will constantly give alarm when low credit
Function of load control	meter can be programmed for load control threshold, If the current power is more than threshold. The meter will cut off user load
Available for self-testing	it can test LCD and relay etc. and report the results directly
Available for anti-tamper	meter will automatically close the valve after detection of magnetic field and open cover event
Available for TOU tariff	TOU tariff can be set on request
Overdraft Collection	electricity overdraft can be collected day by day or month by month
Recording the event	meter can record the tamper event, open cover event, purchase event and TOKENS

Application

Count electricity consumption over users’ period time. When the meter runs out of power, a warning is issued, and the main system can remotely control the switch and disconnect the network, so the user can no longer use the power. Only when the user recharges and enters the corresponding TOKENS, the network will be connected remotely and the user can continue to use it. In this way, the user can avoid the situation that the user defaults on the electricity bill but continues to use electricity endlessly, and help the supplier to better manage the user.
