Aluminium STS G4 Gas Meter , 2dm3 Pay As You Go Gas Meter

Aluminium STS G4 Gas Meter , 2dm3 Pay As You Go Gas Meter

0.7Bar STS g4 gas meter

2dm3 g4 gas meter

2dm3 pay as you go gas meter

Place of Origin:

China

Brand Name:

Stron

Certification:

STS, ISO9001, ISO14001

Model Number:

STG16-S

Contact Us
Request A Quote
Product Details
Standard:
STS Standard
Case:
Steel,Aluminium
Type:
Smart Gas Meter
Function:
Prepaid Function
Accuracy:
Class1.5
Name:
Prepaid GAS Meter
Maximum Working Pressure:
0.7Bar
Supplier Type:
Factory
Size:
G1.6/G2.5/G4
Highlight:

0.7Bar STS g4 gas meter

,

2dm3 g4 gas meter

,

2dm3 pay as you go gas meter

Payment & Shipping Terms
Minimum Order Quantity
100
Price
Negotiable
Packaging Details
cartons
Delivery Time
30-45days
Payment Terms
T/T, Western Union
Supply Ability
10000pcs/month
Product Description

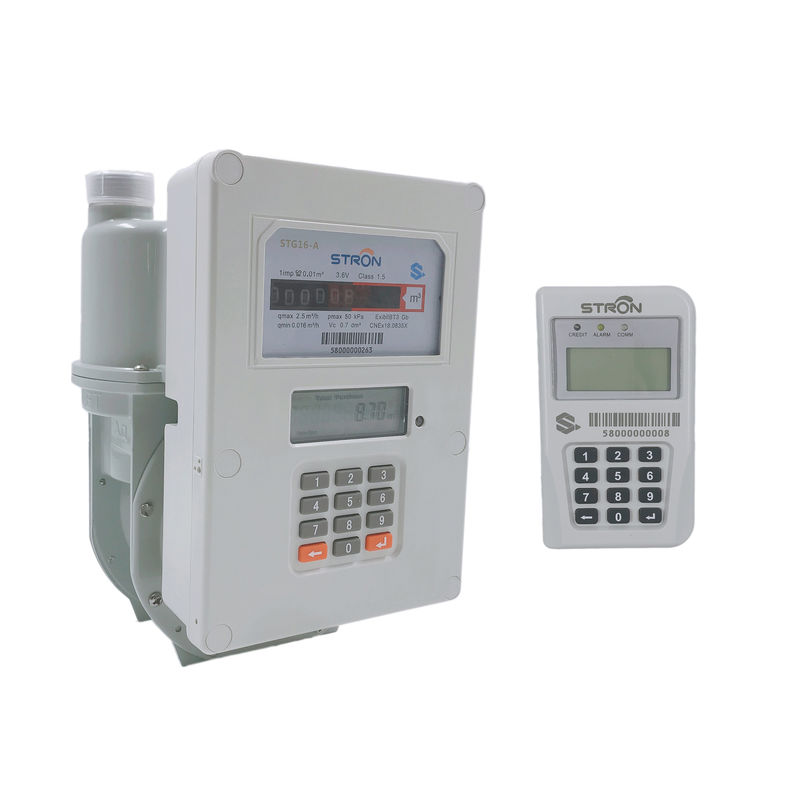

Split Keypad STS Standard Prepay Intelligent Keypad Type House Gas Meter With CIU

The STG16-A is a perfect integration of STS prepayment standard and classic high precision diaphragm gas meter, designed for various gas media. The meter is built with galvanized steel and die-casting aluminum and maximum corrosion resistance.

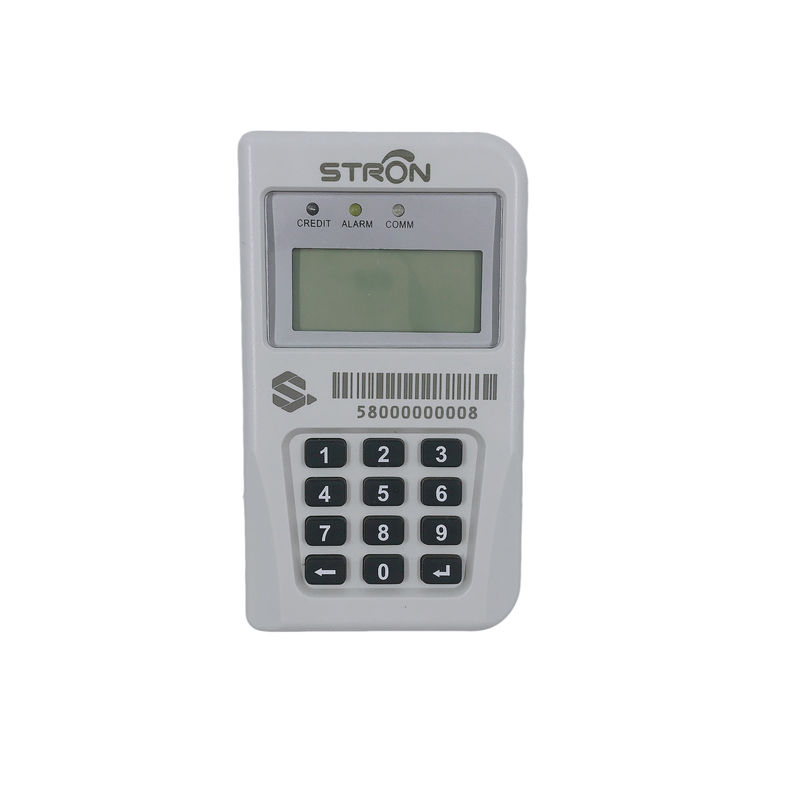

The integrated keypad of gas meter and customer interface unit(CIU) are offered to enter recharge TOKEN and check information by short codes. Stronpay vending software could be integrated to local Mobile Money Payment Platform like M-PESA, Alipay, MTN, Airtel, etc. AMI system can read, control and recharge the smart gas meter remotely via DCU and LORA-RF module.



Compliance with Standard
✽ ISO 9001 ; ISO 14001
✽ STS Certificated
Application:
Measuring the volume of gas through gas pipes.

Features
a. Recharge by inputting 20-digit token code via keypad.
b. Low power usage and low failure rate.
c. Over 10 years’ data storage in absence of power.
d. Up to 10 years' battery life.
e. Reading through LORA-RF.(on request).
f.  Low credit warning and low battery alarm.

g. Optional valve leakage warning.


Metrological Parameters of different size
Size G1.6 G2.5 G4
Nominal Flow Rate 1.6 m3/h 2.5 m3/h 4 m3/h
Maximum Flow Rate 2.5 m3/h 4 m3/h 6 m3/h
Minimum Flow Rate 0.016 m3/h 0.025 m3/h 0.04 m3/h
Cyclic Volume 0.7dm3 1.2 dm3 2 dm3
Maximum working pressure 0.7 Bar 0.7 Bar 0.7 Bar
Pressure loss <200 Pa <200 Pa <200 Pa
Maximum reading 99999 99999 99999
Working temperature -20-50℃ -20-50℃ -20-50℃
Storage Temperature -30-60℃ -30-60℃ -30-60℃

Error: Qmin≦Q≦0.1Qmax

0.1Qmax≦Q≦Qmax

±3 ±3 ±3
±1.5 ±1.5 ±1.5



Meter Dimension

Aluminium STS G4 Gas Meter , 2dm3 Pay As You Go Gas Meter 0



Function Details
Prepayment STS Standard, recharge by input 20digits TOKEN
Low credit alarm Alarm value can be set by inputting corresponding TOKEN
Prepaid and post-paid switch Meter can be switch to prepaid mode or post-paid mode
Anti-tamper Meter will automatically close the valve after detection of magnetic field and open cover event
Step Tariff Step Tariff can be set by inputting corresponding TOKEN
Overdraft Collection Non- Revenue gas (Overdraft) can be collected day by day or month by month
Communication The meter is available with AMI system through LORA RF or Bluetooth 4.0 on request
Information Inquiry Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code





Liquid Crystal Display

Aluminium STS G4 Gas Meter , 2dm3 Pay As You Go Gas Meter 1





Three ways to recharge

1. by Stronpay vending Software

  ➯ Via local sales point or handheld mobile vending unit

Aluminium STS G4 Gas Meter , 2dm3 Pay As You Go Gas Meter 2



2. By the third party platform or local mobile payment with API

  ➪ Via mobile phone

Aluminium STS G4 Gas Meter , 2dm3 Pay As You Go Gas Meter 3

Aluminium STS G4 Gas Meter , 2dm3 Pay As You Go Gas Meter 4

3. By the AMI System

Recharge remotely via DCU and LORA-RF or NB-IoT module

Aluminium STS G4 Gas Meter , 2dm3 Pay As You Go Gas Meter 5
