Place of Origin:
China
Brand Name:
Stron
Certification:
STS, ISO9001, ISO14001
Model Number:
STG16-A

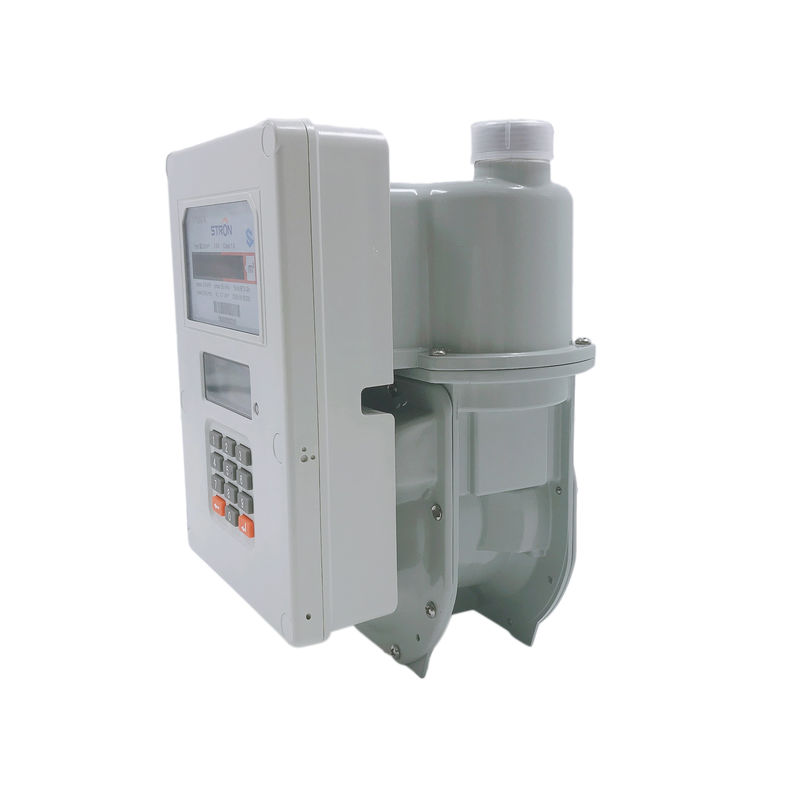

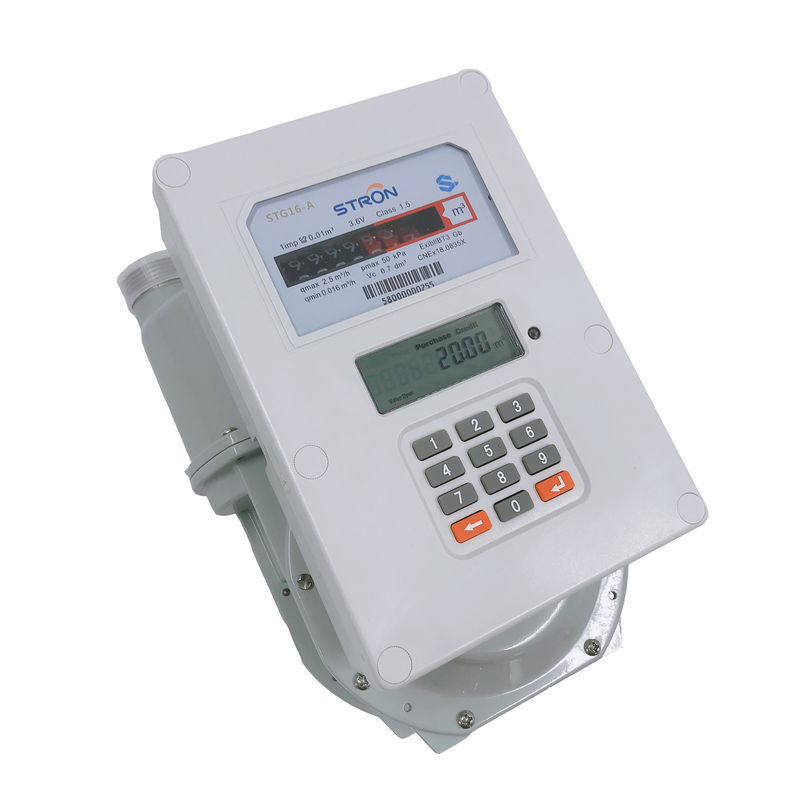

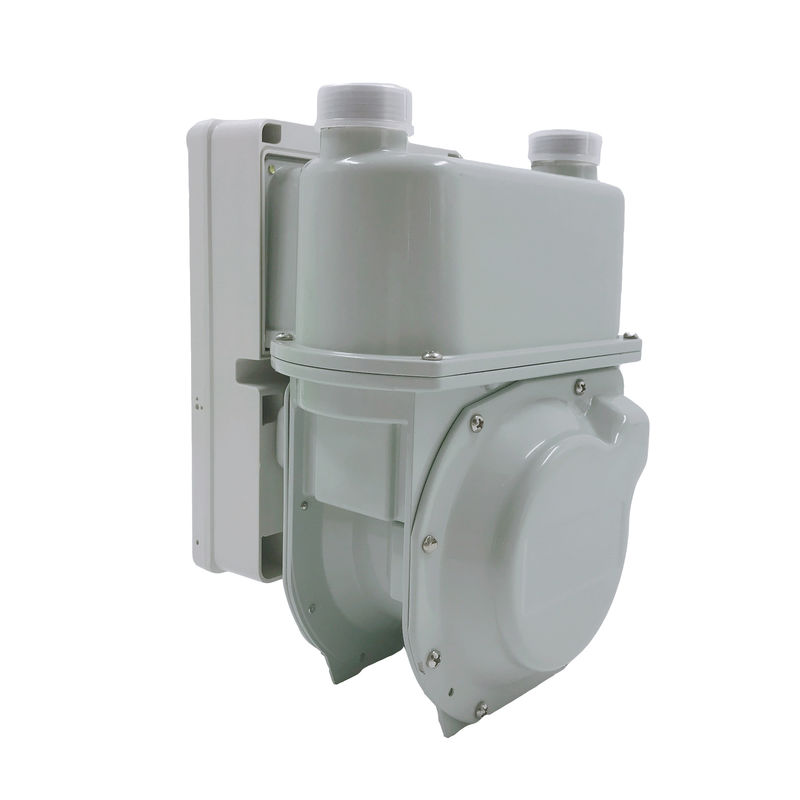

Domestic STS Standard Prepaid Keypad Intelligent Gas Flow Meter with Vending Software
The prepaid gas meter is STS Standard smart meter. It is designed to accurately measure natural gas, artificial gas, liquefied petroleum gas, methane and other gas. It has ingress protection IP68 waterproof and up to 8 years battery life. The integrated keypad is offered to enter recharge TOKEN and check information by short codes.
Meters can be top up with Stronpay vending software directly, or recharge by mobile phone with the vending software integrated with local mobile payment via API.
| Size | G1.6 | G2.5 | G4 |
| Nominal Flow Rate | 1.6 m3/h | 2.5 m3/h | 4 m3/h |
| Maximum Flow Rate | 2.5 m3/h | 4 m3/h | 6 m3/h |
| Minimum Flow Rate | 0.016 m3/h | 0.025 m3/h | 0.04 m3/h |
| Cyclic Volume | 0.7dm3 | 1.2 dm3 | 2 dm3 |
| Maximum working pressure | 0.7 Bar | ||
| Pressure loss | <200 Pa | ||
| Maximum reading | 99999 | ||
| Working temperature | -20-50℃ | ||
| Storage Temperature | -30-60℃ | ||
|
Error: Qmin≦Q≦0.1Qmax 0.1Qmax≦Q≦Qmax |
±3 | ||
| ±1.5 | |||
Main Features
1. Proprietary encryption
2. Easy to install and low installation cost
3. Keypad with text feedback
4. Low credit warning
5. Low battery detection and warning
6. Advanced tamper detection
7. Utilities can set TOU price into meter on request
8. Pay by mobile payment including M-PESA, Alipay, MTN, Airtel, etc.
Meter Dimension
| Function | Details |
| Prepayment | STS Standard, recharge by input 20digits TOKEN |
| Low credit alarm | Alarm value can be set by inputting corresponding TOKEN |
| Prepaid and post-paid switch | Meter can be switch to prepaid mode or post-paid mode |
| Anti-tamper | Meter will automatically close the valve after detection of magnetic field and open cover event |
| Step Tariff | Step Tariff can be set by inputting corresponding TOKEN |
| Overdraft Collection | Non- Revenue gas (Overdraft) can be collected day by day or month by month |
| Communication | The meter is available with AMI system through LORA RF or Bluetooth 4.0 on request |
| Information Inquiry | Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code |
|
Liquid Crystal Display |
|
Vending Process
1. By Stronpay vending Software
➯ Via local sales point or handheld mobile vending unit
Operation of vending software
Step 1: Login the web-based vending website by inputting the user name, company name and password.
Step 2: Register the solar number and customer information at the library center.
Step 3: Set the price fors for different customers
Step 4: Open an account to combine the meter,customer and price information
Step 5: Get the Token at the Top up center.
Step 6: Input the Token with keypad.
Step 7: Recharging successfully.
2. By the third party platform or local mobile payment with API
➪ Via mobile phone
