Name: 80A Single Phase Digital Meter , 1000imp/KWh Prepaid Kwh Meter
Brand: Hunan Stron Smart Co., Ltd
SKU: STE18/STE38
Price: 463.90 USD
Availability: InStock

Home > Products > Smart Prepaid Electricity Meter >

80A Single Phase Digital Meter , 1000imp/KWh Prepaid Kwh Meter

80A single phase digital meter

1000imp/kWh single phase digital meter

1000imp/kWh prepaid kwh meter

Place of Origin:

China

Brand Name:

stron

Certification:

STS

Model Number:

STE18/STE38

Request A Quote

Product Details

Phase:

One Phase

Certificate:

STS

Type:

Electricity Meter

Payment:

Prepaid

Input:

Keypad

TOU Function:

Yes

Low Credit Alarm:

Yes

Product Name:

Prepaid Energy Meter

Rated Voltage:

220-240V/3*220V

Standard:

STS Standard

Display:

LCD

Frequency:

50-60HZ

Warranty:

2 Years

OEM:

Support

Certificate:

ISO9001; ISO14001; STS Standard

Communication:

LORA-RF Supported

Vending Software:

Supported

Recharge Token Length:

20 Digits

Protection Class:

IP54

Battery Life:

8 Years

Current Range:

(5A/80A)/(10A/100A)

Starting Current:

(20mA)/(30mA)

Energy Constant:

(1000imp/kWh)/(400imp/kWh)

Measurement Accuracy:

Class 1.0

Mobile Payment Support:

M-PESA, Alipay, MTN, Airtel, Etc.

Overdraft Collection:

Daily/monthly Optional

Data Storage Duration:

10 Years

Anti-Tampering:

Both With Magnetic Field/cover-opening Detection; STE18-B Cuts Relay, STE38-G Shuts Valve When Triggered

Recharge Method:

(1. Stronpay Software; 2. 3rd-party/mobile Payment)plus 3. AMI System Remote Recharge)

Highlight:

80A single phase digital meter

1000imp/kWh single phase digital meter

1000imp/kWh prepaid kwh meter

Payment & Shipping Terms

Minimum Order Quantity

Price

negotiated

Packaging Details

Carton, 210*130*62mm

Delivery Time

14 work days

Payment Terms

T/T

Supply Ability

10000pcs per Month

STS Standard AMI Smart Meter with Alipay Payment Options Integration Solutions

Get Best Price

IP54 50HZ Smart Prepaid Electricity Meter Single Phase With STS Standard

Get Best Price

Video

80A Single Phase Digital Energy Meter , 230V Prepaid Electric Metre

Get Best Price

Video

Keyboard-style Smart Prepaid Electricity Meter with RF Reader and Load Control Function

Get Best Price

86-0731-22421066

Contact Now

Product Description

STS Standard Keypad One Phase Electricity Energy Meter Plastic Prepayment

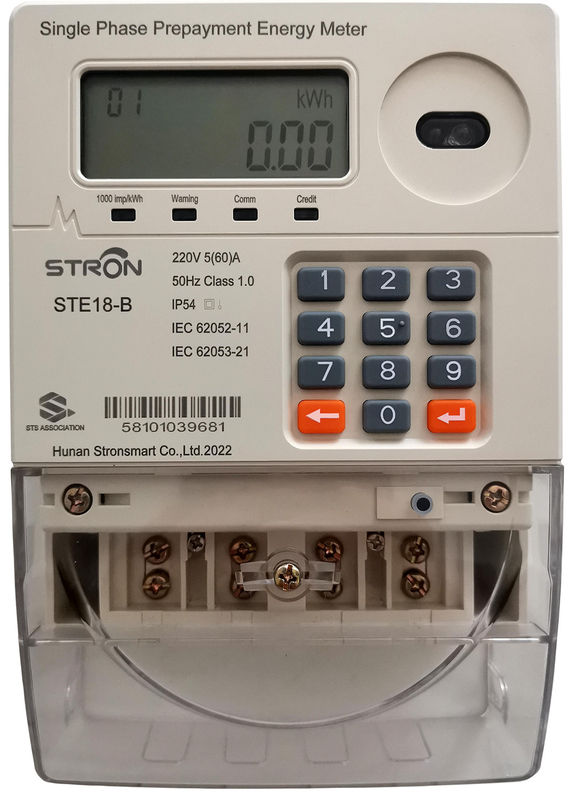

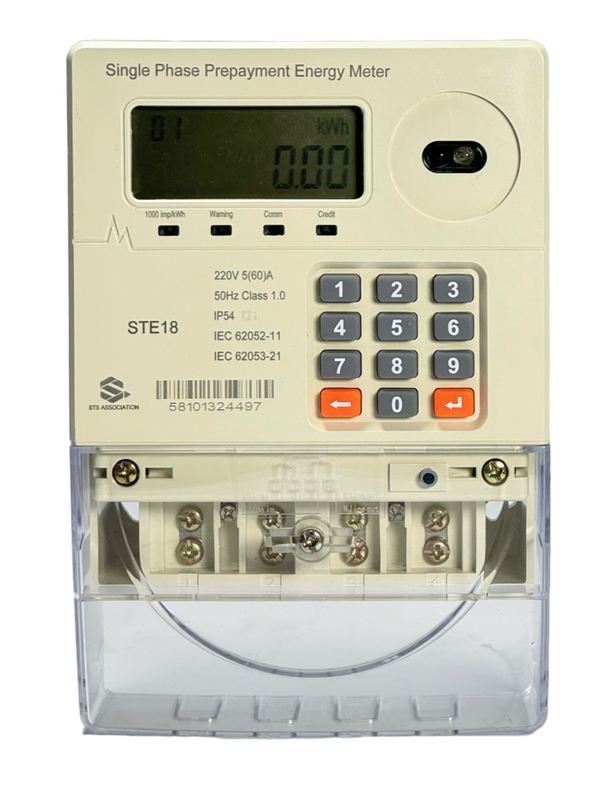

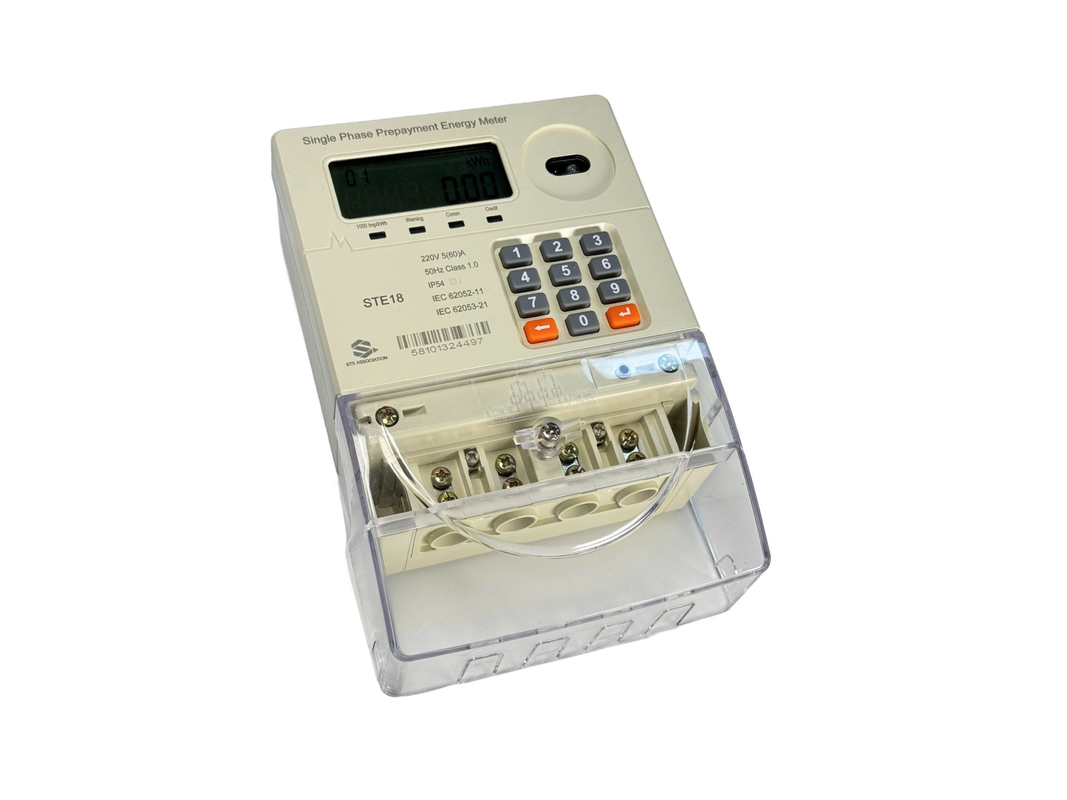

Stron Smart STS single phase keypad electricity meter

Iith IP54 waterproof protection grade, the meter can be installed far away from indoor or even outdoor users on the pole. The programming of ste18-a supports remote connection and disconnection. When there is no credit card, the meter will shut down immediately. After charging through the corresponding 20 bit token, press enter and the meter will turn on. If you use the real-time clock chip and battery, the meter can also display your local time, the battery life is generally about 8 years, easy to replace.

STS split prepayment meter has a broad market prospect all round the world. We also design and manufacture STS prepaid instruments and ODM / OEM for other instrument manufacturers. If you need further information to make your business strong and profitable, we are glad to hear from you.

Features

STS Standard
Up to 8 years battery life
Remote connection/disconnection
IP54 waterproof
Real-time clock
Time of Use price
Anti-tamper
Lora-RF communication
Mobile Payment
ISO 9001; ISO 14001 compliant

Electrical Parameters

Nominal Voltage 230V

Working Voltage Range 70%~120%Un

Nominal Frequency 50-60Hz

Basic Current (Ib) 5A

Maximum Current (Imax) 80A

Starting Current (Ist) 20mA

Active Energy Constant 1000imp/kWh

Measurement Accuracy Class 1.0

Power Consumption in Voltage Circuit <2W <8VA

Power Consumption in Current Circuit <1VA

Operation Temperature Range -25℃-70℃

Storage Temperature Range -40℃-85℃

Electric Magnetic Compatibility

AC Insulation Strength		4kV at 50Hz during 1min
Impulse voltage 1.2/50 us mains connections		8kV
Electrostatic Discharges	Contact discharge	8kV
	Air discharge	16kV
Electromagnetic RF Field	27MHz-500MHz	10V/m
	100KHz-1GHz	30V/m
Fast transient burst test		4kV
Protection		Class II
