Place of Origin:
Hunan
Brand Name:
Stron
Model Number:
ME31

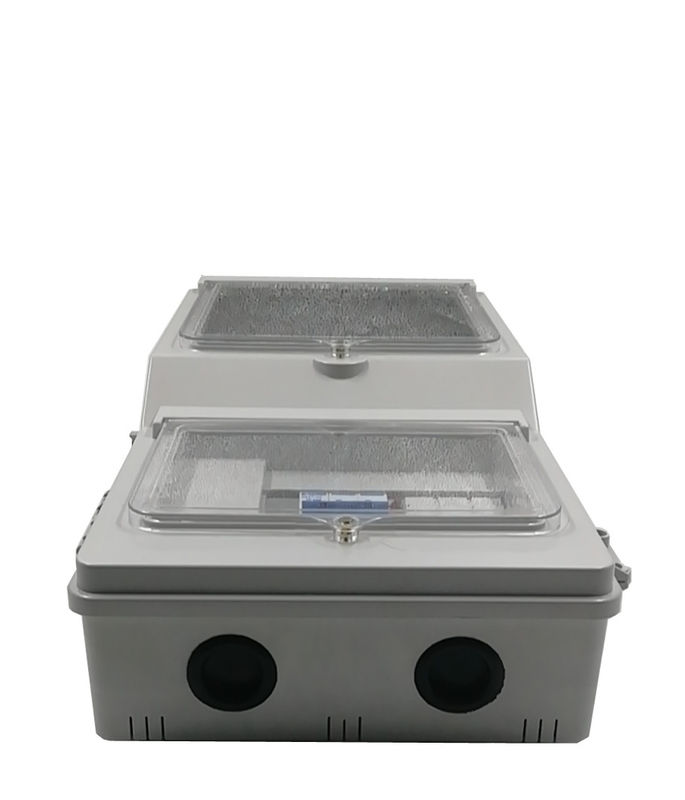

Three Phase Four Wire Electricity Energy Meter Plastic Box IP54 Protection Domestic Outdoor
three phase meter enclosure is specially designed for the purpose of anti-tamper and protection of meter. 1(One) pcs BS type meter can be mounted with bottom connection. The enclosure with two separated transparent windows, non-transparent top cover and non-transparent base. The material of enclosure is polycarbonate with UV resistance and V0 frame resistance degree. Pole mounted or Wall mounted or lock and key protection are based on project demand. Alarm sensor for enclosure opening is reserved function.
Specification
| Items | Parameters |
| Dimension | L519.1mm*W294.4mm*H150.5mm |
| Material of top cover | PC non-transparent |
| Material of turnover window | PC transparent |
| Material of base | PC+10%GF non-transparent |
| Protection Degree | IP54 |
| Anti-UV | Yes |
| Flame resistance degree | V0 |
| Installation provision for MCB | Yes |
| Anti-tamper protection | Seal and padlock for cover, and seal for windows |
| Temperature | -30℃ to 60℃ |
| Heat dissipation | Ventilation hole |
Installation Methods
Installtion Accessries:
| 2PCS PG29 |
| 2PCS Rubber plug |
|
4PCS M10*50mm Expand plug 4PCS ST6*50mm Self-tapping screw |
|
2PCS cable pressor 4PCS ST5*18mm Screw for cable pressor |
|
3PCS ST4*12mm Self-tapping screw |
|
2PCS 1000*12*0.25mm Stainless steel strap |
Quantity in Different Containers
| Containers | Quantity |
| 20GP | 1080 |
| 40HQ | 3204 |
Each meter enclosure is packed in a plastic bag, then in a carton, the carton is sealed by tape and tie.
