Place of Origin:
Hunan
Brand Name:
Stron
Certification:
STS
Model Number:
STG16

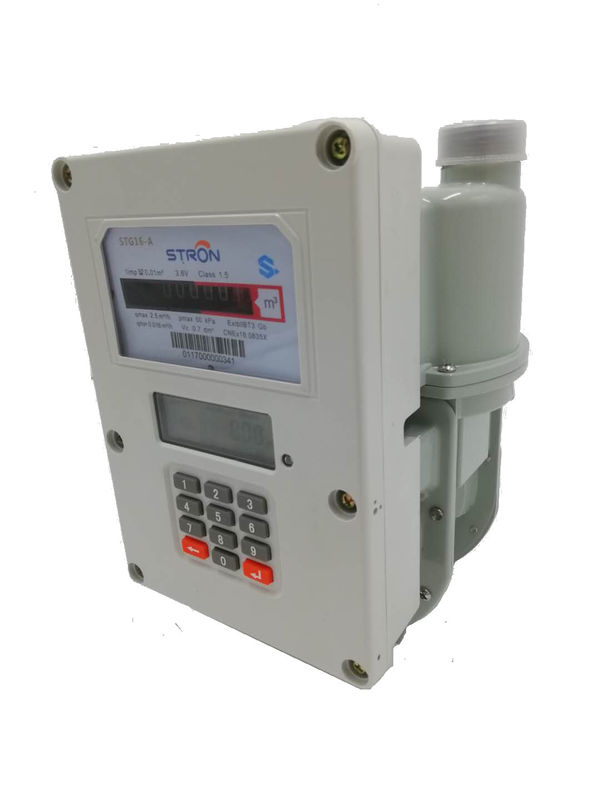

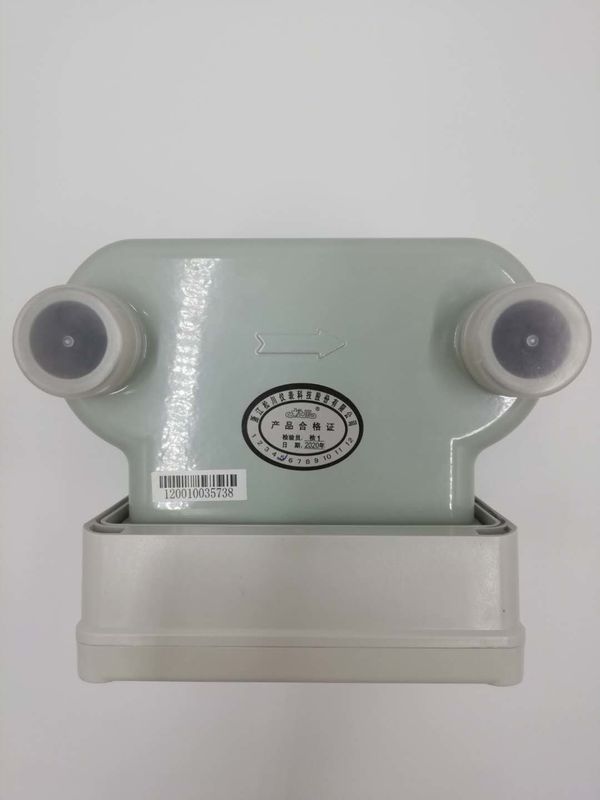

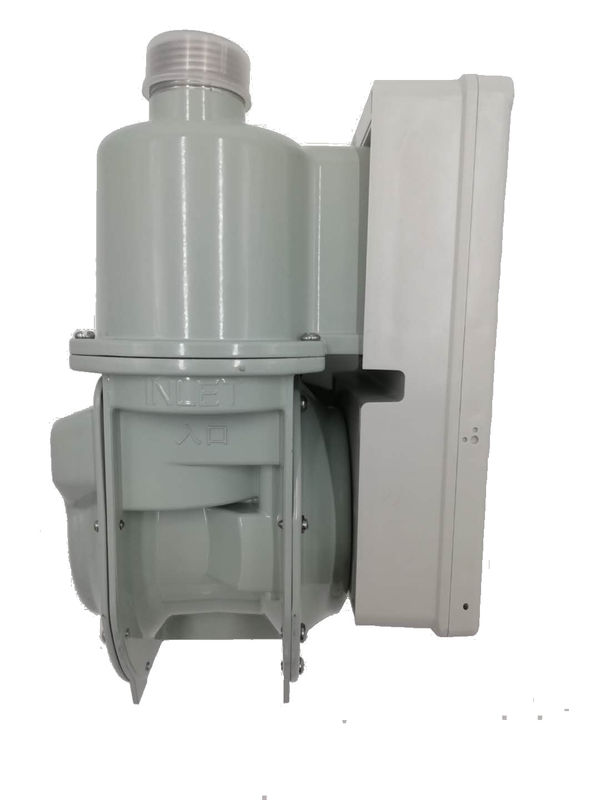

GPRS Module Communication Prepaid Gas Meter Aluminum Case, Online AMI
The STG16 is an STS Standard compliant, keypad type, automatically valve controlled prepaid gas meter. The integrated keypad is offered to enter recharge TOKEN and check information by short codes. Stronpay gas vending software could be integrated to local Mobile Money Payment Platform like M-PESA, Alipay, MTN, Airtel, etc. So users can top up PAYG gas by mobile money without leaving the house. Pay as you go function and excellent anti-tamper feature like Magnetic field protection to help utilities for Revenue gas protection and consumer management.
GPRS Module
Frequency band Gsm850 / egsm900 / DCS 1800 / PCS 1900
automatic frequency band search
sensitivity <-108dbm
Maximum transmission power GSM850/EGSM900 Cl as s4 (2W)
DCS1800/PCS1900 Classl (1W)
Functions
The integrated keypad of gas meter is offered to enter recharge TOKEN and check information by short codes.
Stronpay vending software could be integrated to local Mobile Money Payment Platform like M-PESA, Alipay, MTN, Airtel, etc.
✽ Meter Recharge: By inputting 20 digits Token.
✽ Low Credit Alarm: Alarm value can be set by inputting corresponding TOKEN.
Information Inquiry:
Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code.
Metrological Parameters of different size
| Size | G1.6 | G2.5 | G4 | |
| Nominal Flow Rate | 1.6 m3/h | 2.5 m3/h | 4 m3/h | |
| Maximum Flow Rate | 2.5 m3/h | 4 m3/h | 6 m3/h | |
| Minimum Flow Rate | 0.016 m3/h | 0.025 m3/h | 0.04 m3/h | |
| Cyclic Volume | 0.7dm3 | 1.2 dm3 | 2 dm3 | |
| Maximum Working Pressure | 0.7bar | 0.7bar | 0.7bar | |
| Pressure Loss | <200Pa | <200Pa | <200Pa | |
| Maximum reading | 99999.9 | 99999.9 | 99999.9 | |
| Working Temperature | -20℃-50℃ | -20℃-50℃ | -20℃-50℃ | |
| Storage Temperature | -30℃-60℃ | -30℃-60℃ | -30℃-60℃ | |
| Error | Qmin≦Q≦0.1Qmax | ±3 | ±3 | ±3 |
| 0.1Qmax≦Q≦Qmax | ±1.5 | ±1.5 | ±1.5 | |
Meter Dimension
