Place of Origin:
Hunan
Brand Name:
Stron
Model Number:
ME31
ME31 Prepaid Three Phase Electricity Meter Enclosure for BS type meter

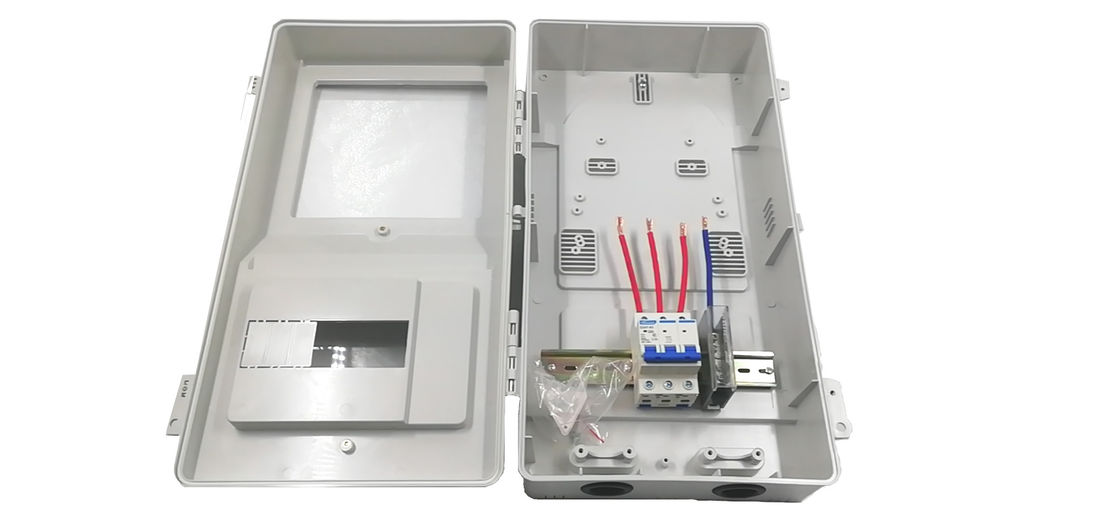

ME31 three phase meter enclosure is specially designed for the purpose of anti-tamper and protection of meter. 1(One) pcs BS type meter can be mounted with bottom connection. The enclosure with two separated transparent windows, non-transparent top cover and non-transparent base. The material of enclosure is polycarbonate with UV resistance and V0 frame resistance degree. Pole mounted or Wall mounted or lock and key protection are based on project demand. Alarm sensor for enclosure opening is reserved function.
Specification
| Items | Parameters |
| Dimension | L519.1mm*W294.4mm*H150.5mm |
| Material of top cover | PC non-transparent |
| Material of turnover window | PC transparent |
| Material of base | PC+10%GF non-transparent |
| Protection Degree | IP54 |
| Anti-UV | Yes |
| Flame resistance degree | V0 |
| Installation provision for MCB | Yes |
| Anti-tamper protection | Seal and padlock for cover, and seal for windows |
| Temperature | -30℃ to 60℃ |
| Heat dissipation | Ventilation hole for cooling |
| Method of production | Injection |
|
Mounting methods
|
Pole mounted by stainless steel strap or wall mounted by screw |
Installation Methods
