STS TOU Tariff Single Phase Keypad Prepayment Energy Meter
Product introduction

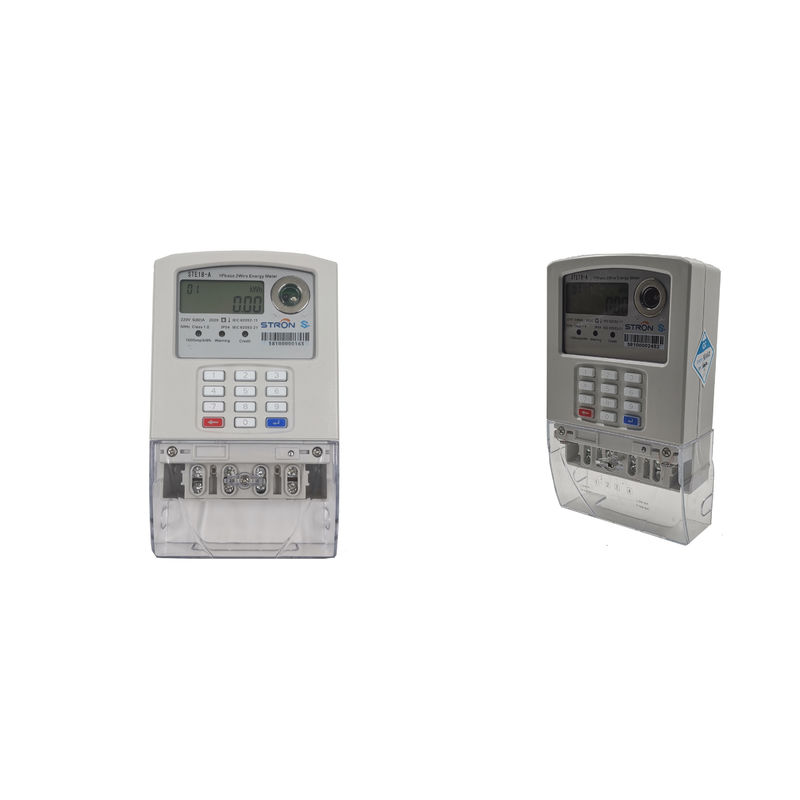

STE18-A is an STS Standard compliant, keypad type, automatically connection or disconnection prepaid electricity meter. It can be top up with Stronpay vending software directly and communicate with AMI system via RF-LoRa or PLC module.
Our electricity meters can be topped up directly using the Stron pay vending software and can be topped up remotely via the RF-LoRa and PLC module communicating with the AMI system.AMI is advanced metering infrastructure and is mainly composed of Smart Meter, communication system and equipment, meter database management system, and meter database management system.MDMS).
Application:
Counting electricity consumption over users’ period time. When the meter runs out of power, a warning is issued, and the main system can remotely control the switch and disconnect the network, so the user can no longer use the power. Only when the user recharges and enters the corresponding TOKENS, the network will be connected remotely and the user can continue to use it. In this way, the user can avoid the situation that the user defaults on the electricity bill but continues to use electricity endlessly, and help the supplier to better manage the user.
Main characteristics and functions
●Prepayment function:users get electricity after payment, the power will be closed after using up electricity.
●Data storage:internal data can be kept 1 year.
●Alarm function:buzzer will give alarm when it is low credit
●Load control function:meter can be programmed for load control threshold, If the current power is more than threshold. The meter will cut off user load.
●Prepaid & post-paid switch:meter can be switched to prepaid mode or post-paid mode.
●Event recording:meter can record the event of tamper, open cover, purchase and TOKENS.
●Self-testing:meter has a self-test function, it can test LCD and relay etc. and report the results directly.
●Anti-tamper:valve will automatically be closed after detection of magnetic field and open cover event.
●TOU Tariff:TOU tariff can be set by inputting corresponding TOKEN on request.
●Overdraft Collection:electricity overdraft can be collected daily or monthly.
●Communication:the meter is available with AMI system through RF-LoRa or PLC on request.
●Information Inquiry:by inputting short codes,consumer could check the data like remaining credit, total purchased and total credit.
|
Electrical parameters
|
|
Nominal Voltage
|
230V
|
|
Working Voltage Range
|
70%~120%Un
|
|
Nominal Frequency
|
50-60Hz
|
|
50-60Hz
|
5A
|
|
Maximum Current (Imax)
|
80A
|
|
Starting Current (Ist)
|
20mA
|
|
Active Energy Constant
|
1000 imp/kWh
|
|
Measurement Accuracy
|
Class 1.0
|
|
Power Consumption in Voltage Circuit
|
<2W <8VA
|
|
Power Consumption in Current Circuit
|
<1VA
|
|
Operation Temperature Range
|
-25℃-70℃
|
|
Storage Temperature Range
|
-40℃-85℃
|
|
Electro Magnetic Compatibility
|
|
AC Insulation Strength
|
4kV at 50Hz during 1min
|
|
Impulse voltage 1.2/50 us mains connections
|
8kV
|
|
Electrostatic Discharges
|
Contact discharge
|
8kV
|
| |
Air discharge
|
16kV
|
|
Electromagnetic RF Field
|
27MHz-500MHz
|
10V/m
|
| |
100KHz-1GHz
|
30V/m
|
|
Fast transient burst test
|
4kV
|
|
Mechanical requirements
|
|
Meter shell water proof protection Rate
|
IP54
|
|
Protection
|
Class II
|
Electricity purchase
●.Please go to the local selling water business hall.To provide operator meter ID number (lD number printed on the water meter).Tell the operator how much you want to buy and prepay.On the receipt, you can get a printed TOKEN "20(Digits)
●By the third party platform or local mobile payment with API.API is application program interface, which is the agreement connecting the third party APP and our Stronpay vending software.If utility is remote for users to go,they can use the third party APP to recharge where they can receive the TOKEN by SMS and then input TOKEN to complete the recharge.
