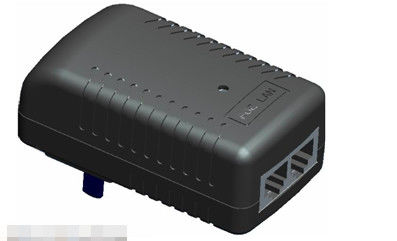

7.5W Ethernet Power Supply , 0.5A Wall Plug Poe Power Injector

7.5W ethernet power supply

0.5A Wall plug ethernet power supply

0.5A Wall plug poe power injector

Place of Origin:

Hunan

Brand Name:

Stron

Request A Quote

Product Details

Material:

Plastic

DC Output:

15V

Power:

7.5W

WORKING TEMP.:

0℃～40℃

FREQUENCY RANGE:

47-63HZ

RATED CURRENT:

0.5A

Highlight:

7.5W ethernet power supply

0.5A Wall plug ethernet power supply

0.5A Wall plug poe power injector

Payment & Shipping Terms

Minimum Order Quantity

100

Price

Negotiable

Delivery Time

14 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

2000 set per month

15W 50V Poe Power Adapter Household Electrical Devices

Get Best Price

Video

7.5W Ethernet Power Supply , 0.5A Wall Plug Poe Power Injector

Get Best Price

63Hz 15Watt Poe Power Supply , IEC60950-1 Desktop Power Supply

Get Best Price

Courtyard Solar Outdoor Wall Lamps 100LED Body Induction Corridor Lights

Get Best Price

86-0731-22421066

Contact Now

Product Description

7.5W WallplugPOE Power Supply 100M +(4,5)pins; -(7,8)pins

·Universal AC input / Full range

·100M Ethernet ports support

·+(4,5)pins; -(7,8)pins

·Forced the power into Ethernet ports

·Protections: Short circuit / Overload / Surge

·100% full load burn-in test

·No load consumption<0.1W@230VAC

·3 years warranty

SPECIFICATION

MODEL		PHOB10W01-150050
OUTPUT	DC VOLTAGE	15V
	RATED CURRENT	0.5A
	RATED POWER	7.5W
	RIPPLE & NOISE (max.)	150mVp-p
	VOLTAGE TOLERANCE	±5%
INPUT	VOLTAGE RANGE	90～264Vac
	FREQUENCY RANGE	47～63Hz
	EFFICIENCY (Typ.)	80.26%(Meet DOE Ⅵ)
	AC CURRENT (Typ.)	0.5A max @100～240Vac
	INRUSH CURRENT (Typ.)	COLD START 40A/100Vac 60A/240Vac
PROTECTION	OVERLOAD	120～200% rated output power
	OVERLOAD	Protection type : Hiccup mode, recovers automatically after fault condition is removed
	Short circuit	Protection type : Hiccup mode, recovers automatically after fault condition is removed
	Lightning Surge	L-N 4KV ; L&N-PE 4KV; Pin4,5-Pin7,8 4KV
ENVIRONMENT	WORKING TEMP.	0℃～40℃
	WORKING HUMIDITY	20%～95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-20℃～70℃ , 20%～95% RH
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC	SAFETY STANDARDS	UL60950-1, CB(IEC60950-1)
SAFETY & EMC	EMI CONDUCTION & RADIATION	EN55022, EN55024, FCC Part 15 Class B, GB9254, GB17625.1ect.
OTHERS	MTBF	50000hrs min. MIL-HDBK-217F(40℃)
DIMENSION
