Place of Origin:
China
Brand Name:
Stron
Certification:
STS Certificated
Model Number:
STE18-A

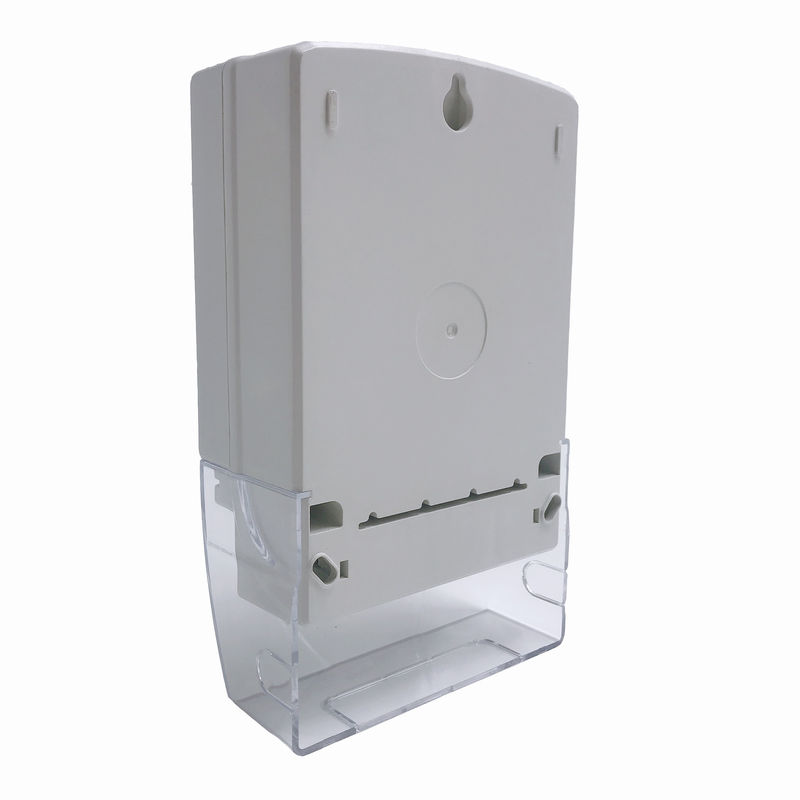

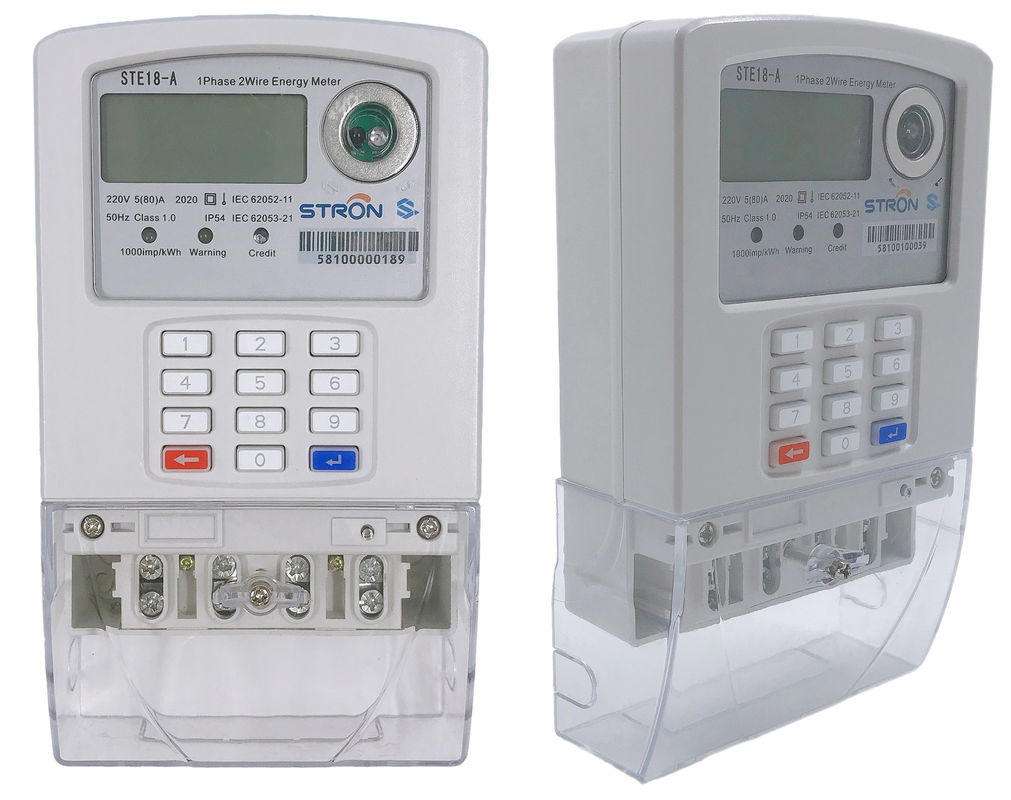

Keypad Type STS Prepaid LORA-RF Single Phase Electricity Meter with IP54 Waterproof
Main Features
1. Users purchases energy by the encrypted 20 digits Token.
2. The meter's TOU tariffs function can set different prices by inputting corresponding Token or IR adaptor.
3. Maximum power limitation can be set on vending software.
4. Vending software is easily integrated with local mobile payment like M-PESA, Alipay, MTN, Airtel, etc.
5. It has excellent event log like recharge record, cover open record, magnetic detection record and credit clear record.
6. The meter can be set Max overdraft.
| Electrical Parameters | ||
| Nominal Voltage | 230V | |
| Working Voltage Range | 70%~120%Un | |
| Nominal Frequency | 50-60Hz | |
| Basic Current (Ib) | 5A | |
| Maximum Current (Imax) | 80A | |
| Starting Current (Ist) | 20mA | |
| Active Energy Constant | 1000imp/kWh | |
| Measurement Accuracy | Class 1.0 | |
| Power Consumption in Voltage Circuit | <2W <8VA | |
| Power Consumption in Current Circuit | <1VA | |
| Operation Temperature Range | -25℃-70℃ | |
| Storage Temperature Range | -40℃-85℃ | |
| Electro Magnetic Compatibility | ||
| AC Insulation Strength | 4kV at 50Hz during 1min | |
| Impulse voltage 1.2/50 us mains connections | 8kV | |
|
Electrostatic Discharges
|
Contact discharge | 8kV |
| Air discharge | 16kV | |
| Electromagnetic RF Field | 27MHz-500MHz | 10V/m |
| 100KHz-1GHz | 30V/m | |
| Fast transient burst test | 4kV | |
| Mechanical requirements | ||
| Meter shell Water proof protection Rate | IP54 | |
| Protection | Class II | |
Meter Dimension
Function:
1. Basic functions:
✽ Meter Recharge By Inputting TOKEN
✽ Active energy measurement
✽ MD(maximum demand measurement)
✽ Auto scroll mode display
✽ Build-in relay control
✽ Event log
✽ Low Credit Alarm
2. TOU Tariff: Meters can be set TOU Tariff by inputting corresponding TOKEN. Utilities can set step price on request.
E.g. Step 1: 00:00-07:00 Price1: $1/Kwh
Step 2: 07:00-17:30 Price2: $1.5/Kwh
Step 3: 17:30-24:00 Price3: $1/Kwh
3. Anti-Tamper Functions: Meter will automatically close the valve after detection of magnetic field and open cover event.
4. Overdraft Collection:Electricity Overdraft can be collected day by day or month by month.
5. Information Inquiry: Consumer could check the data like Credit Remain, Total Purchased and Total Credit by inputting the short code.
Stronpay Vending Software is a Window-based vending management system. It consists of Stronpay management server(CMS) and Stronpay management Client(CMC).
CMC provides administrative operations, such as customer and meter registration, vending, report. It can be run on an independent device in form of standalone software. Multiple clients can be connected to a single management server(CMS). CMC also allows multiple operators and access to system which is configured by the administrator.
Vending Process
Step 1: Login the web-based vending website by inputting the user name, company name and password.
Step 2: Register the solar number and customer information at the library center.
Step 3: Set the price fors for different customers
Step 4: Open an account to combine the meter,customer and price information
Step 5: Get the Token at the Top up center.
Step 6: Input the Token with keypad.
Step 7: Recharging successfully.
