STS Standard Prepaid Split Keypad Single Phase Smart Energy Meter with LORA-RF module

STS Standard Prepaid Split Keypad Single Phase Smart Energy Meter with LORA-RF module

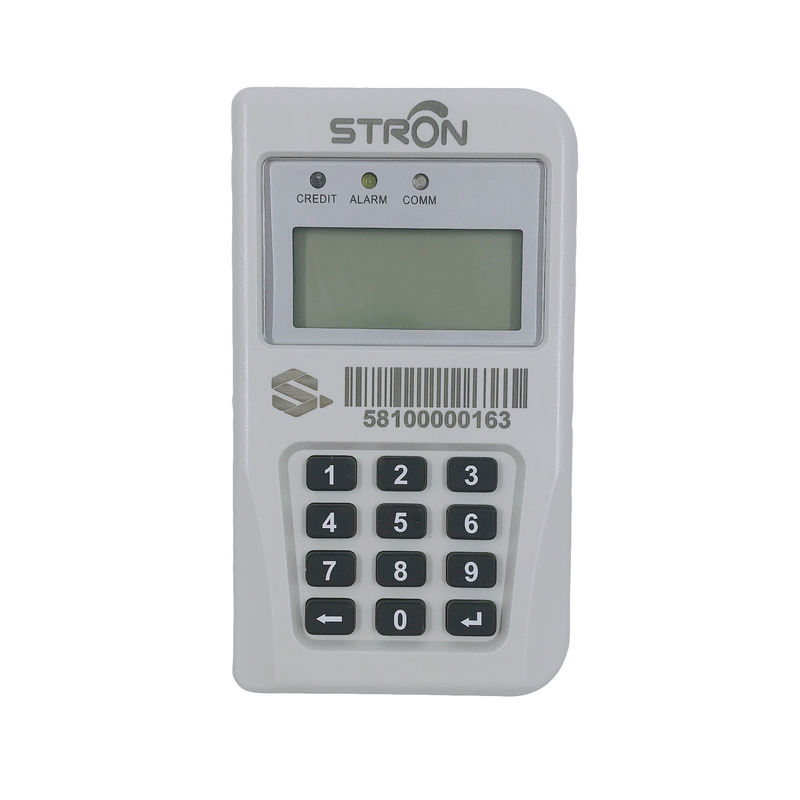

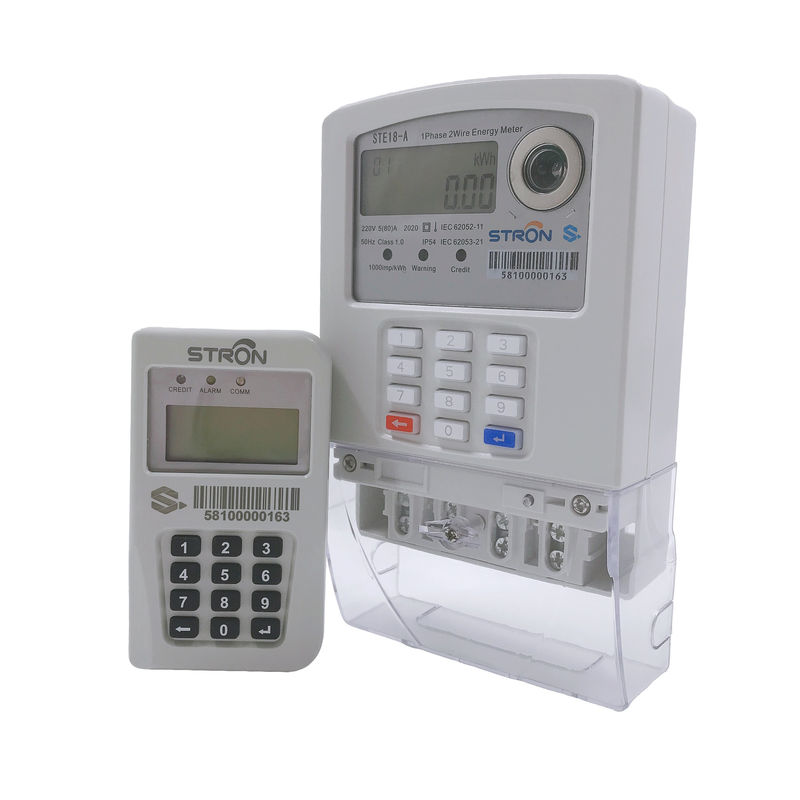

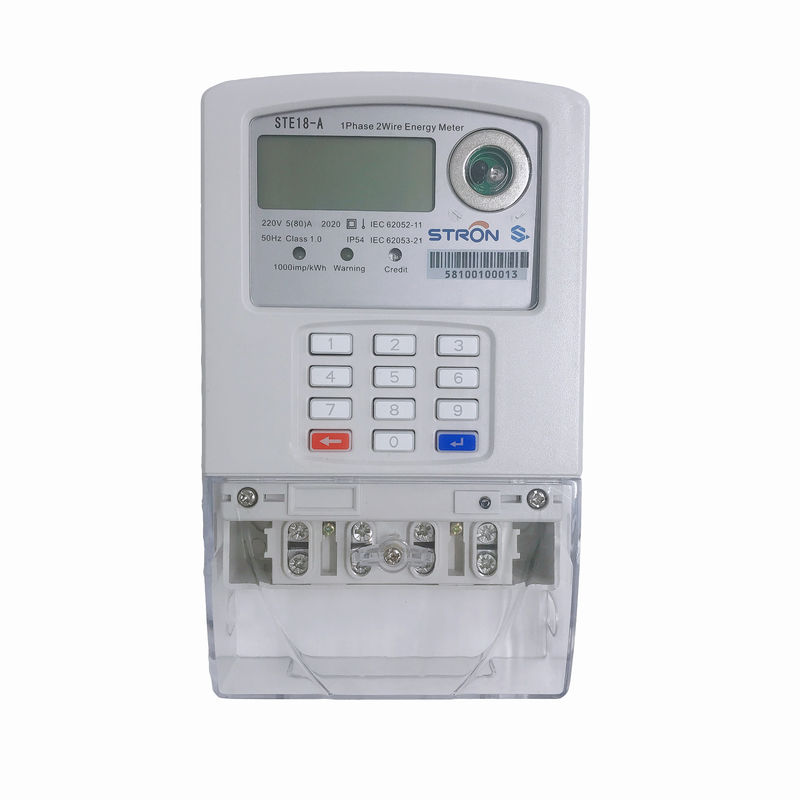

STE18-S is STS Standard compliant prepaid split keypad single phase electricity meter with a customer interface unit(CIU). It has ingress protection IP54 waterproof and up to 8 years battery life to show the real-time clock. This meter has excellent anti-tamper feature like terminal cover open detection sensor to help utility for revenue protection.

The meter and CIU have a LORA-RF module inside, they can communicate with each other with this module, so people can input the recharge Token when the meter is installed in a highly place. This meter also can communicate with AMI system via LORA-RF module, we can read,control,recharge the meter remotely.

Features:

      ✽ Users purchases energy by the vending network to get a serial number (TOKEN), the Token contains 20 digits and is encrypted.

✽ TOU tariffs function can help operators to set different prices by inputting corresponding Token or IR adaptor.

✽ The smart meter can be set the maximum power everyday to limit the energy usage.

✽ Stronpay vending software is able to integrated with mobile payment including M-PESA, Alipay, MTN, Airtel, etc

✽ It has excellent event log like recharge record, cover open record, magnetic detection record and credit clear record.

✽ The meter can be set Max overdraft when the credit is zero.

Electrical Parameters

Electric Magnetic Compatibility

Meter Dimension

Function:

1. TOU Tariff

  Meters can be set TOU Tariff by inputting corresponding TOKEN. Utilities can set step price on request.

           E.g. Step 1: 00:00-07:00 Price1: $1/Kwh

                  Step 2: 07:00-17:30 Price2: $1.5/Kwh

                  Step 3: 17:30-24:00 Price3: $2/Kwh

2. Overdraft Collection

  Electricity Overdraft can be collected day by day or month by month.

3. Anti-Tamper

  Meter will automatically close the valve after detection of magnetic field and open cover event.

4. Overdraft Collection

  Electricity Overdraft can be collected day by day or month by month.

5. Information Inquiry

  Consumer could check the data like Credit Remain, Total Purchased and Total Credit by inputting the short code.

1. By Stronpay vending Software

➯ Via local sales point or handheld mobile vending unit



2. By the third party platform or local mobile payment with API

➪ Via mobile phone

API: Application Program Interface, which is the agreement connecting the third party APP and our

Stronpay vending software.

The advantages to recharge with mobile payment:

✽ Users can top up electricity by mobile money without leaving the house.

✽ Users could check information by their telephone.

✽ It helps utilities for Revenue protection and consumer



3. By the AMI System

➪ Recharge remotely via DCU and LORA-RF or PLC module
