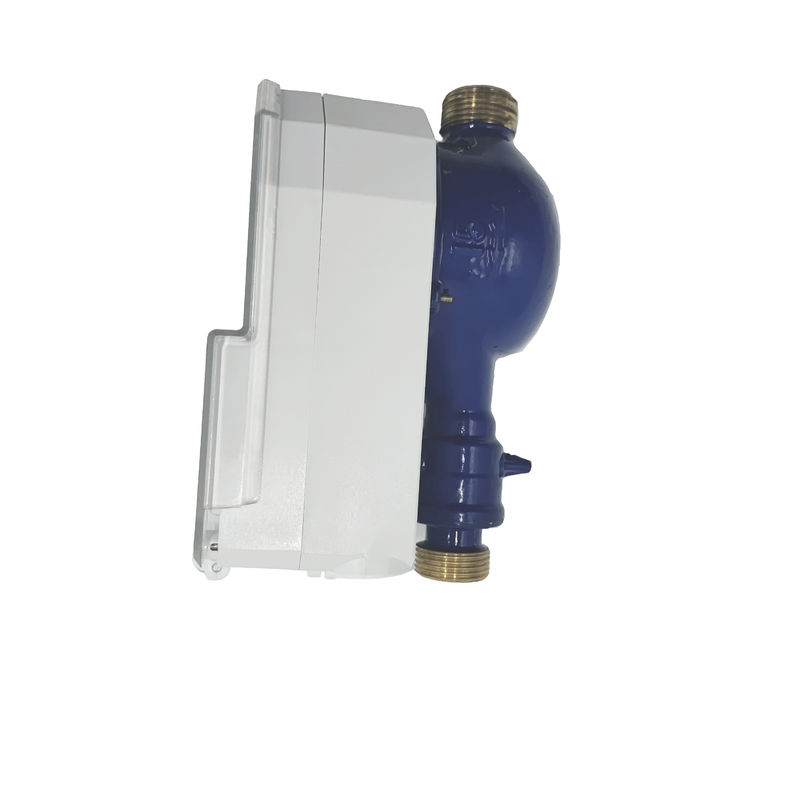

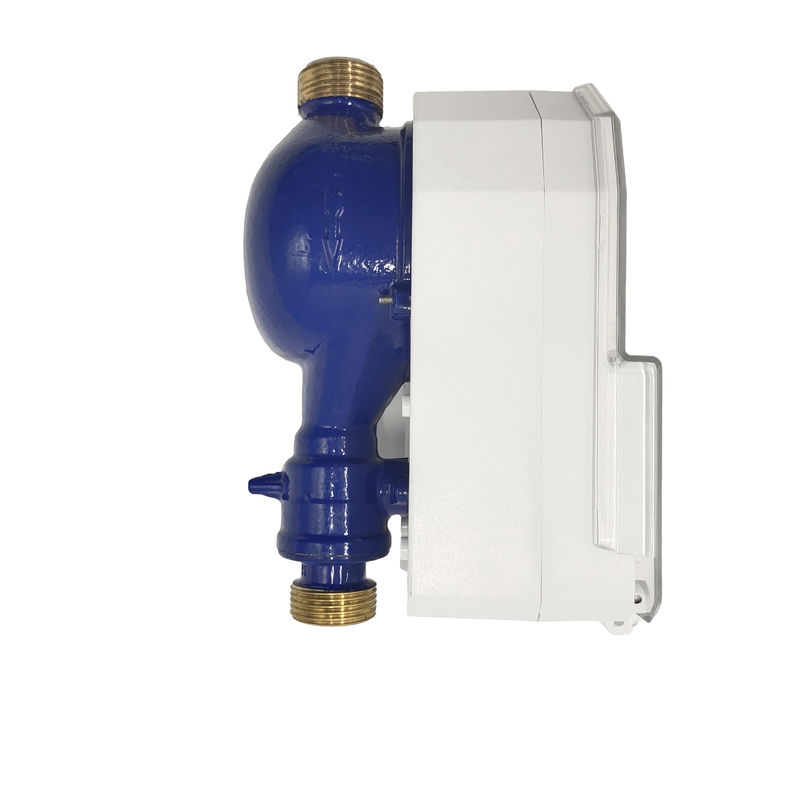

STS Smart automatically valve controlled anti-tamper Prepaid Water Meter

STS Smart automatically valve controlled anti-tamper Prepaid Water Meter

Place of Origin:

Hunan

Brand Name:

Stron

Certification:

STS

Model Number:

STW36-A

Contact Us
Request A Quote
Product Details
Material:
Brass Body
Type:
Prepaid Water Meter
Inlet:
DN15/DN20/DN25
IP Rating:
IP68
Feature:
Long Life
Application:
Measuring Water Consumption
Function:
Overdraft Collection
Warranty:
2 Years
Color:
White
Input:
Keypad
Payment & Shipping Terms
Minimum Order Quantity
50pcs
Price
Negotiable
Packaging Details
carton 255*145*125mm
Delivery Time
15 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000pcs per Month
Product Description

STS Smart automatically valve controlled anti-tamper Prepaid Water Meter



The STW36-A is an STS Standard compliant, keypad type, automatically valve controlled prepaid water meter. The integrated keypad is offered to enter recharge TOKEN and check information by short codes.



Our water meters have anti-tamper function.As we all know, water can be stolen.Not everyone has this idea, but it happens a lot, especially in poor areas.Our water meter is equipped with anti-tamper function. Once something abnormal is detected, it will send an alarm and send information to the main system. Then the main system will send the command to close the valve to the water meter, and the water meter can no longer be used.Only by explaining the situation to the staff, getting Tokens to clear the water, and entering them, can the valves be restarted.



At the same time, our water meters have an automatic valve closing feature so that the supplier can open/close the valve through the main system.In some areas, clean water resources are scarce, and the economic status of the residents is not high.In some places, people in the same area use the same water, which can easily lead to disputes.People living closer to a water source are perceived to be using more, leading to disputes.And this situation will lead to people are not willing to pay the water fee, and then pay the water meter can not automatically close the valve, only through manual to manual valve, special trouble.And our product has the function of remote control on/off valve. Once the resident's payment relative to the water source is used up, the system will remotely control the automatic closing valve.Only when you recharge and enter the Tokens can you reopen the valve and use the water.In this way, residents' arrears in fees are solved, and the annual fees charged by suppliers can be basically collected without too much loss, namely water loss.



Features:

●Ingress IP68 waterproof protection

●Up to 8 years battery life

●Automatic valve controlling

●STS standard

●Real time o-clock

●Utilities can set step price into meter on request

●Anti-Tamper Magnetic field protection

●RF-LoRa communication(optional)

●Pay by mobile payment M-PESA, Alipay, MTN, Airtel, etc



Metrological Parameters of different size

Size DN15mm 1/2” DN20mm 3/4” DN25mm 1”
Overload flow rate Q4 3.13 5 7.87
Permanent l flow rate Q3 2.5 4 6.3
Transitional flow rate Q2 0.04 0.064 0.1
Minimum flow rate Q1 0.025 0.04 0.063
Ratio ”R” Q3/Q1 100 100 100
Maximum working pressure 16Bar 16Bar 16Bar
Maximum pressure loss 0.6Bar 0.6Bar 0.6Bar
Maximum reading 99999 99999 99999
Max temperature 50℃ 50℃ 50℃
Error Q1≦Q≦Q2 5% 5% 5%
Q2≦Q≦Q4 2% 2% 2%



Basic Functionality

Function Details
Prepayment STS Standard, recharge by input 20digits TOKEN
Low credit alarm Alarm value can be set by inputting corresponding TOKEN
Prepaid and post-paid switch Meter can be switch to prepaid mode or post-paid mode
Non-return valve Non-return valve inside for preventing back-flow
Anti-tamper Meter will automatically close the valve after detection of magnetic field and open cover event
Step Tariff Step Tariff can be set by inputting corresponding TOKEN
Overdraft Collection Non- Revenue water (Overdraft) can be collected day by day or month by month
Communication The meter is available with AMI system through LORA RF or Bluetooth 4.0 on request
Information Inquiry Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code
Liquid Crystal Display STS Smart automatically valve controlled anti-tamper Prepaid Water Meter 0


Meter Dimension

Size DN15 1/2” DN20 3/4 DN25 1”
Length(L) 165/190 190 225/260
Width(W) 99 99 103
Height(H) 104 106 114
Connecting Thread G3/4B G1B G1-1/4B

STS Smart automatically valve controlled anti-tamper Prepaid Water Meter 1
