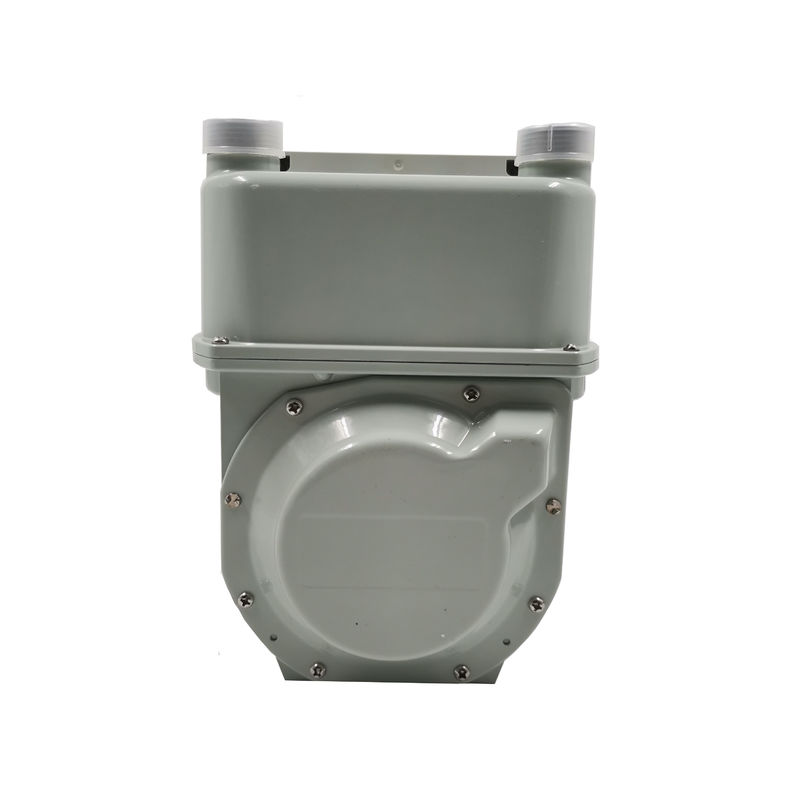

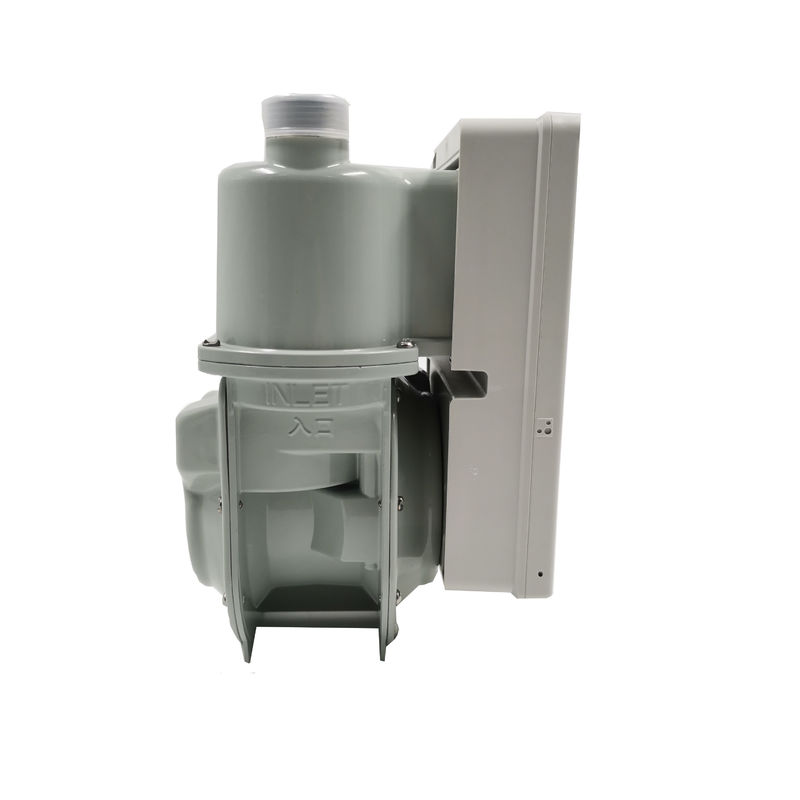

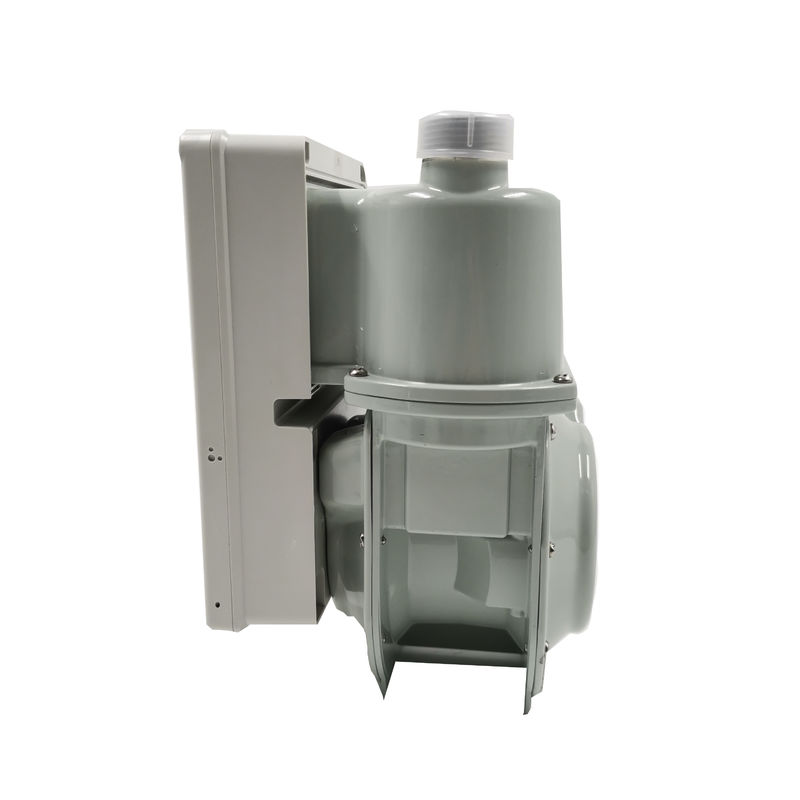

Name: Intelligent 4m3/H G4 Prepaid Gas Meter With LCD Diaplay
Brand: Hunan Stron Smart Co., Ltd
SKU: STG16-A
Price: 48.00 USD
Availability: InStock

Home > products > Prepaid Gas Meter >

Intelligent 4m3/H G4 Prepaid Gas Meter With LCD Diaplay

G4 prepaid gas meter

4m3/h prepaid gas meter

G4 intelligent gas meter

Place of Origin:

Hunan

Brand Name:

Stron

Certification:

STS

Model Number:

STG16-A

Request A Quote

Intelligent 4m3/H G4 Prepaid Gas Meter With LCD Diaplay

Product Details

Material:

Aluminum ABS

Color:

Gray

Charge Mode:

Prepayment

Type:

Keypad Prepaid Gas Meter

Battery Life:

6-8 Years

Feature:

Step Tariff

Function:

Anti-tamper

Display:

LCD

Weight:

2.040 Kg

Size:

G1.6/G2.5/G4

Highlight:

G4 prepaid gas meter

4m3/h prepaid gas meter

G4 intelligent gas meter

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Delivery Time

15 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, Western Union

Supply Ability

5000 set per month

High Pressure Air Flow Meter for Industrial with Output Pulse in Heavy-Duty Applications and Temperature -10ºC-50ºC

Get Best Price

Domestic Prepaid Gas Meter with Convoluted Diagram G1.6/G2.5/G4 Capacity English/Metric Index

Get Best Price

Video

LAN / WAN Communication Blood Glucose Test Meter More Than 6 Years Life Time for Accurate Results

Get Best Price

LAN / WAN Prepaid Gas Meter with Self-routering Meshwork Connection Type PLC To Concentrator

Get Best Price

86-0731-22421066

Contact Now

Product Description

G1.6/G2.5/G4 Step Tariff Integrated Keypad Prepayment Smart Gas Meter

Product introduction

STG16-A is integrated keypad prepaid smart gas meter launched by Stron company with independent intellectual property rights. It is electronic valve controlled prepayment gas meter with ultra-low power consumption. It adopts keypad to realize prepaid Function and bi-directional communication between gas meter and vending system for data transformation.

The aluminum ABS body base meter has been supplied and proved by millions of service connections for reliable and cost-effective consumption measurement. Prepayment function and excellent anti-tamper feature like magnetic field protection to help utilities for improving gas protection and consumer management.

Application

Measuring the volume of gas through gas pipes

Main Functions

Low Credit Alarm	When it is low credit,the buzzer will automatically give alarm
Prepayment	After making payment,users can get available gas then
Anti-tamper	Valve will automatically be closed after detecting magnetic field and open over event
Prepaid and post-paid switch	Charge can be prepaid or post-paid mode
Step Tariff	Step tariff can be set as agreed
Overdraft Collection	Overdraft can be collected daily or monthly
Communication	Available with AMI system to realize the function of remote reading
Information Inquiry	Users can check remaining credit and total purchased via short codes
Liquid Crystal Display	It displays digits or English words

Technical Specifications

Size	G1.6	G2.5	G4
Nominal Flow Rate	1.6 m³/h	2.5 m³/h	4 m³/h
Maximum Flow Rate	2.5 m³/h	4 m³/h	6 m³/h
Minimum Flow Rate	0.016 m³/h	0.025 m³/h	0.04 m³/h
Cyclic Volume	0.7dm³	1.2 dm³	2 dm³
Maximum working pressure	0.7 Bar	0.7 Bar	0.7 Bar
Pressure loss	<200 Pa	<200 Pa	<200 Pa
Maximum reading	99999	99999	99999
Working temperature	-20-50℃	-20-50℃	-20-50℃
Storage Temperature	-30-60℃	-30-60℃	-30-60℃
Error: Qmin≦Q≦0.1Qmax 0.1Qmax≦Q≦Qmax	±3	±3	±3
Error: Qmin≦Q≦0.1Qmax 0.1Qmax≦Q≦Qmax	±1.5	±1.5	±1.5

Meter dimension

Intelligent 4m3/H G4 Prepaid Gas Meter With LCD Diaplay 0

How to recharge smart prepaid gas meter

1.Please go to the local selling water business hall,to provide operator meter ID number (lD number printed on the water meter).Then tell the operator how much you want to buy and prepay.On the receipt, you can get a printed TOKEN "20(Digits)".

2.By the third party application or local mobile payment platforms with API where user can get 20 digits TOKEN by SMS in smart phone to recharge.And also users could check information by their smart phone.This is more popular among people since digital society are rapidly establishing and developing.
