Place of Origin:
Hunan
Brand Name:
Stron
Certification:
STS
Model Number:
STG16-S

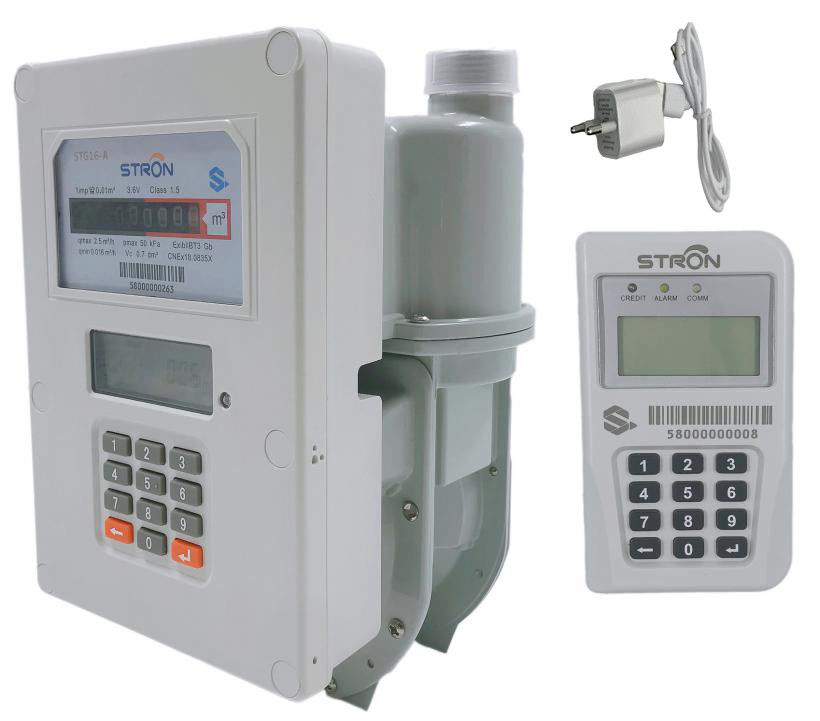

STS Standard Split Keypad Automatic valve controlling Prepaid Gas Meter
Stron Smart Split Keypad Gas Meter is an international STS standard prepaid gas meter. And can remotely control the valve switch.
Our product is a smart gas meter with an automatic valve.Gas occurs, therefore, able to timely close the gas valve, and an alarm to remind people to deal with the problem of gas leakage in time, effectively prevent the diffusion occurred after gas leakage, equipment safety accidents such as fire explosion, environment provides the safe guarantee for the use of gas, protect the life safety and property of users.In addition, when gas reflux occurs, the valve is automatically closed as a possibility of gas theft.Only when the main system confirms that this is not the gas theft behavior will it give the user the corresponding short code to cancel the gas theft alarm, and the user can continue to use the gas meter.This also protects the interests of suppliers, for each gas meter management can be more convenient.
Our gas meters are all STS certified.What is STS certification?STS is an acronym for the phrase Ship To Stock, which stands for direct warehousing without the need for another inspection it; Exemption system & GT;.This means that after the supplier's products have been certified, if a customer buys a product, it does not need to be inspected before it is put into storage for use.Because this certification is an international certification, it is generally accepted internationally, unless some countries need to do another kind of domestic certification for imported goods.Otherwise, goods with this certification can be marketed directly after receiving the goods.This saves the customer's time and avoids the need to spend most of the time to prove it when it is needed.At the same time, it also proves that the quality of our products is absolutely guaranteed and customers can rest assured to use.
Application:
Measuring the volume of gas through gas pipes.
Compliance with Standard
✽ ISO 9001 ; ISO 14001
✽ STS Certificated
Features:
Functions
1. Meter Recharge: By inputting 20 digits Token.
2. Low Credit Alarm: Alarm value can be set by inputting corresponding TOKEN.
3. Non-return valve: Non-return valve inside for preventing back-flow.
4. The integrated keypad of gas meter is offered to enter recharge TOKEN and check information by short codes.
5. The CIU is installed inside customer’s house, when the meter is kept away from customer’s reach in locked boxes or houses.
Metrological Parameters of different size
Size | G1.6 | G2.5 | G4 |
Nominal Flow Rate | 1.6 m3/h | 2.5 m3/h | 4 m3/h |
Maximum Flow Rate | 2.5 m3/h | 4 m3/h | 6 m3/h |
Minimum Flow Rate | 0.016 m3/h | 0.025 m3/h | 0.04 m3/h |
Cyclic Volume | 0.7dm3 | 1.2 dm3 | 2 dm3 |
Maximum working pressure | 0.7 Bar | 0.7 Bar | 0.7 Bar |
Pressure loss | <200 Pa | <200 Pa | <200 Pa |
Maximum reading | 99999 | 99999 | 99999 |
Working temperature | -20-50℃ | -20-50℃ | -20-50℃ |
Storage Temperature | -30-60℃ | -30-60℃ | -30-60℃ |
Error: Qmin≦Q≦0.1Qmax 0.1Qmax≦Q≦Qmax |
±3 | ±3 | ±3 |
±1.5 | ±1.5 | ±1.5 |
Meter Dimension
