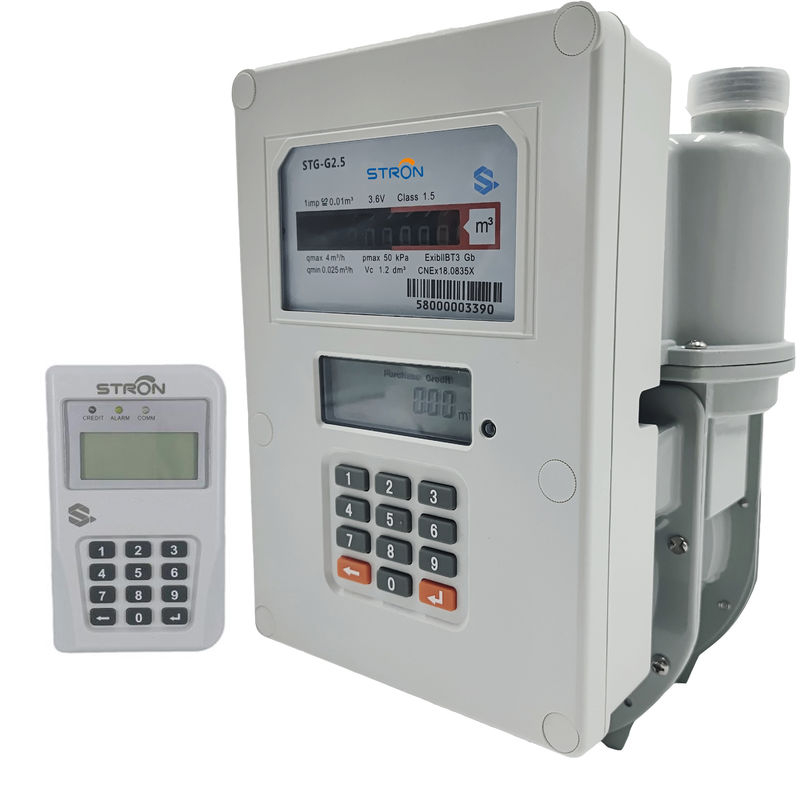

ISO 14001 4m3/H Smart Prepayment Gas Meter With LCD Diaplay

STS Standard Split Keypad Automatic valve controlling Shell material can be selected Prepaid Gas Meter

Stron Smart Split Keypad Gas Meter is composed of a Aluminum case or Steel case prepaid keypad gas meter.And can remotely control the valve switch.

Because each customer has different requirements for gas meter materials, our gas meter shells have two different materials.One is steel and the other is aluminum.The difference of two kinds of material, inevitable meeting has respective advantage and disadvantage to exist.

Because each customer has different requirements for gas meter materials, our gas meter shells have two different materials.One is steel and the other is aluminum.The difference of two kinds of material, inevitable meeting has respective advantage and disadvantage to exist.Aluminum cases have a higher color and lower density, so they weigh less and look better.Steel is stronger, more resistant to corrosion and oxidation, and can withstand higher temperatures than aluminum.In this way, the user can choose the gas meter of different materials according to the use environment and requirements.

Our product is a smart gas meter with an automatic valve.Gas occurs, therefore, able to timely close the gas valve, and an alarm to remind people to deal with the problem of gas leakage in time, effectively prevent the diffusion occurred after gas leakage, equipment safety accidents such as fire explosion, environment provides the safe guarantee for the use of gas, protect the life safety and property of users.In addition, when gas reflux occurs, the valve is automatically closed as a possibility of gas theft.Only when the main system confirms that this is not the gas theft behavior will it give the user the corresponding short code to cancel the gas theft alarm, and the user can continue to use the gas meter.This also protects the interests of suppliers, for each gas meter management can be more convenient.

Application:

Measuring the volume of gas through gas pipes.

Compliance with Standard

✽ ISO 9001 ; ISO 14001

✽ STS Certificated

Features:

1.  Automatic valve controlling;
2.  Ingress protection IP67 waterproof；
3.  Up to 6 years battery life;
4.  STS Standard;
5.  Real-time clock;
6.  Utilities can set step price into meter on request;
7.  Anti-tamper Magnetic field protection;
8.  LORA-RF communication (optional);
9.  Pay by mobile payment M-PESA, Alipay, MTN, Airtel, etc.

Functions

✽ Meter Recharge: By inputting 20 digits Token.

✽ Low Credit Alarm: Alarm value can be set by inputting corresponding TOKEN.

✽ Non-return valve: Non-return valve inside for preventing back-flow.

✽ The integrated keypad of gas meter is offered to enter recharge TOKEN and check information by short codes.

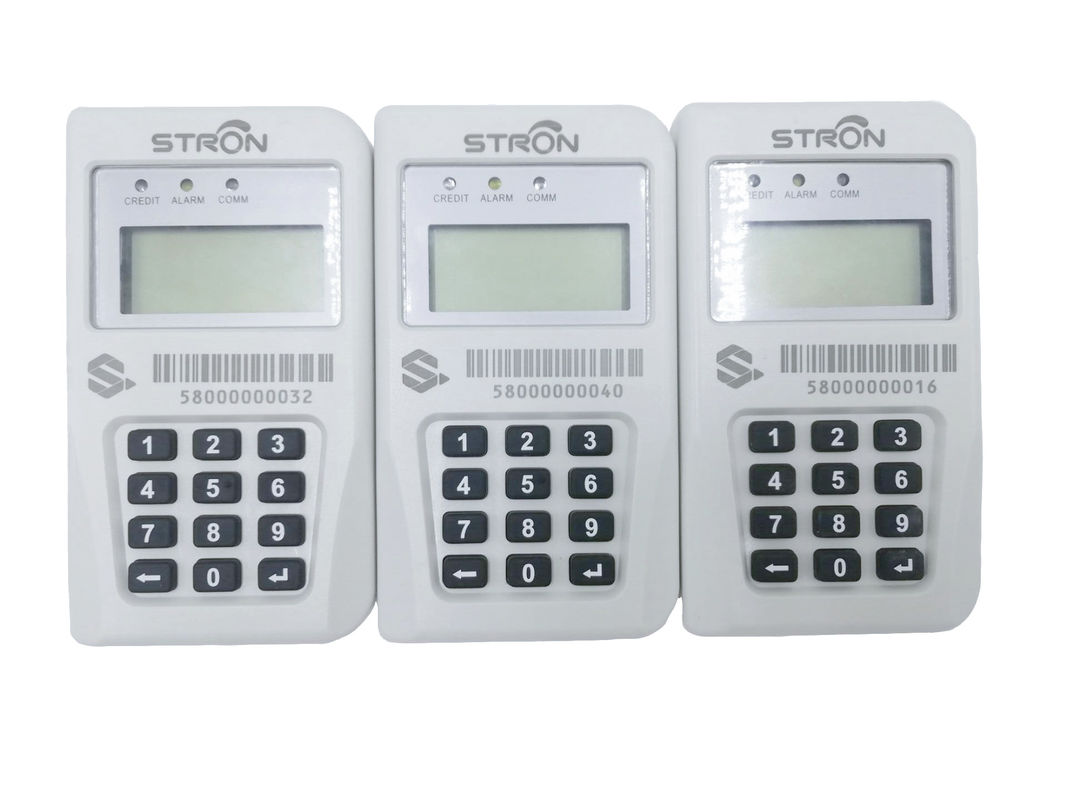

✽ The CIU is installed inside customer’s house, when the meter is kept away from customer’s reach in locked boxes or houses.

Metrological Parameters of different size

Meter Dimension
