30watt Residential Solar Energy Systems , 60HZ Portable Solar Home System

30W Solar Panel 6A/12.8V LiFePO4 Battery PayGo Electricity Indoor Solar Home Power System with Fan&Bulbs&Radio&Torch

1. ST688 is a reliable and environmental solar solution for off-grid areas

2. It can power DC Fan, Lights, Radio, Torch and your cellphone after few hours charging.

3. This product is equipped with high-efficiency solar panel, LiFePO4 battery, 12V DC port, and USB Mobile phone charging interface, convenient use and low operating cost.

4. Pay As You Go solution can make clean energy becomes more affordable, people can make payments on a daily, weekly or monthly basis.

5. Stronpay vending software can integrated with local mobile payment via API, people can easily pay with their mobile phone and get the recharge Token via GSM.

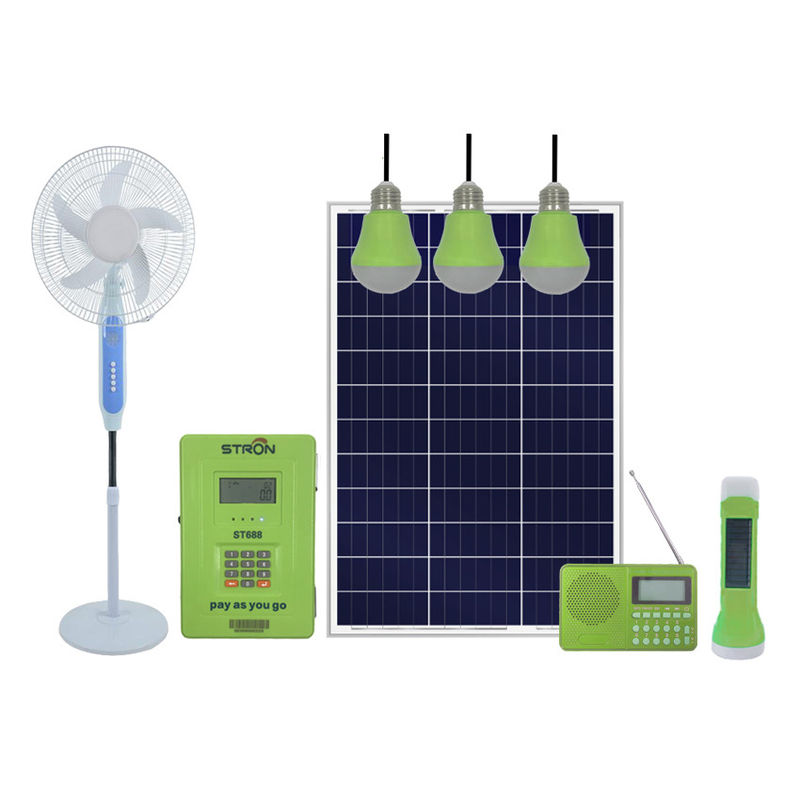

Components

a. 1×12.8V/6000mAh(LiFePO4) Contoller box

b. 1×30W Poly Crystalline Solar Panel

c. 3x 3W/300lm LED bulbs with 5M cables

d. 1xRadio,3.7V 2000mAH Li-ion Battery with Charging hole

e. 1x Torch 0.3W Poly-crystalline with 3.2V/400mAh LIFePO4 Battery

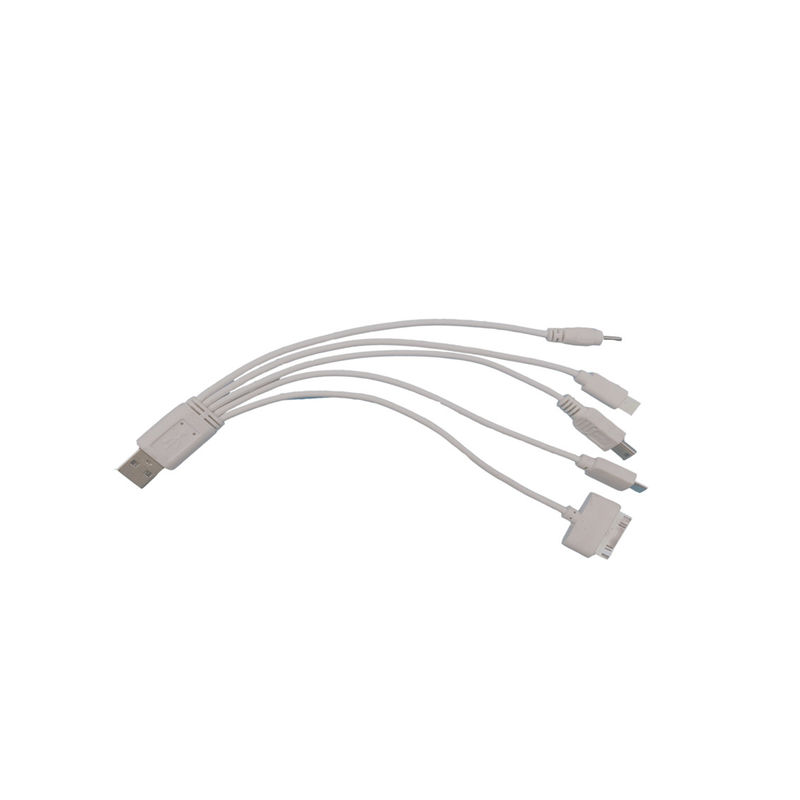

f. 1x 4-in-1 Mobile phone charger cable

g. 1x10W Fan

Durability Tests

1. Switch and connector cycling

2. Physical ingress protection test

3. High temperture and low temperture test

4. Transport vibration test

5. Salt spray test

Main Features

☀This product meet the Lighting Global Quality Standard, it has good quality and it's safe to use at home.

☀It is STS(Standard Transfer Specification) Compliant, can be recharged with our Stronpay vending software by inputting 20 digits Token.

☀The LiFePO4 Batterries have long life time more than 5 years and are able to be full recharged within 4 hours;

☀ The design of controller is easy to install, top-up and run.

☀ It has high quality with 2 years warranty.

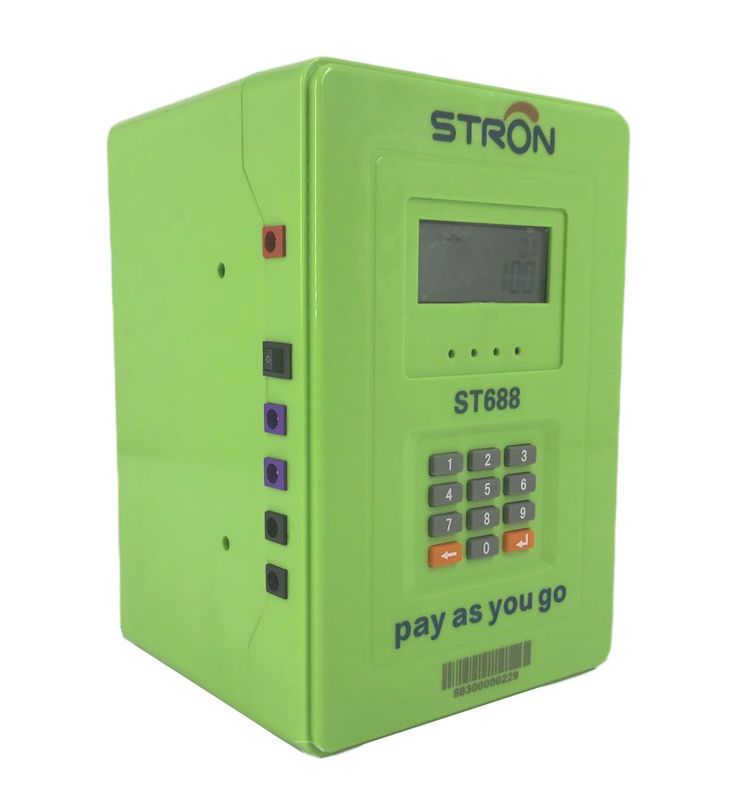

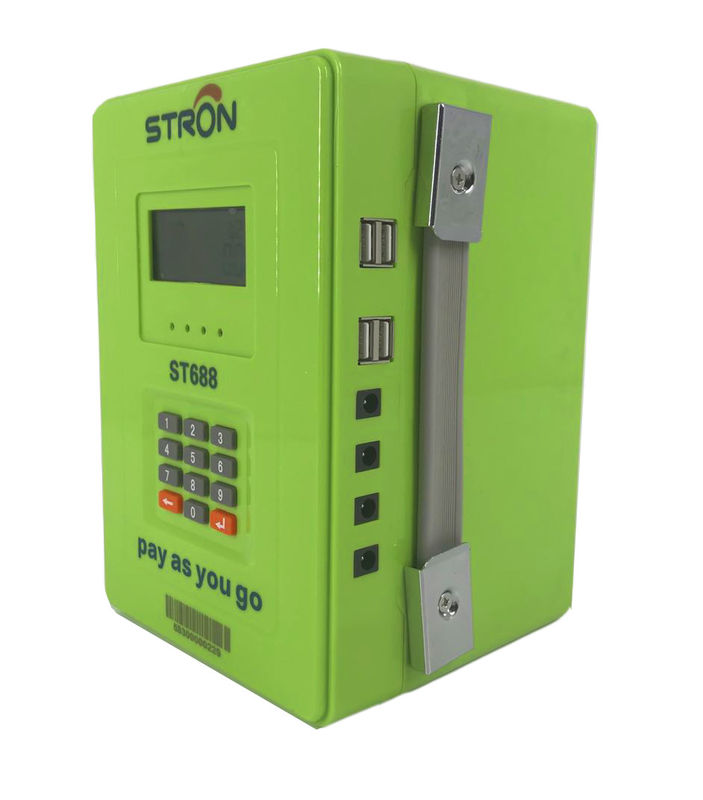

Solar Controller

As a low-cost and long-term benefits solar power supply product, the solar controller is the core of the PAYG solar home power system. It has 0-9 keypad, delete and enter buttons, indicators for charging, credit, switch and battery with Red/Green signal, PV module input and 4 LED output, 4 TV and Fan output and 2 USB output. It can power lights, torch, radio, TV, Fan and charge your mobile phone at the same time.

Two ways to recharge the solar home system:

1. Recharge with Stronpay vending software at the sales point

Vending operation:

Step 1: Login the web-based vending website by inputting the user name, company name and password.

Step 2: Register the solar number and customer information at the library center.

Step 3: Set the price fors for different customers

Step 4: Open an account to combine the meter,customer and price information

Step 5: Get the Token at the Top up center.

Step 6: Input the Token with keypad.

Step 7: Recharging successfully.

2. Top up with mobile phone via API

Stronpay vending software can easily integrated with local mobile payment via API, which is the agreement connecting the third party APP and our Stronpay vending software. People can recharge the solar with their mobile phone, the vending software will send a Token to the third party APP via API, then users get the recharge Token via GSM.

Business mode

➪ Service Mode

Customers no need to pay the deposit, but pay the PAYG fee daily or monthly as long as he want to use the solar home system.

➪ Rent to Own Mode: Customers rent the solar home system with a deposit and pay PAYG fee daily or monthly . Then they will own the product after a period of time(one year or two year).
