Place of Origin:
Hunan
Brand Name:
Stron
Certification:
STS
Model Number:
STE38-S

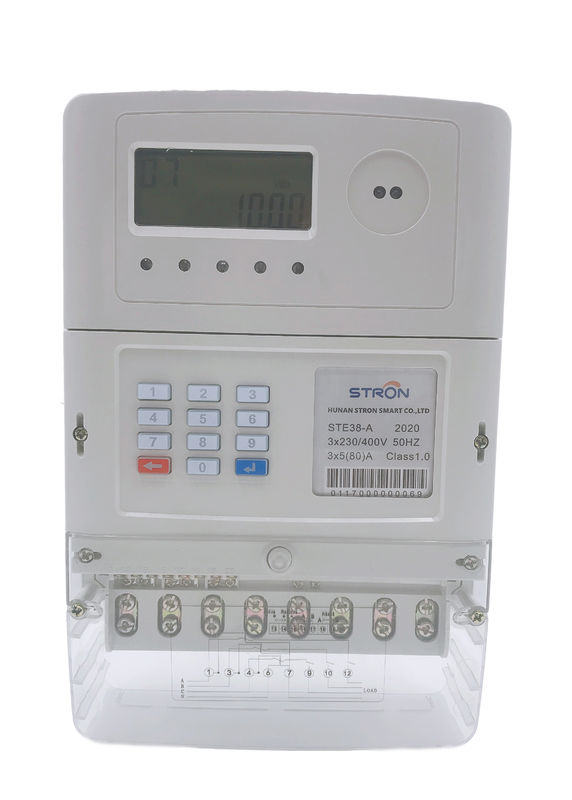

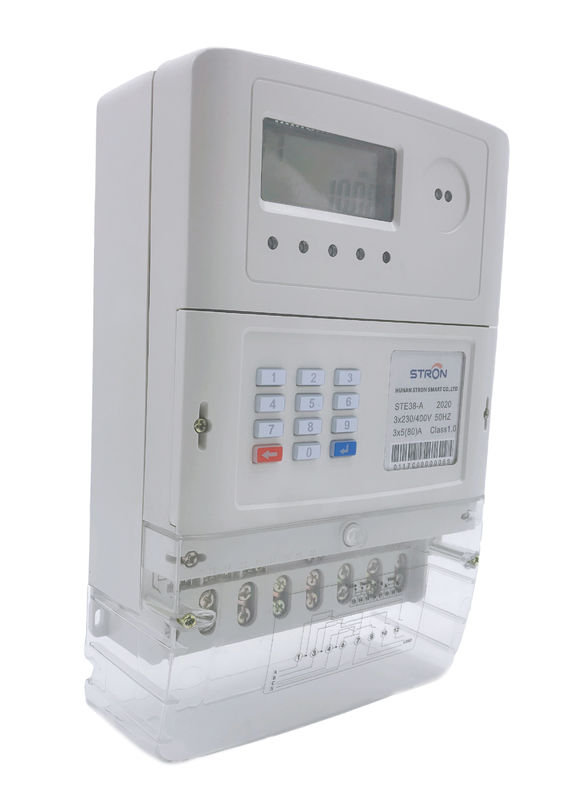

Ste38-s has professional and high-performance three-phase metering function, which is composed of three-phase prepayment watt hour meter and sub key CIU (customer interface unit). It provides keys for remote recharge and information query, which is its core competitiveness, advanced and easy to use. Lora radio frequency is used for communication between the instrument and CIU, which is effective and low cost. The communication distance is about 1km.
The keyboard function of CIU is the same as that of the meter itself. The user can input a 20 bit token to recharge or query information. Various information can be switched by inputting different graphic combinations. Users can easily retrieve metering data such as daily usage, monthly usage, current current and voltage, balance and last five input tokens.
The meter can also be integrated with African local mobile money for prepayment, like M-pesa, MTN, Airtel through API(Application Programming Interface), which is the agreement connecting the third party APP and our Stronpay vending software. In this way, users can top up electricity credit by mobile money without leaving the house and could check information by their telephone at hand with internet accessibility.
| Electrical Parameters | ||
| Nominal Voltage | 3×230V | |
| Working Voltage Range | 70%~120%Un | |
| Nominal Frequency | 50-60Hz | |
| Basic Current (Ib) | 10A | |
| Maximum Current (Imax) | 100A | |
| Starting Current (Ist) | 30mA | |
| Active Energy Constant | 400imp/kWh | |
| Active Energy Accuracy | Class 1.0 | |
| Reactive Energy Accuracy | Class 2.0 | |
| Power Consumption in Voltage Circuit | <2W <8VA | |
| Power Consumption in Current Circuit | <1VA | |
| Operation Temperature Range | -25℃-70℃ | |
| Storage Temperature Range | -40℃-85℃ | |
| Electro Magnetic Compatibility | ||
| AC Insulation Strength | 4kV at 50Hz during 1min | |
| Impulse voltage 1.2/50 us mains connections | 8kV | |
|
Electrostatic Discharges
|
Contact discharge | 8kV |
| Air discharge | 16kV | |
| Electromagnetic RF Field | 27MHz-500MHz | 10V/m |
| 100KHz-1GHz | 30V/m | |
| Fast transient burst test | 4kV | |
| Mechanical requirements | ||
| Meter shell Water proof protection Rate | IP54 | |
| Protection | Class II | |
Split Type Three Phase Prepaid Energy Meters IEC standard STS compliance
Basic Functionality
Function
Prepayment: STS Standard, recharge by input 20digits TOKEN
Low credit alarm: Alarm value can be set by inputting corresponding TOKEN
Prepaid and post-paid switch: Meter can be switch to prepaid mode or post-paid mode
Load control function: Meter can be programmed for load control threshold, If the current power is more than threshold. The meter will cut off user load.
Event recording: Meter can record the tamper event, open cover event, purchase event and TOKENS.
Self-testing: Meter has a self-test function, it can test the LCD screen and relay etc. and report the results directly
Anti-tamper: Meter will automatically close the valve after detection of magnetic field and open cover event
TOU Tariff: TOU Tariff can be set by inputting corresponding TOKEN
Overdraft Collection: Electricity Overdraft can be collected day by day or month by month
Communication: The meter is available with AMI system through LORA RF or Bluetooth 4.0 on request
Information Inquiry: Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code.
