Place of Origin:
China
Brand Name:
Stron
Certification:
Lighting Global
Model Number:
ST688

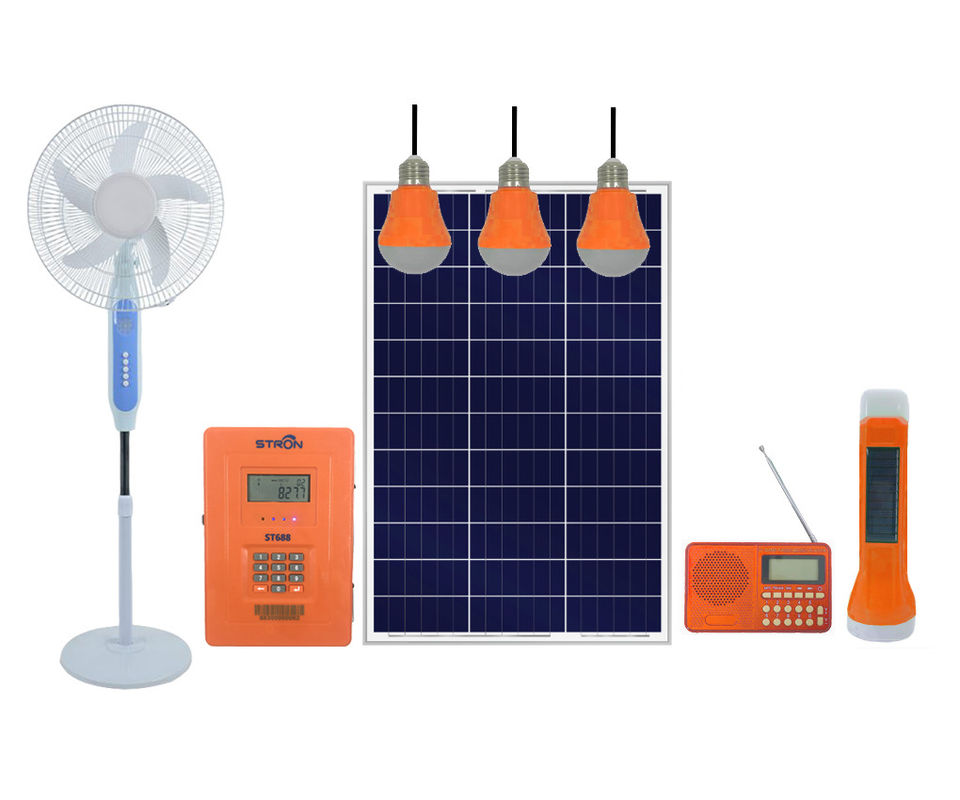

30W Solar Panel 6A/12.8V LiFePO4 Battery PayGo Electricity Indoor Solar Home Power System with Fan&Bulbs&Radio&Torch
| Components |

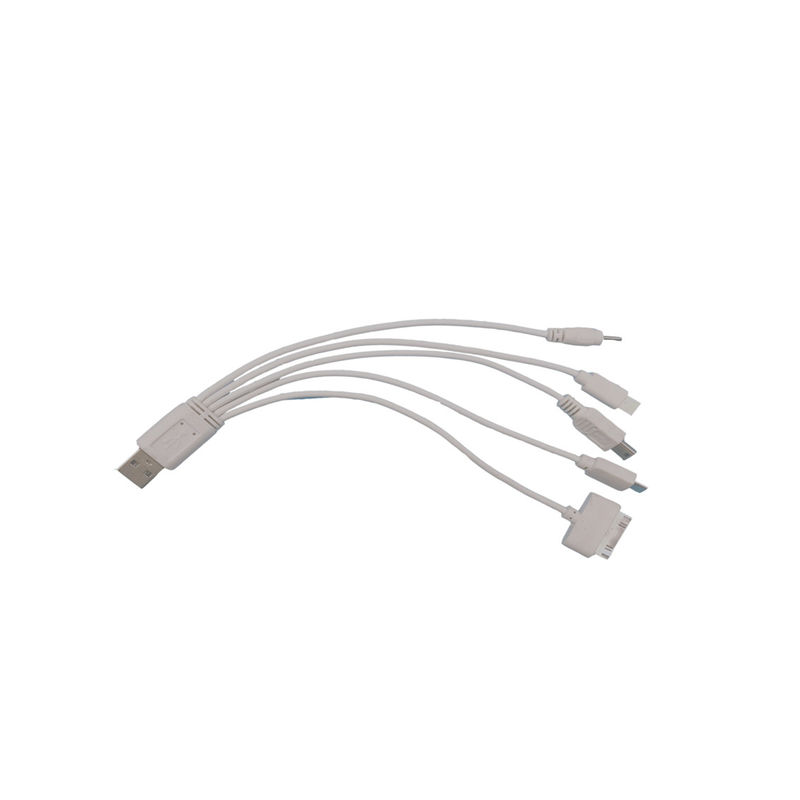

a. 1×12.8V/6000mAh(LiFePO4) Contoller box b. 1×30W Poly Crystalline Solar Panel c. 3x 3W/300lm LED bulbs with 5M cables d. 1xRadio,3.7V 2000mAH Li-ion Battery with Charging hole e. 1x Torch 0.3W Poly-crystalline with 3.2V/400mAh LIFePO4 Battery f. 1x 4-in-1 Mobile phone charger cable g. 1x10W Fan |
| Functions |
1. Plug-and-play easy operation solar home system 2. Bright LED bulbs for several rooms 3. Torch combined with 2 lighting points 4. Radio supports FM/AM/MP3 and can be charged by contorller box , Very convenient to carry around. 5. Fan has three settings for different air condition 6. 4 USB ports for mobile phone charging 7. Pay-as-you-go function available |
| Operation Temperature | 0℃-60℃ |
| Housing Material | ABS Plastic |
| Output Ports |
4 ports for Bulbs,4 ports for TV and Fan(12V/2A) 4 USB ports for charging(5V/2A) |
| Durability Tests |
1. Switch and connector cycling 2. Physical ingress protection test 3. High temperture and low temperture test 4. Transport vibration test 5. Salt spray test |
| Warranty | 2 years |
ST688 is STS standard portable smart pay as you go solar home system. This system can provide a low-cost and long-term benefits solar
power supply service to operator's customer group. This product is equipped with high-efficiency solar panel, LiFePO4 battery, 12V DC port,
and USB Mobile phone charging interface, convenient use and low operating cost.
It is a reliable and environmental solar solution for off-grid areas, which enables people power Lights to replace polluting and dangerous kerosene resource with clean and green solar energy. It also can charge Fan, Radio, Torch and mobile phone, make people's life more colorful.
Main Features
1. Meet the Lighting Global Quality Standard;
2. STS(Standard Transfer Specification) Compliant;
3. Provide Stronpay Vending Software for free;
4. by inputting 20 digits Token;
5. Batteries are able to be full recharged within 4 hours;
6. Easy to install, top-up and run;
7. High quality with 2 years warranty.
| Operation Temperature | 0℃-60℃ |
| Housing Material | ABS Plastic |
| Output Ports |
4 ports for Bulbs,4 ports for TV and Fan(12V/2A) 4 USB ports for charging(5V/2A) |
| Warranty | 2 years |

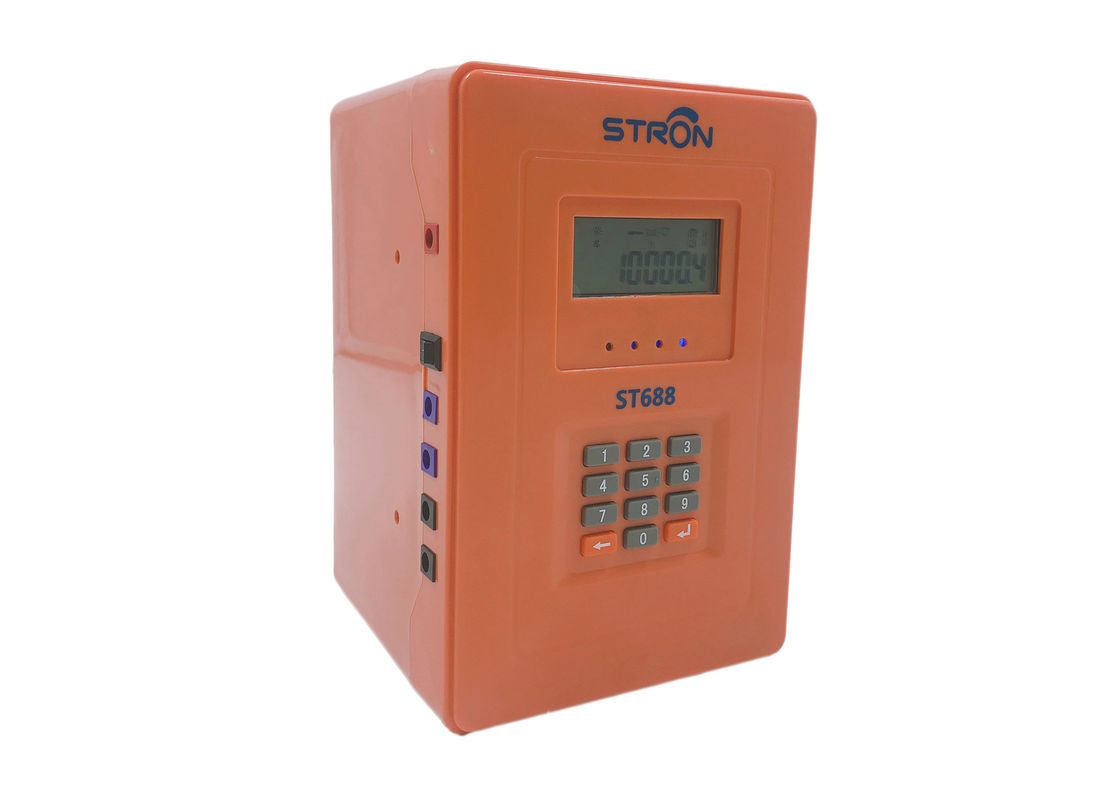

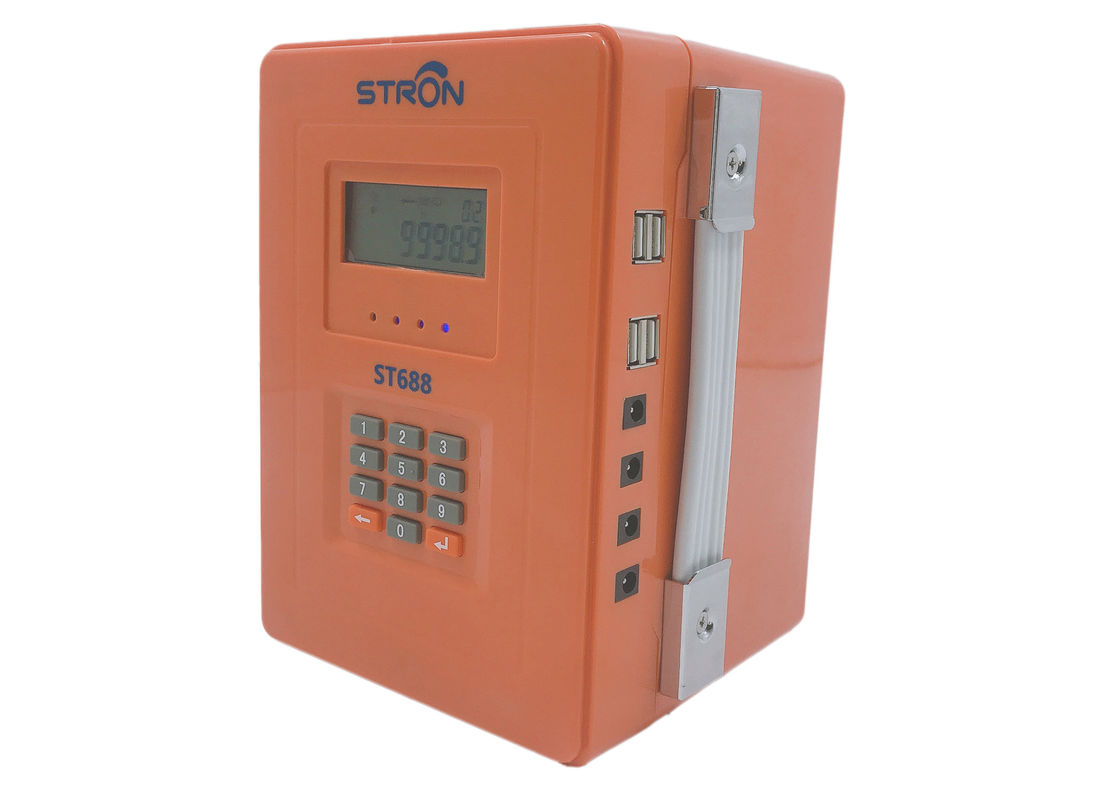

Solar Controller
| System indicator lights | Indicators for Charging, Credit and Battery with Red/Green signal On/off indicator for the controller |
| Top-up Keypad | 0-9 keypad, delete button and Enter button |
| Outputs | 4×LED light outputs, 2×USB output |
| Inputs | 1×PV module input |
| 1×PV module input | Overvoltage, reverse voltage and short circuit protection |
Charging Time:
☀Battery: 3.5 hours under sufficient sunlight.
☀Radio: 4-6 hours
☀Torch: 5-7 hours
Seperately Running Time:
☀ LED Light: 25.5 hours for one light, 8.5 hours for three lights
☀ DC Fan: 7.5 hours with full battery
☀ Radio: 5-7 hours after each full charging
☀ Torch: 4-8 hours after each full charging
Stronpay Vending Software
Stronpay Vending Software is a Window-based vending management system. It consists of Stronpay management server(CMS) and Stronpay management Client(CMC).
CMC provides administrative operations, such as customer and meter registration, vending, report. It can be run on an independent device in form of standalone software. Multiple clients can be connected to a single management server(CMS). CMC also allows multiple operators and access to system which is configured by the administrator.
Two ways to recharge the solar lighting system:
1. Recharge with Stronpay vending software at the sales point
operation:
1. Login the web-based vending website by inputting the user name, company name and password.
2. Register the solar number and customer information at the library center.
3. Set the price fors for different customers
4. Open an account to combine the meter,customer and price information
5. Get the Token at the Top up center.
6. Input the Token with keypad.
7. Recharging completely.
2. Top up with mobile phone via API
Stronpay vending software can easily integrated with local mobile payment via API, people can recharge the solar with their mobile phone and get the recharge Token via GSM.
Business mode
➪ Rent to Own Mode: Customers rent the solar home system with a deposit and pay PAYG fee daily or monthly . Then they will own the product after a period of time(one year or two year).
