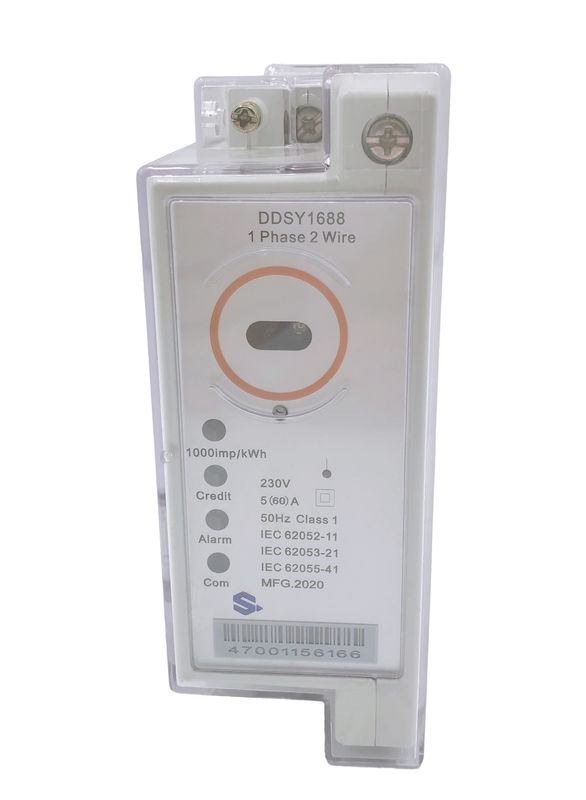

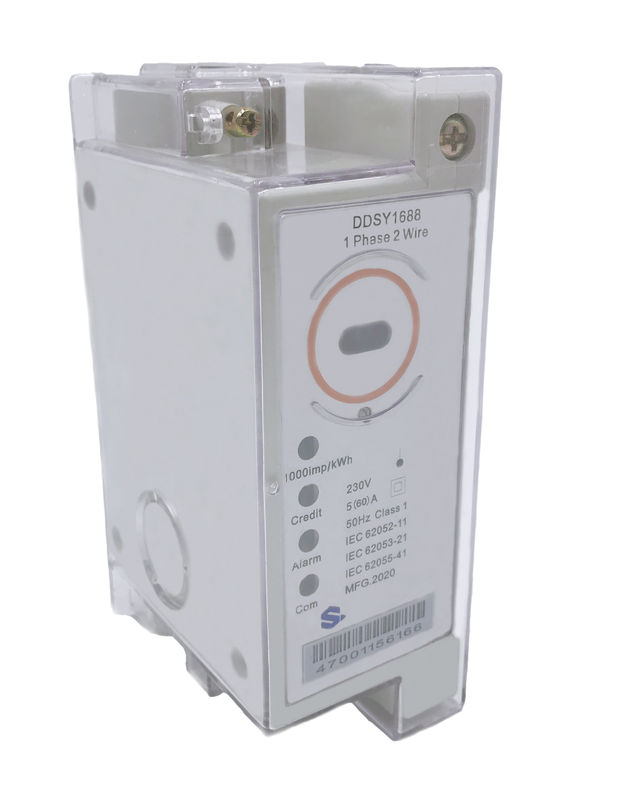

STE18-D Dinrail Mount Single Phase Split Electricity Meter with CIU

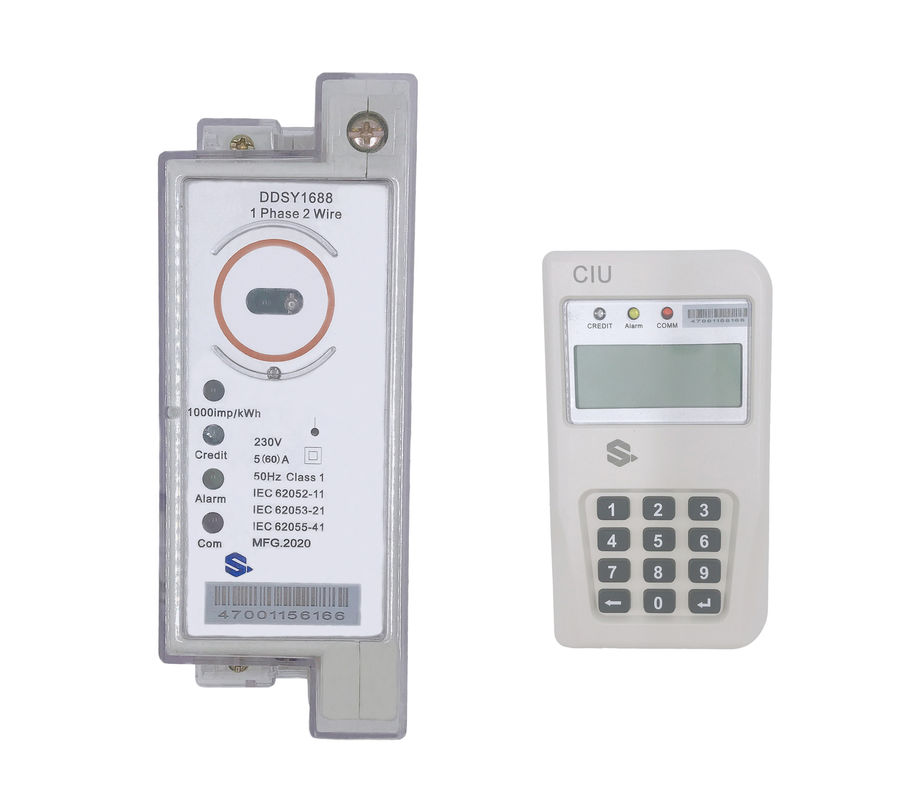

STE18-d adopts 35 mm DIN rail mounting and rod mounting accessories, which is composed of two parts. Customer interface unit (CIU) and metering control unit (MCU). The CIU is a keyboard based display installed anywhere in a consumer's home with a plug. MCU is the main instrument, which is installed in the information kiosk, instrument box far away from the consumer's home or the shell installed on the pole. MCU communicates with CIU through PLC, RF, Lora or 2 wireless communication. This off-line setting allows utilities and service providers to easily check at any time without having to visit the consumer's house, and reduces the chance of tampering fraud.

The meter can also be integrated with African local mobile money for prepayment, like M-pesa, MTN, Airtel through API(Application Programming Interface), which is the agreement connecting the third party APP and our Stronpay vending software. In this way, users can top up electricity credit by mobile money without leaving the house and could check information by their telephone at hand with internet accessibility.

Basic Functionality

Function Details

Prepayment STS Standard, recharge by input 20digits TOKEN, Trip on no credit or preset balance level

Low credit alarm Alarm value can be set by inputting corresponding TOKEN

Prepaid and post-paid switch Meter can be switch to prepaid mode or post-paid mode

Load control function Meter can be programmed for load control threshold, If the current power is more than threshold. The meter will cut off user load.

Event recording Meter can record the tamper event, open cover event, purchaseevent and TOKENS.

Self-testing Meter has a self-test function, it can test LCD and relay etc. and report the results directly

Anti-fraud features Meter will automatically close the valve after detection of magnetic field and open cover event

TOU Tariff TOU Tariff can be set by inputting corresponding TOKEN

Overdraft Collection Electricity Overdraft can be collected day by day or month by month

Communication The meter is available with AMI system through LORARF or PLC on request

Information Inquiry Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code

Electric Magnetic Compatibility
