Place of Origin:
Hunan Province
Brand Name:
Stron
Certification:
STS
Model Number:
STE18-A

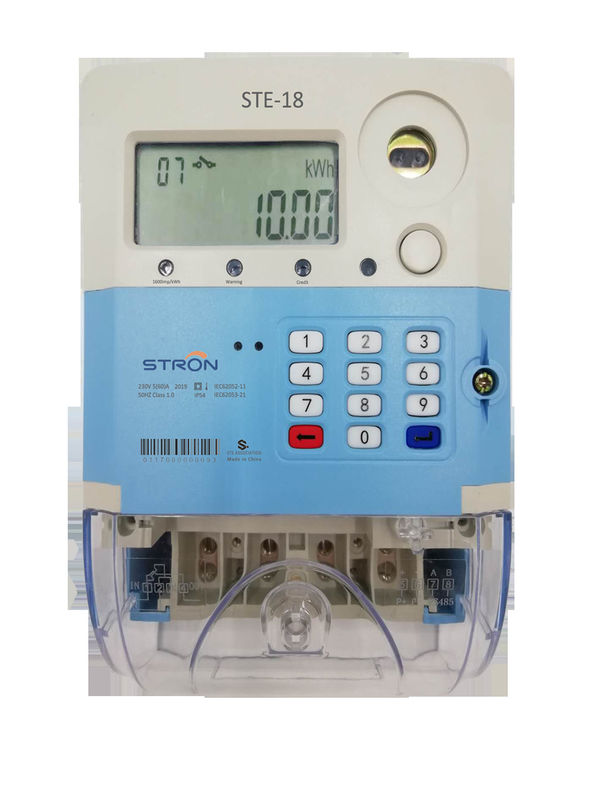

Stron Smart STS Monophase GPRS communication keypad electricity meter
The STE18-G is used for a wide range of smart metering applications. It combines latest 3DES security encryption technology and modular communication unit. The meter is allowing a basic current of 5 Amp while retaining a maximum current of 80 Amp and extended AMR/AMI functional features. It is a compact design in a BS8565 standard housing and maintains the rugged RF immunity withstand of 30V/m and IP54 rating, allowing it to operate in harsh environments.The meter works with a plug-in module for DLMS/COSEM compliant data collection and network communications. This modular design enables utility to select from PLC/RF/GPRS/3G and 4G LTE cellular data networks according to local conditions at low cost. Upgrade and maintenance will also become cost-effective by replacing the modules only instead of the entire meter.
GPRS Module
Frequency band Gsm850 / egsm900 / DCS 1800 / PCS 1900
automatic frequency band search
sensitivity <-108dbm
Maximum
transmission power GSM850/EGSM900 Cl as s4 (2W)
DCS1800/PCS1900 Classl (1W)
Phonological
characteristics It supports call, recording and playback functions, and
can directly drive 8 Ω speaker
Short message Support PDC mode and text mode,
support receiving and sending SMS and new SMS reminder
Support SMS Management: read, delete, storage
location and method, SMS list
GPRS features GPRS data downlink: up to 85.6 Kbps
GPRS data uplink: up to 85.6 Kbps coding format: cs-i, CS-2, CS-3 and CS-4
support Pap (password authentication protocol) protocol commonly used for PPP connection embedded protocol: TCP / UDP / ftp / PPP support packet broadcast control channel (pBCC)
Antenna
characteristics 50 Ω characteristic impedance
working
temperature -40 ℃ ~+85℃
Storage
temperature of ochre -40 ℃ ~+90℃
Working
power supply 5V/2A
Instantaneous
current Max 2.0A
Power saving
mode power consumption
1.40mA@DRX=2
1.14mA@DRX=5
1.03mA@DRX=9
CART 2 ordinary serial port, one upgrade debugging serial
port
SP I YES
I2C YES
Electrical Parameters
| Nominal Voltage | 230V |
| Working Voltage Range | 70%~120%Un |
| Nominal Frequency | 50-60Hz |
| Basic Current (Ib) | 5A |
| Maximum Current (Imax) | 80A |
| Starting Current (Ist) | 20mA |
| Active Energy Constant | 1000imp/kWh |
| Measurement Accuracy | Class 1.0 |
| Power Consumption in Voltage Circuit | <2W <8VA |
| Power Consumption in Current Circuit | <1VA |
| Operation Temperature Range | -25℃-70℃ |
| Storage Temperature Range | -40℃-85℃ |
Electric Magnetic Compatibility
| AC Insulation Strength | 4kV at 50Hz during 1min | |
| Impulse voltage 1.2/50 us mains connections | 8kV | |
|
Electrostatic Discharges
|
Contact discharge | 8kV |
| Air discharge | 16kV | |
| Electromagnetic RF Field | 27MHz-500MHz | 10V/m |
| 100KHz-1GHz | 30V/m | |
| Fast transient burst test | 4kV | |
| Protection | Class II | |
