ISO9001 Low Flow Gas Meter , G2.5 Intelligent Gas Meter

ISO9001 Low Flow Gas Meter , G2.5 Intelligent Gas Meter

  • ISO9001 Low Flow Gas Meter , G2.5 Intelligent Gas Meter
  • ISO9001 Low Flow Gas Meter , G2.5 Intelligent Gas Meter
ISO9001 Low Flow Gas Meter , G2.5 Intelligent Gas Meter
Product Details:
Place of Origin: Hunan
Brand Name: Stron
Certification: STS
Model Number: STG16-S
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Western Union
Supply Ability: 5000 set per month
Contact Now
Detailed Product Description
Material: Aluminum ABS Standard: STS
Charge Mode: Prepaid Type: Prepaid Gas Meter
Warranty: 2 Years Feature: Automatically Valve Controlled
Function: Gas Consumption Measurement Display: LCD
Size: G1.6/G2.5/G4 Input: Split Keypad
High Light:

G2.5 low flow gas meter

,

ISO9001 low flow gas meter

,

G2.5 intelligent gas meter

STS Standard Split Keypad Type Prepaid Gas Meter Meter

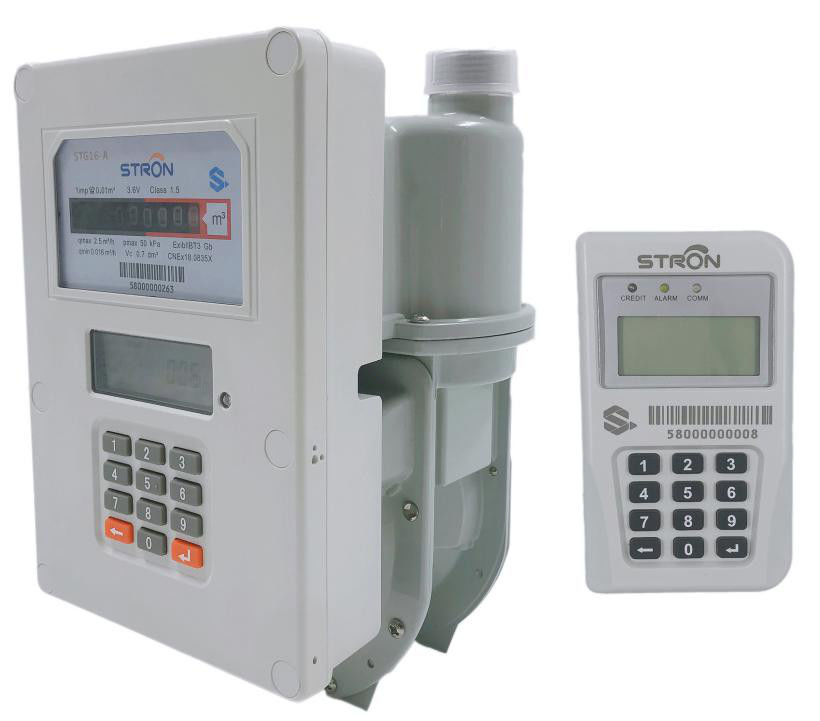

The Stron Smart STG16-S is an international STS standard prepaid gas meter with a separate customer interface unit(CIU).



Our gas meters are all STS certified.What is STS certification.STS is an acronym for the phrase Ship To Stock, which stands for direct warehousing without the need for another inspection it. This means that after the supplier's products have been certified, if a customer buys a product, it does not need to be inspected before it is put into storage for use.Because this certification is an international certification, it is generally accepted internationally, unless some countries need to do another kind of domestic certification for imported goods.Otherwise, goods with this certification can be marketed directly after receiving the goods.This saves the customer's time and avoids the need to spend most of the time to prove it when it is needed.At the same time, it also proves that the quality of our products is absolutely guaranteed and customers can rest assured to use.



Application:

Measuring the volume of gas through gas pipes.



Compliance with Standard

✽ ISO 9001 ; ISO 14001

✽ STS Certificated



Features:

  1.  Automatic valve controlling;
  2.  Ingress protection IP67 waterproof;
  3.  Up to 6 years battery life;
  4.  STS Standard;
  5.  Real-time clock;
  6.  Utilities can set step price into meter on request;
  7.  Anti-tamper Magnetic field protection;
  8.  LORA-RF communication (optional);
  9.  Pay by mobile payment M-PESA, Alipay, MTN, Airtel, etc.

Functions

✽ Meter Recharge: By inputting 20 digits Token.

✽ Low Credit Alarm: Alarm value can be set by inputting corresponding TOKEN.

✽Non-return valve: Non-return valve inside for preventing back-flow.

The integrated keypad of gas meter is offered to enter recharge TOKEN and check information by short codes.

The CIU is installed inside customer’s house, when the meter is kept away from customer’s reach in locked boxes or houses.



Metrological Parameters of different size

Size G1.6 G2.5 G4
Nominal Flow Rate 1.6 m3/h 2.5 m3/h 4 m3/h
Maximum Flow Rate 2.5 m3/h 4 m3/h 6 m3/h
Minimum Flow Rate 0.016 m3/h 0.025 m3/h 0.04 m3/h
Cyclic Volume 0.7dm3 1.2 dm3 2 dm3
Maximum working pressure 0.7 Bar 0.7 Bar 0.7 Bar
Pressure loss <200 Pa <200 Pa <200 Pa
Maximum reading 99999 99999 99999
Working temperature -20-50℃ -20-50℃ -20-50℃
Storage Temperature -30-60℃ -30-60℃ -30-60℃

Error: Qmin≦Q≦0.1Qmax

0.1Qmax≦Q≦Qmax

±3 ±3 ±3
±1.5 ±1.5 ±1.5



Meter Dimension



ISO9001 Low Flow Gas Meter , G2.5 Intelligent Gas Meter 0
