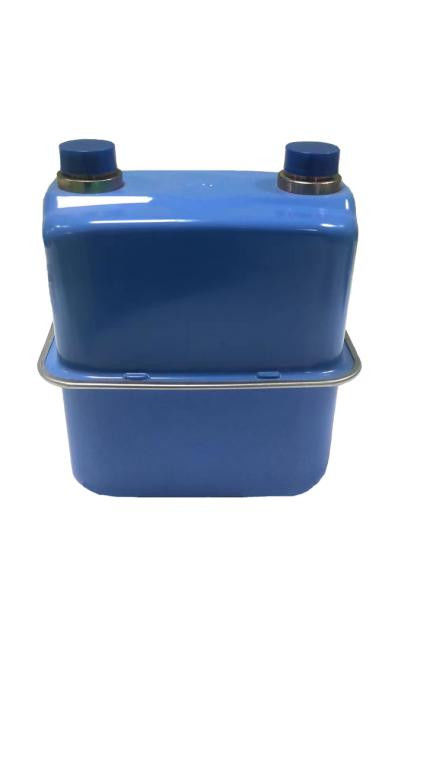

Atmos® Two-pipe IC Card prepaid diaphragm gas meter IG1.6S | IG2.5S | IG4S
The IGS series are credit gas meters that use encrypted IC cards as data carriers.Our IGS systems are best suited to the needs of natural gas supply companies.Through the IC card to read the gas flow, meter status or abnormal operation of the meter and other information.This allows the operator to obtain relevant data from the customer without on-site reading.
The meter is suitable for all kinds of gas media, such as: household gas, natural gas and methane, etc.Therefore, the scope of application is large, more convenient for users, equivalent to a multi-purpose table, especially affordable and convenient.The integrated calibration system coordinates the movement of the valve with respect to the optimal gas flow.Excellent linear error curves are guaranteed even at low flow rates.Qmin values remain stable and gauges are resistant to contamination due to optimal valve rotation characteristics.
In order to provide users with more assurance, the Atmos® IC Card Prepay Diaphragm Gas Meters meet the requirements of EN1359:1998/A1:2006 and OIML R137-1(2012) standards.
Performance characteristics
■Prepaid function
■Galvanized steel powder-coated housing for maximum corrosion resistance
■Fire resistant (HTB) up to 0.1 bar according to EN1359
■Integrated system to adjust the error curve
■Long-term stability due to usage of high-quality diaphragms
■Retrofittable with pulser
■Optional: Reverse flow preventer
■Housing material: Galvanized steel sheet or die-cast aluminum
■Gas media: Natural gas ,Town gas ,Biogas Liquid gas and Methane gas
■Overdrawing function
■Hint and warning function
■Anti magnetic interference
■Long-term stability due to usage of high-quality diaphragms
■Temperature and pressure compensation
■Optional: stair gas price
Technical data Atmos® IG1.6S | IG2.5S | IG4S
| Size | IG1.6S | IG2.5S | IG4S |
| Nominal Flow Rate | 1.6 m3/h | 2.5 m3/h | 4 m3/h |
| Maximum Flow Rate | 2.5 m3/h | 4 m3/h | 6 m3/h |
| Minimum Flow Rate | 0.016 m3/h | 0.025 m3/h | 0.04 m3/h |
| Cyclic Volume | 1.2 dm3 | 1.2 dm3 | 1.2 dm3 |
| Maximum working pressure | 0.5 Bar | 0.5 Bar | 0.5 Bar |
| Maximum Pressure loss | ≤ 2 mbar | ≤ 2 mbar | ≤ 2 mbar |
| Maximum reading | 99999.9998 | 99999.9998 | 99999.9998 |
| Minimum reading | 0.0002 | 0.0002 | 0.0002 |
| Working temperature | -20-55℃ | -20-55℃ | -20-55℃ |
| Storage Temperature | -30-60℃ | -30-60℃ | -30-60℃ |
| Pulse value | 0.01 or 0.1 m3/pulse | 0.01 or 0.1 m3/pulse | 0.01 or 0.1 m3/pulse |
| Accuracy class | Class 1.5 | Class 1.5 | Class 1.5 |
| Working voltage | 4.5 / 6 VDC | 4.5 / 6 VDC | 4.5 / 6 VDC |
| Quiescent current | <20 uA | <20 uA | <20 uA |
| Maximum current | <300mA | <300mA | <300mA |
| Weight | 2.2kg | 2.2kg | 2.2kg |
|
Error: Qmin≦Q≦0.1Qmax 0.1Qmax≦Q≦Qmax |
±3 | ±3 | ±3 |
| ±1.5 | ±1.5 | ±1.5 |
Dimensions Diaphragm gas meter Atmos ® IG1.6S | IG2.5S | IG4S
| A | 110±0.50mm | 130±0.50mm | |||
| C | 218mm | 226mm | |||
| B | M30×2-6g | G¾B | G7/8B | NPT¾’’ |
