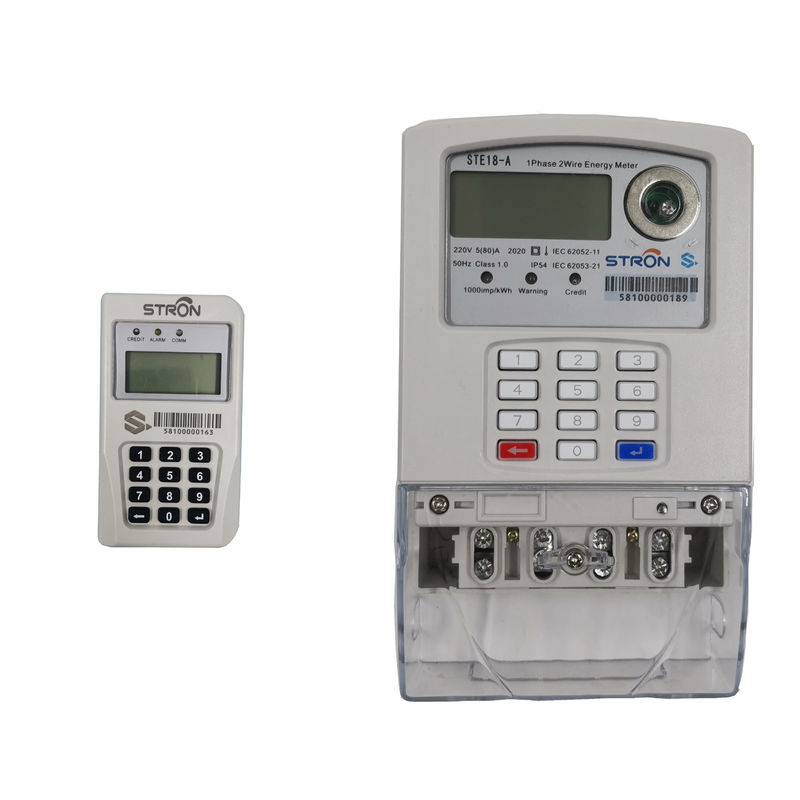

STS 5A Smart Electricity Meter Single Phase With Split Keypad

STS Class A Split Keypad Single Phase Smart Prepaid Electricity Meter With CIU

Product introduction

STE18-S is a split keypad single phase prepaid energy meter with CIU supporting RF-LoRa communication.It is based on STS standard and has long life.The energy meter is 1phase 2 wire,50Hz frequency,class1.0,1000imp/kWh,IP54 protection degree,IEC 62052-11 industrial standard.

First of all, the prepaid electricity meter solves the problem of the difficulty in charging property fees and guarantees the capital of the property. The prepaid electricity meter needed to be paid before the user uses the electricity and then which prevents the deadbeat from not paying the electricity fee.The electricity supply will be automatically switched off if the meter does not pay the electricity fee.

Secondly, it helps the property to solve the problem of capital shortage. Because it is prepayment management, users have to pay first and then use electricity. The property can always occupy the users’ money for buying electricity, which is conducive to the operation of funds.

Finally, it is convenient for property payment. The payment of prepaid meters can be coordinated with the system payment, which can be paid directly on mobile devices. For example, the prepaid remote meter reading system developed by our company can be paid on the third party APP, which greatly facilitates the payment of users and is conducive to improving the service quality of property.

Main functions

●Measurement function:measure the user’s electricity consumption over a period of time.

●Prepayment:the prepaid electricity meter needed to be paid before the user uses the electricity and then which prevents the deadbeat from not      paying the electricity fee

●Low credits alarm:if the no credits in the energy meter,it automatically will be switched off.

●Optical interface:through the handheld infrared meter reading machine, utility can read the electricity data of the meter.

●TOU tariff:utilities can set step price on request.

●Anti-tamper:meter will automatically close the switch after detection of magnetic field and cover-opening event.

●Optional communication module:RF-LoRa module supports remote connection within 400 meters.

●Memory function:data will not be lost after powering off, and can be recovered after powering on.

●Liquid Crystal Display:electricity consumption and remaining can be displayed.

●Self-testing:meter has a self-test function, it can test LCD and relay etc,and report the results directly.

Electrical parameters

Electric magnetic compatibility

Meter dimension

How to recharge prepaid electricity meter

1.By local sales point or handheld mobile vending unit

Going to local sales point to buy electricity is the most common way to recharge where they will give user a TOKEN generated by Stronpay vending software.

2.Via the third party platform or local mobile payment with API

API is the agreement connecting the third party APP and our Stronpay vending software.And API makes it possible for users to recharge on the third party APP by their smart phone. They will receive the TOKEN in the form of SMS,then input TOKEN to recharge and will get electricity.

3. Recharge by AMI System

DCU will capture data by GPRS to head-end AMI system where remote recharge is available.TOKEN will be generated by AMI system which has the data of the prepaid energy meter.
