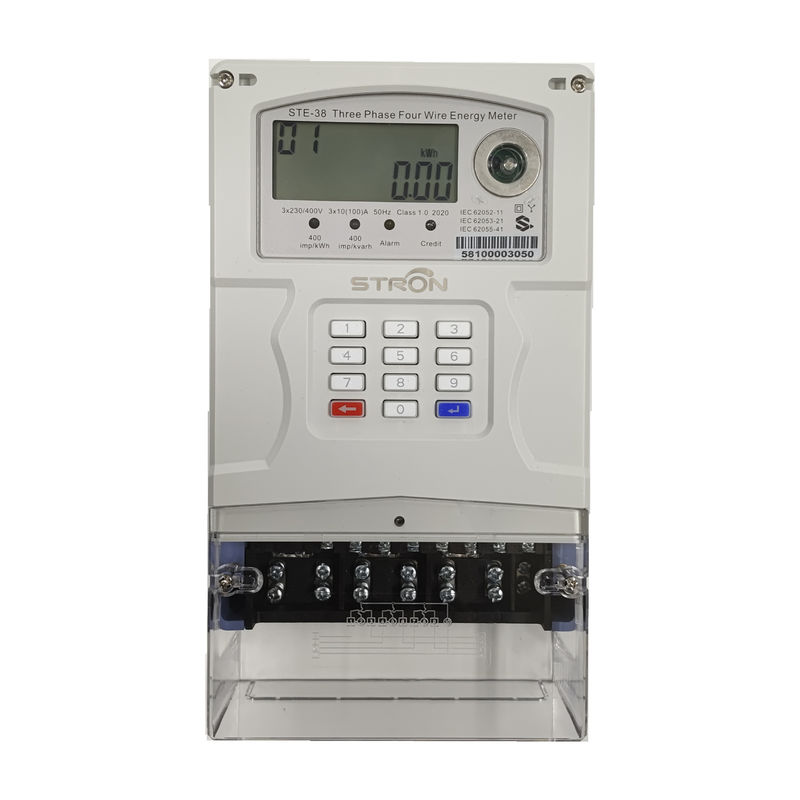

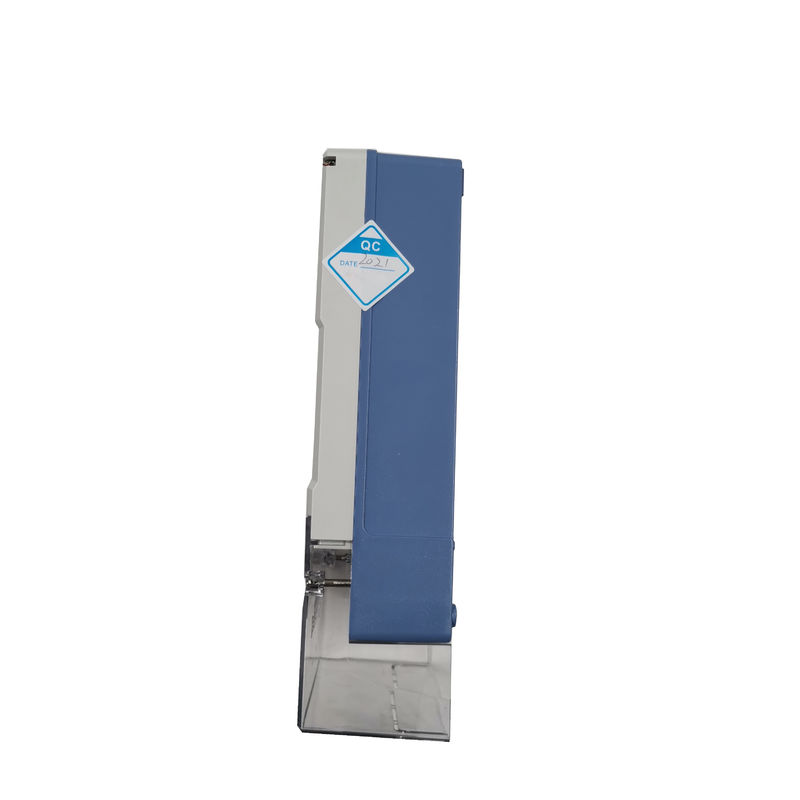

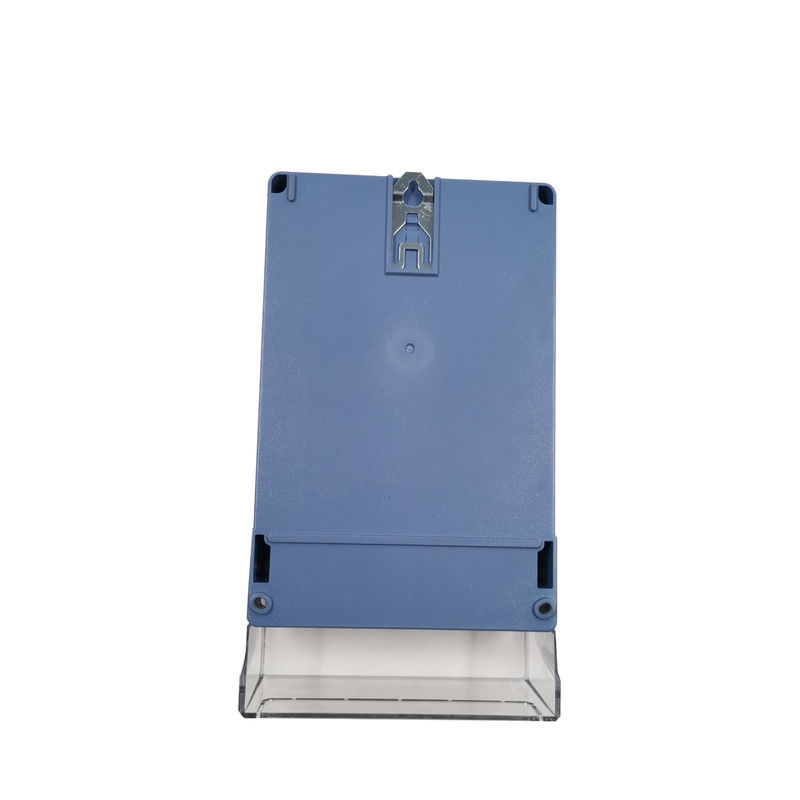

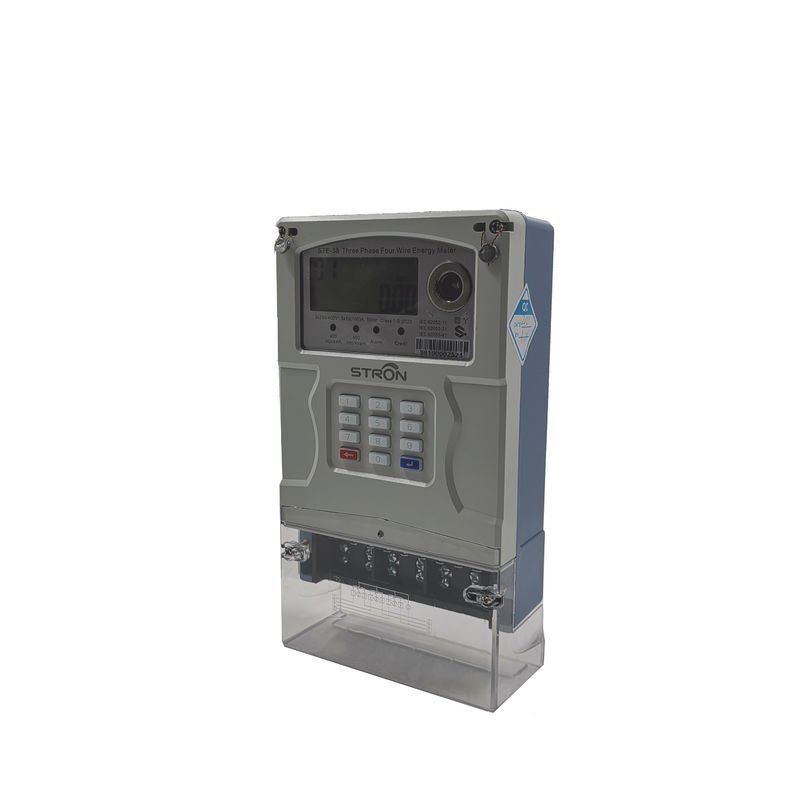

STS 100A 3 Phase Smart Electricity Meter With Integrated Keypad

STS 100A 3 Phase Smart Electricity Meter With Integrated Keypad

  • STS 100A 3 Phase Smart Electricity Meter With Integrated Keypad
  • STS 100A 3 Phase Smart Electricity Meter With Integrated Keypad
  • STS 100A 3 Phase Smart Electricity Meter With Integrated Keypad
  • STS 100A 3 Phase Smart Electricity Meter With Integrated Keypad
STS 100A 3 Phase Smart Electricity Meter With Integrated Keypad
Product Details:
Place of Origin: Hunan
Brand Name: Stron
Certification: STS
Model Number: STE38-A
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Delivery Time: 14 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 set per month
Contact Now
Detailed Product Description
Type: Prepaid Electricity Meter Feature: Long Life
Standard: STS Customization: OEM&ODM
Material: Plastic Nominal Voltage: 3×230V
Active Energy Constant: 4000imp/kWh Basic Current (Ib): 10A
Maximum Current (Imax): 100A Display: Digital Only
High Light:

100A 3 phase smart electricity meter

,

STS smart electricity meter

,

100A 3 phase smart kwh meter

STS Integrated Keypad Three Phase Smart Digital Prepaid Electricity Meter



Product introduction



Stron STE38-A is STS integrated keypad three phase smart digital prepaid electricity meter with multiple function such as prepaid function,memory function: display function,detection function,accurate billing.It is portable design and can be put communication modules inside.



The importance of smart energy meter



Smart meters can provide a powerful help to realize the automation of smart grid.It can monitor the running state of the power grid in real time, and can track and detect the whole process of users' power consumption, so as to optimize the power consumption scheme and improve the efficiency of the use of electricity.



Through the supervision of smart electricity meters, it can standardize the way of electricity consumption of users and achieve the goal of electricity saving.In the next stage, the development direction of smart meter technology is: firstly, the trace-ability of metering original data and the relative separation of non-metering functions;The second is to dual-core, multi-core, data sharing and security development, the third is the communication and network technology to innovate and upgrade.



Electrical parameter



Norminal Voltage 3×230V
Working Voltage Range 70%~120%Un
Nominal Frequency 50-60Hz
Basic Current (Ib) 10A
Maximum Current (Imax) 100A
Starting Current (Ist) 30mA
Active Energy Constant 4000imp/kWh
Active Energy Accuracy Class 1.0
Reactive Energy Accuracy Class 2.0
Power Consumption in Voltage Circuit <2W <8VA
Power Consumption in Current Circuit <1VA
Operation Temperature Range -25℃-70℃
Storage Temperature Range -40℃-85℃



Electric magnetic compatibility



AC Insulation Strength 4kV at 50Hz during 1min
Impulse voltage 1.2/50 us mains connections 8kV

Electrostatic Discharges



Contact discharge 8kV
Air discharge 16kV
Electromagnetic RF Field 27MHz-500MHz 10V/m
100KHz-1GHz 30V/m
Fast transient burst test 4kV
Protection Class II



Main characteristics and functions



●Ingress protection IP54 waterproof

●Up to 8 years battery life

●Remote connection/disconnection(optional)

●STS Standard

●Real-time clock

●Utilities can set TOU price into meter on request

●Anti-tamper Magnetic field protection

●RF-LoRa communication (optional)

●Pay by mobile payment like M-PESA, Alipay, MTN, Airtel, etc

●Prepayment,after recharge,then get electricity

●Self-testing,can test LCD and relay etc. and report the results directly

●Information inquiry,consumer could check the data like credit Remain, total purchased and total credit by inputting the short code

●Low credit alarm,alarm value can be set by inputting corresponding TOKEN

●Prepaid & post-paid switch

●Event recording,meter can record the tamper event, cover-opening event, purchase event and TOKENS



Recharge solutions introduction



1. By Stronpay vending Software

When it it no credits,the meter will switch off,users can recharge by going to local sales point or use handheld mobile vending unit.Once they get the 20 digits TOKEN,input it by integrated keypad and will recharge successfully.



2.By the third party platform or local mobile payment with API



In some areas,utility is too far and it takes users too much time to go there.Now users can directly use the third party APP to buy electricity,normally they will receive the TOKEN by SMS and enter it to the meter,then recharge completes.



3.By the AMI System

AMI System is a remote reading system based on GPRS and RF-LoRa connected with energy meters where online recharge is available.
