Place of Origin:
China
Brand Name:
Stron
Certification:
Lighting Global
Model Number:
ST1388
PayGo Solar Home System 80W Mini Power Generator with Telivision&Fan&Radio&Torch&Lambs
ST1388 is a reliable and environmental solar solution for off-grid areas, which enables people replace polluting and dangerous kerosene resource with clean and green solar energy. It can power LCD TV, DC Fan, Lights, Radio, Torch and your cellphone after few hours charging.
The Pay As You Go solution can make clean energy becomes more affordable, people can make payments on a daily, weekly or monthly basis. The solar controller is able to be top up with recharge Tokens generated by Stronpay vending software, which can integrated with local mobile payment via API, people can easily pay with their mobile phone and get the recharge Token via GSM.
Main Features
Specifications

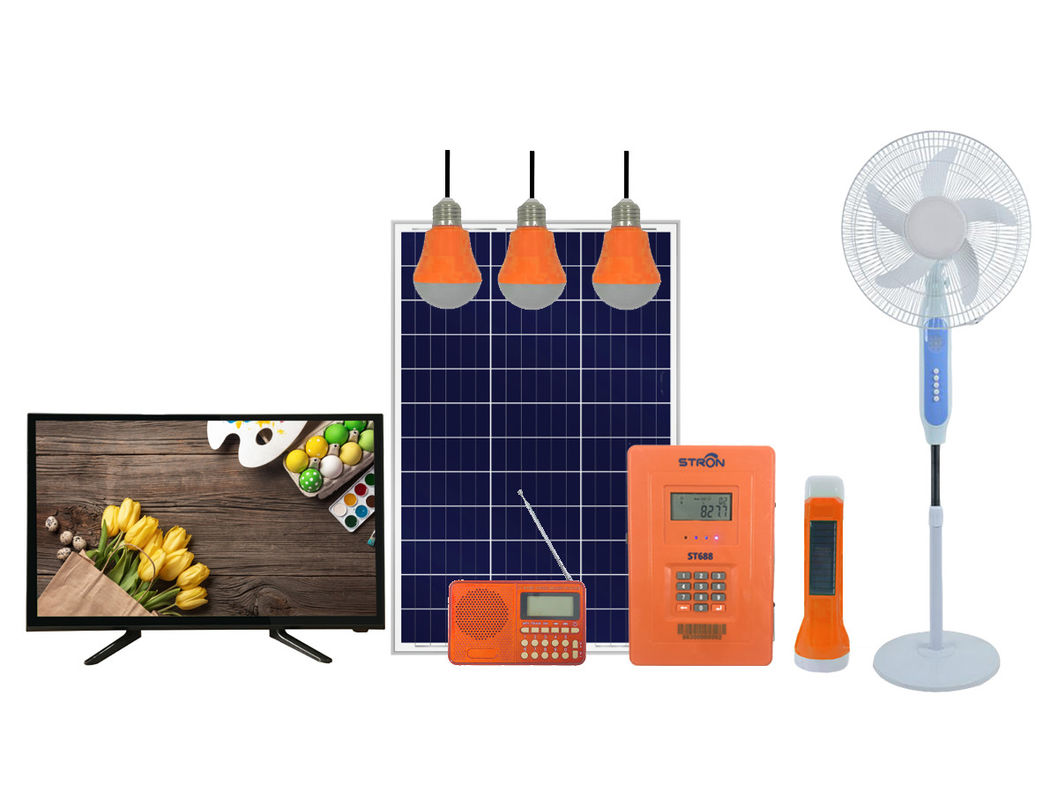

| Components |

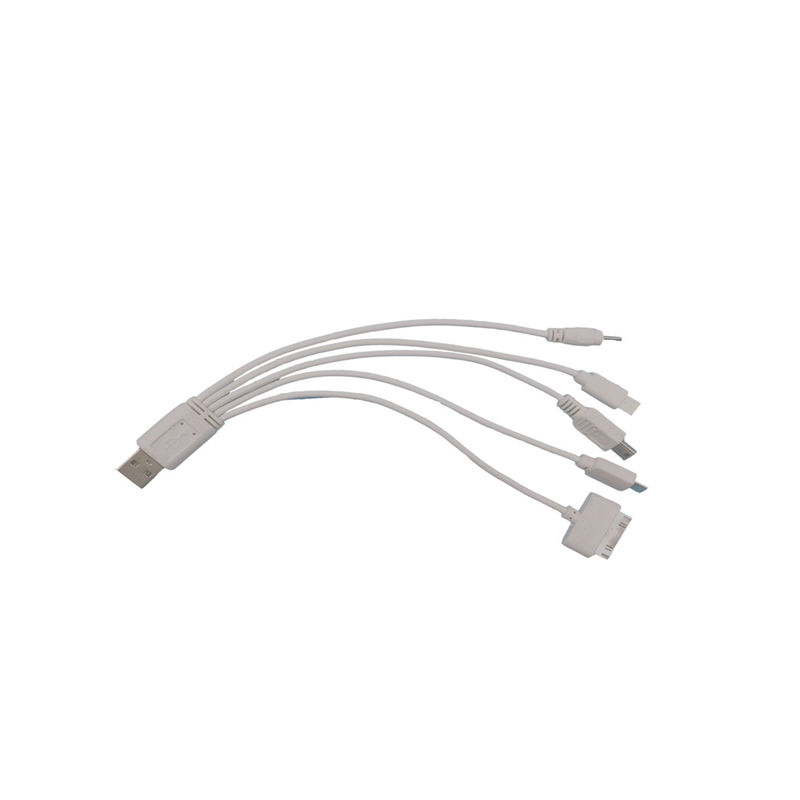

1×12.8V/24000mAh(LiFePO4) Contoller box 1×80W Poly Crystalline Solar Panel 3x 3W/300lm LED bulbs with 5M cables 1x32inch 22W DC TV(T2+S2) 1x10W Fan 1xRadio,3.7V 2000mAH Li-ion Battery 1x Torch 3.2V 400mAH Li-ion Battery 1x 4-in-1 Mobile phone charger cable |
| Function |
1. Plug-and-play easy operation solar home system 2. Bright LED bulbs for several rooms 3. Torch combined with 2 lighting points 4. Radio supports FM/AM/MP3 and can be charged by contorller box , Very convenient to carry around. 5. TV supports TV channels in all countries 6. Fan has three settings for different air condition 7. 2 USB ports for phone charging 8. Pay-as-you-go function available |
| Operation Temperature | 0℃-60℃ |
| Housing Material | ABS Plastic |
| Output Ports |
4 ports for Bulbs,4 ports for TV and Fan(12V/2A) 4 USB ports for charging(5V/2A) |
| Durability Tests |
1. Switch and connector cycling 2. Physical ingress protection test 3. High temperture and low temperture test 4. Transport vibration test 5. Salt spray test |
| Warranty | 2 years |
Charging Time:
☀Battery: 5hrs under sufficient sunlight.
☀Radio: 4-6hrs
☀Torch: 5-7hrs
Seperately Running Time:
☀ LED Light: 102hrs for one light, 34hrs for 3 lights
☀ DC Fan: 30hrs with full battery
☀ DC TV: 14hrs with full battery
☀ Radio: 5-7hrs after each full charging
☀ Torch: 4-8hrs after each full charging

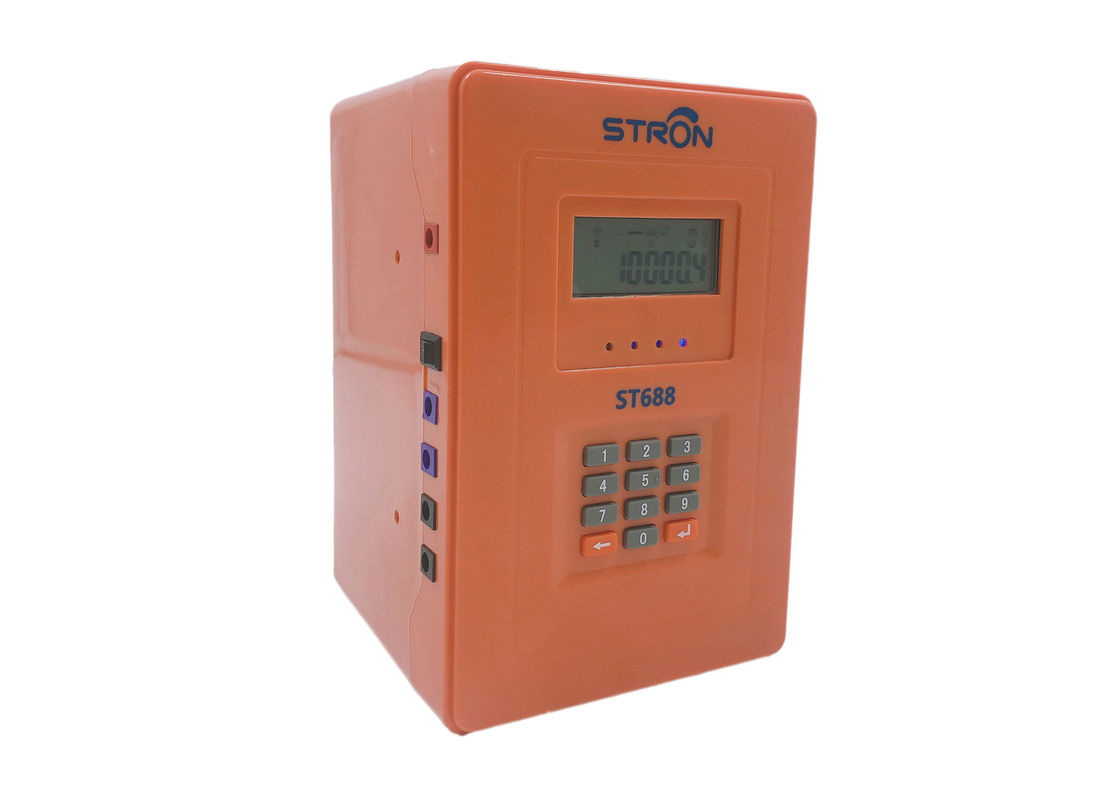

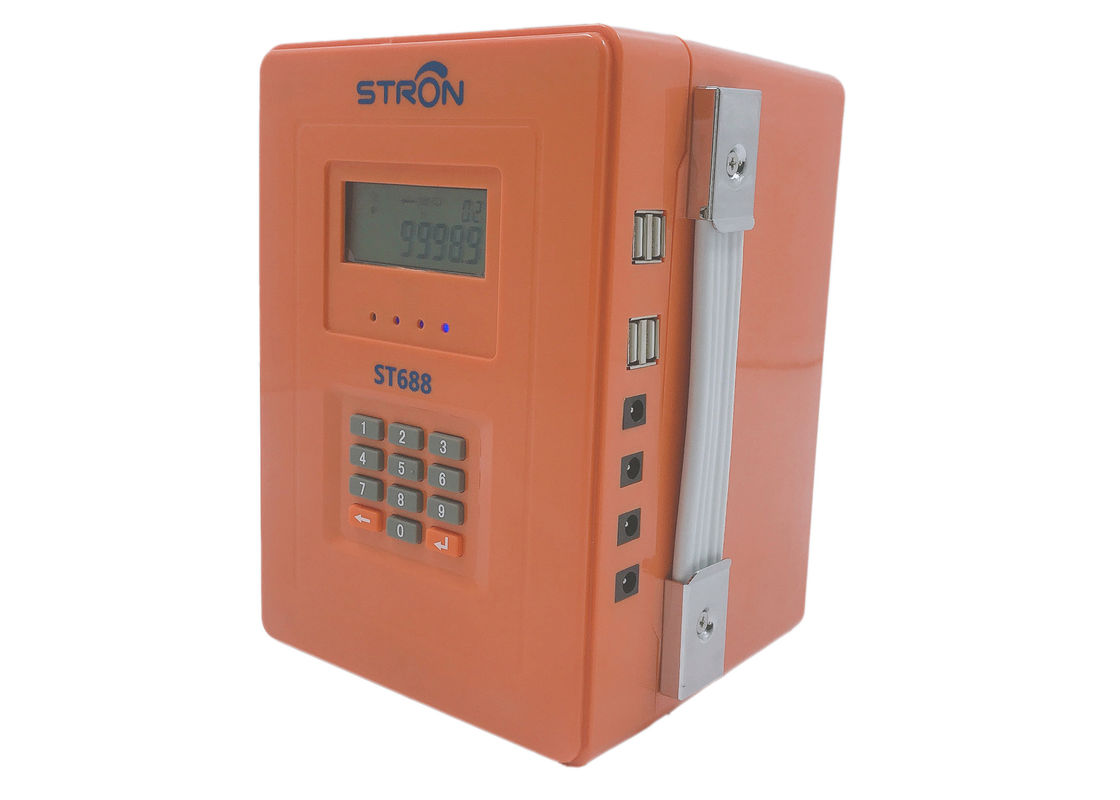

Solar Controller
| System indicator lights | Indicators for Charging, Credit and Battery with Red/Green signal On/off indicator for the controller |
| Top-up Keypad | 0-9 keypad, delete button and Enter button |
| Outputs | 4×LED light outputs, 2×USB output |
| Inputs | 1×PV module input |
| 1×PV module input | Overvoltage, reverse voltage and short circuit protection |
Stronpay Vending Software
Stronpay Vending Software is a Window-based vending management system. It consists of Stronpay management server(CMS) and Stronpay management Client(CMC).
CMC provides administrative operations, such as customer and meter registration, vending, report. It can be run on an independent device in form of standalone software. Multiple clients can be connected to a single management server(CMS). CMC also allows multiple operators and access to system which is configured by the administrator.
| Vending Software | STS standard encryption web-based vending software |
| Recharge Token Printer | Thermal Printer, Print TOKEN receipt |
| Handheld Vending Machine | Vending APP in Android system include TOKEN printer |
| Language | English/ French/ Arabic/ Portuguese |
Vending Process
1. Login vending system
2. Solar number and customer information registration
3. Price Setting
4. Open Account
5. Vending/Topping up solar home system
6. Get the Token and input Token with keypad
7. Recharging successfully
Business mode
There are two business mode : Rent to Own Mode and Service Mode.
1. Rent to Own Mode
Customers rent the solar home system with a deposit and pay PAYG fee daily or monthly . Then they will own the product after a period of time(one year or two year). This Mode is more common.
2. Service Mode
Customers no need to pay the deposit, but pay the PAYG fee daily or monthly as long as he want to use the solar home system.
