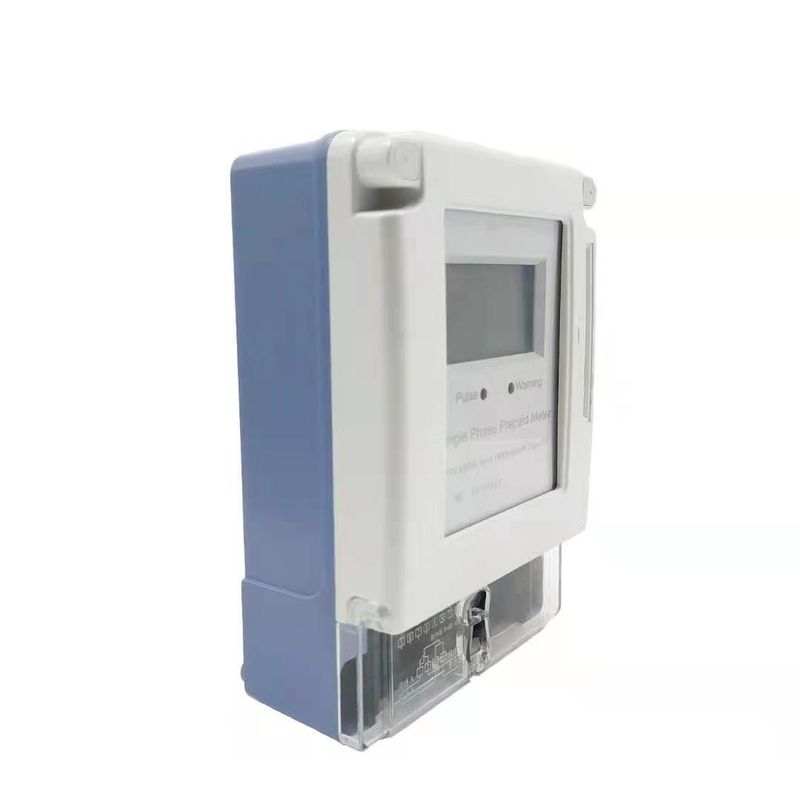

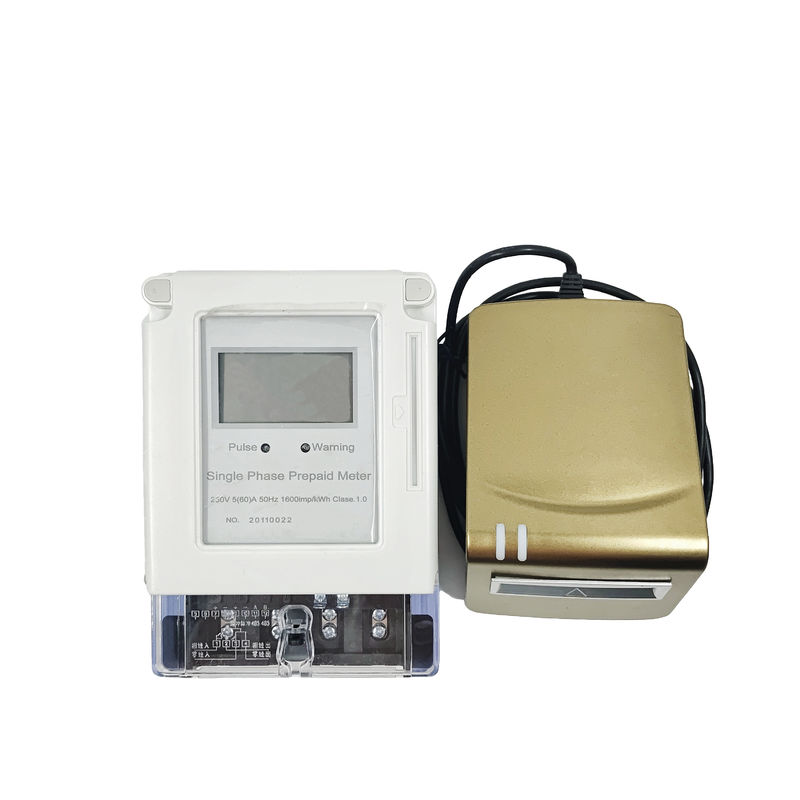

Smart IC Card automatically connection/disconnection Prepaid Single Phase Electricity Meter

Smart IC Card automatically connection/disconnection Prepaid Single Phase Electricity Meter

  • Smart IC Card automatically connection/disconnection Prepaid Single Phase Electricity Meter
  • Smart IC Card automatically connection/disconnection Prepaid Single Phase Electricity Meter
Smart IC Card automatically connection/disconnection Prepaid Single Phase Electricity Meter
Product Details:
Place of Origin: Hunan Province
Brand Name: Stron
Certification: STS
Model Number: STE18-C
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Can be negotiation
Packaging Details: Carton, 210*130*62mm
Delivery Time: 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs per Month
Contact Now
Detailed Product Description
Phase: Single Phase Certificate: STS
Type: Electricity Meter Payment: Prepaid
Input: IC Card Protection: IP54
Display: Liquid Crystal Function: Automatically Connection/disconnection

Smart IC Card automatically connection/disconnection Prepaid Single Phase Electricity Meter


STE18-C is an STS Standard compliant, IC Card type, automatically connection or disconnection smart prepaid electricity meter



Our IC CARD meter also has remote automatic connection and disconnection function.However, the automatic power off of our electricity meter after normal operation mainly has the following functions:
1. Pull the brake to alarm and power off
The purpose of pulling the switch alarm is mainly to remind the user to buy electricity in time. For example, the power value of pulling the switch alarm is set to 10 degrees. When the electricity meter shows that the user has purchased the remaining power of 10 degrees, the relay of the household will automatically cut off to remind the user to buy electricity in time, and the household number will flash.Pulling alarm power value can be set through the computer networking system, can also be set by the IC card sales management system.
When there is a switch alarm power off, the user should go to the electricity selling center as soon as possible to buy electricity and input electricity meter, otherwise, after the user used up the switch alarm power off value, the electricity meter will be power off with zero balance.
2.Power off if the balance is zero
When the electricity meter shows that the electricity purchased by the user is 0 degrees, the relay of the household will automatically cut off, reminding the user that he must buy electricity. At this time, the household number flashes and the electricity consumption is displayed as -0000.0.At this time the user should as soon as possible to the sale of electricity center to buy electricity input meter.
3.Malignant load power
When the user uses the "malignant load" such as electric furnace, electric cup, electric heater and heating fast, the electricity meter can automatically recognize and power off, and automatically power on when such load is removed.(This function is suitable for apartment electricity management, must be customized)
4.Overload power
The electricity meter can set the load current of the user. When the user's electricity current exceeds the limit current, the electricity meter will automatically cut off the power supply circuit and automatically power on after 5 minutes. If the user's electricity current still exceeds the limit current, the electricity meter will be cut off again.
5, Timing control power
The electricity meter can control the time of the user's electricity consumption. The electricity meter can set the time of automatic power off and power on through the IC card selling system or the computer networking system, which is convenient for the management of the user's electricity consumption.



Basic Function:

✽ Meter Recharge By IC Card
✽ Active energy measurement
✽ MD(maximum demand measurement
✽ Auto scroll mode display
✽ Build-in relay control
✽ Event log



Electrical Parameters

Nominal Voltage 220V/230V/240V
Working Voltage Range 70%~120%Un
Nominal Frequency 50-60Hz
Basic Current (Ib) 5A
Maximum Current (Imax) 80A
Starting Current (Ist) 20mA
Active Energy Constant 1000imp/kWh
Measurement Accuracy Class 1.0
Power Consumption in Voltage Circuit <2W <8VA
Power Consumption in Current Circuit <1VA
Operation Temperature Range -25℃-70℃
Storage Temperature Range -40℃-85℃



Electric Magnetic Compatibility

AC Insulation Strength 4kV at 50Hz during 1min
Impulse voltage 1.2/50 us mains connections 8kV

Electrostatic Discharges



Contact discharge 8kV
Air discharge 16kV
Electromagnetic RF Field 27MHz-500MHz 10V/m
100KHz-1GHz 30V/m
Fast transient burst test 4kV
Protection Class II



Meter Dimensions

Smart IC Card automatically connection/disconnection Prepaid Single Phase Electricity Meter 0
