1" Prepaid Water Meter

1" Prepaid Water Meter

  • 1" Prepaid Water Meter
  • 1" Prepaid Water Meter
1" Prepaid Water Meter
Product Details:
Place of Origin: Hunan
Brand Name: Stron
Certification: STS
Model Number: STW36-C
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: carton 255*145*125mm
Delivery Time: 14 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000pcs per Month
Contact Now
Detailed Product Description
Base Meter Material: Brass Type: Split
Electroic Part Case: Plastic Class: C
Q3/Q1: 160 Pay As You Go: Yes
Billing: Online Vending System
High Light:

1" Prepaid Water Meter


R160 digital water flow meter


1" digital water flow meter

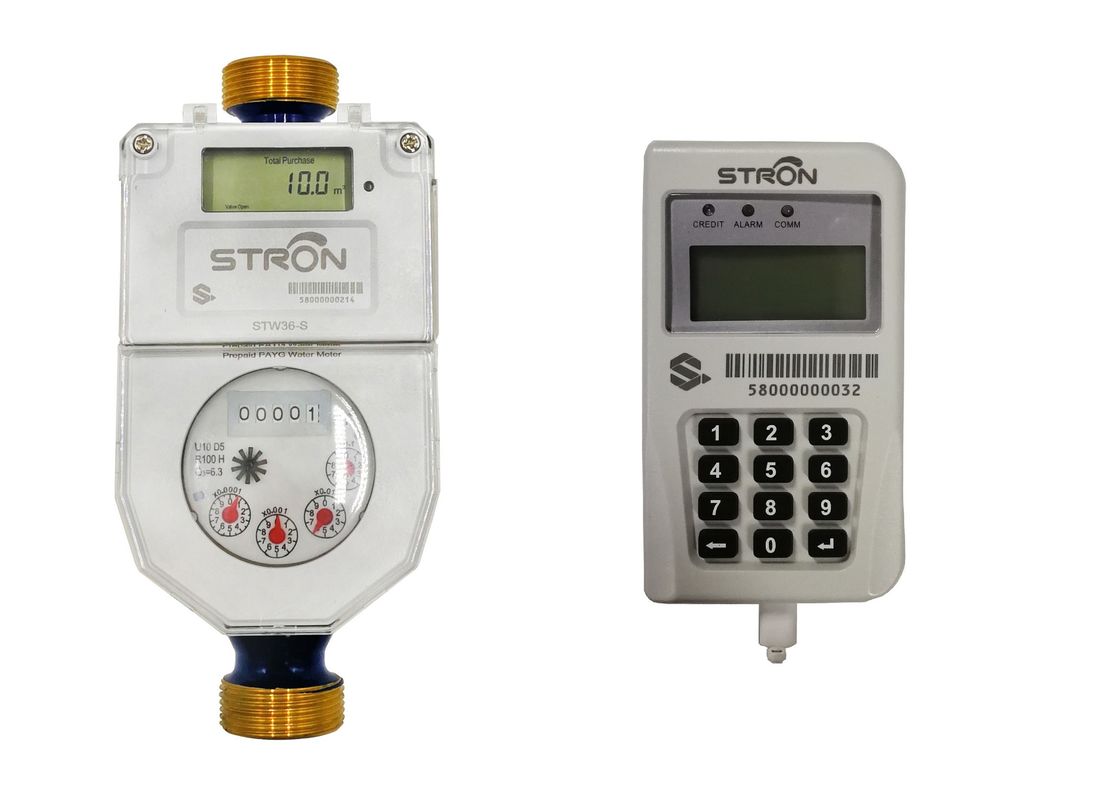

STS Prepaid Water Meter Multijet Class C Split Type with Keypad CIU


Prepaid STS standard, input 20 token recharge


The low credit alarm value can be set by entering the corresponding token


Prepayment and post payment switching meters can be switched to prepayment mode or post payment mode


Check valves prevent backflow inside the check valve


The tamper proof instrument will automatically close the valve and open the cover after detecting the magnetic field


Step price step price can be set by inputting corresponding token


Overdraft collection non income water (overdraft) can be collected daily or monthly


On request, the meter can communicate with AMI system via Lora RF or Bluetooth 4.0


Information query users can query credit balance, total purchase amount, total credit amount and other data by entering short code


Size DN15mm 1/2” DN20mm 3/4” DN25mm 1”
Overload flow rate Q4 3.125 5.0 7.875
Permanent l flow rate Q3 2.5 4.0 6.3
Transitional flow rate Q2 0.025 0.040 0.063
Minimum flow rate Q1 0.0156 0.025 0.0393
Ratio ”R” Q3/Q1 160 160 160
Maximum working pressure 16Bar 16Bar 16Bar
Maximum pressure loss 0.6Bar 0.6Bar 0.6Bar
Maximum reading 99999 99999 99999
Max temperature 50℃ 50℃ 50℃
Error Q1≦Q≦Q2 5% 5% 5%
Q2≦Q≦Q4 2% 2% 2%



Meter Dimensions


Size DN15 1/2” DN20 3/4” DN25 1”
Length (L) 165/190 190 225/260
Width (W) 99 99 103
Height (H) 104 106 114



G3/4B G1B G1-1/4B
