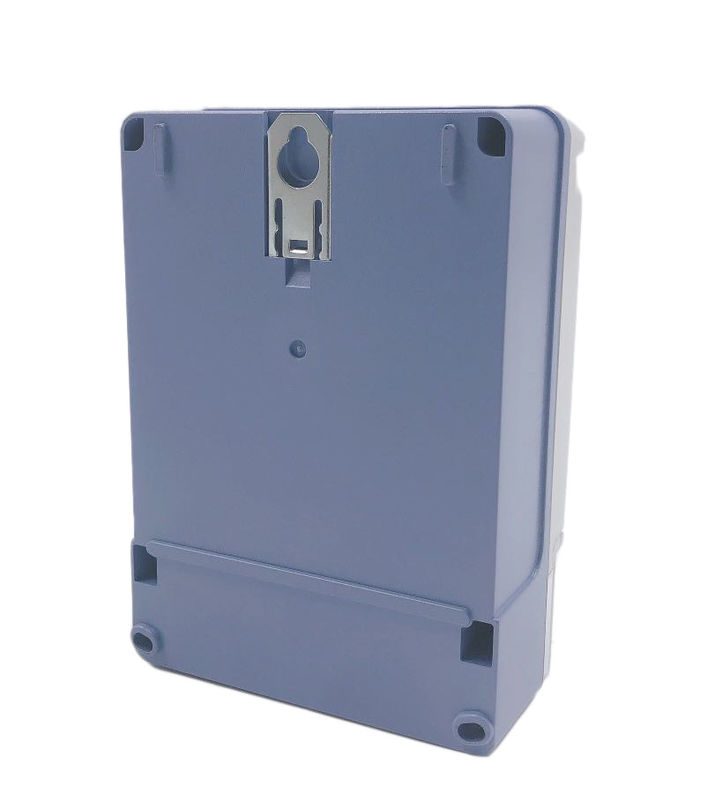

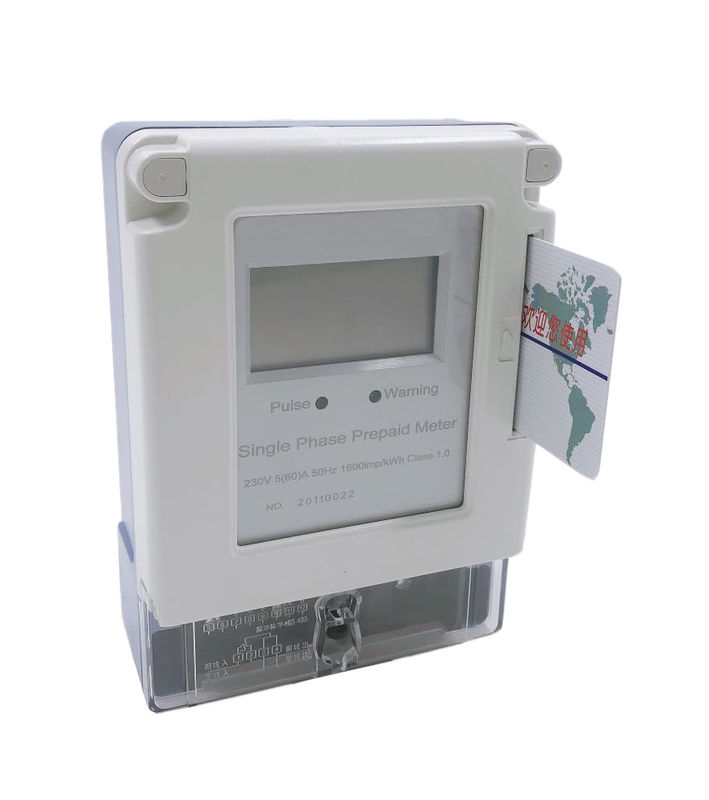

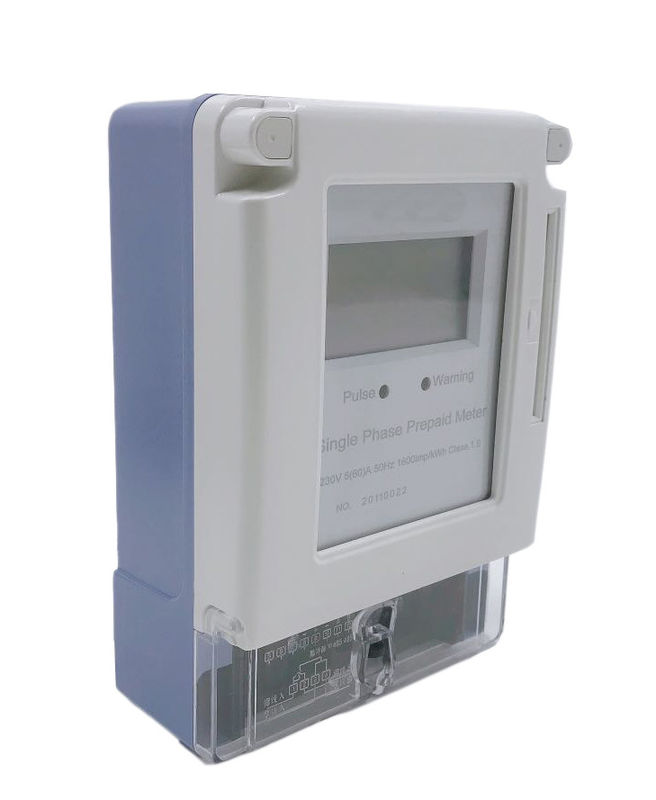

5A 4kV Smart Prepaid Electricity Meter With RFID Card Reader

5A 4kV Smart Prepaid Electricity Meter With RFID Card Reader

  • 5A 4kV Smart Prepaid Electricity Meter With RFID Card Reader
  • 5A 4kV Smart Prepaid Electricity Meter With RFID Card Reader
  • 5A 4kV Smart Prepaid Electricity Meter With RFID Card Reader
5A 4kV Smart Prepaid Electricity Meter With RFID Card Reader
Product Details:
Place of Origin: China
Brand Name: Stron
Certification: STS Certificated
Model Number: STE18-C
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Carton
Delivery Time: 30-45days
Payment Terms: T/T, Western Union
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Protocal: STS Standard Phase: Single Phase
Mode: Prepaid Type: IC Card Type
Accuracy: Class 1 Display: Digital
Waterproof: IP54 Frequency: 50-60HZ
Basic Current (Ib): 5A Working Temperature: -25~70℃
Maximum Current (Imax): 80A Application:: Counting The Electricity Consumption
High Light:

4kV smart prepaid electricity meter


5A smart prepaid electricity meter


4kV electric card meter

STS Standard Keypad Type Prepaid IC Card Digital Single Phase Energy With RFID Card Reader

This single phase prepayment meter also called quantitative meter, IC card prepaid meter, in addition the ordinary energy meter measurement functions, especially the user need to buy electricity first, use second, after run out of power if the user does not continue to buy electricity.the meter will automatically cut off, this meter is best way to solve payment collection problem, it also has function of anti-tampering, over load protection, management of energy consumption and user information. This type of meter is widely used in office building, shopping mall, residential, and public facility etc.


Main Features

1. One meter has one card, fake card is not available. Repeatable top-up, Effectively reduce waste.
2. LCD 6+2 digits display, maximum 999999.99 kWh.
3.Automatic power off when overload, also can prevent the error overload when the load restart.
4. Once the prepaid meter available energy is reached zero, meter relay will automatically cut the power off, unless the station has set overdraw limit ( Credit ).
5. The meter can set alarming kWh quantity, indicated by LED flash and secondary notice user the energy is Low, it’s in order to remind user to recharge power on time, Avoid unnecessary loss.
6. The forward and opposite direction active power can be measured.
7. data can be preserved for more than 10 years without power supply.


Electrical Parameters
Nominal Voltage 230V
Working Voltage Range 70%~120%Un
Nominal Frequency 50-60Hz
Basic Current (Ib) 5A
Maximum Current (Imax) 80A
Starting Current (Ist) 20mA
Active Energy Constant 1000imp/kWh
Measurement Accuracy Class 1.0
Power Consumption in Voltage Circuit <2W <8VA
Power Consumption in Current Circuit <1VA
Operation Temperature Range -25℃-70℃
Storage Temperature Range -40℃-85℃
Electro Magnetic Compatibility
AC Insulation Strength 4kV at 50Hz during 1min
Impulse voltage 1.2/50 us mains connections 8kV

Electrostatic Discharges


Contact discharge 8kV
Air discharge 16kV
Electromagnetic RF Field 27MHz-500MHz 10V/m
100KHz-1GHz 30V/m
Fast transient burst test 4kV
Mechanical requirements
Meter shell Water proof protection Rate IP54
Protection Class II


Meter Dimension


5A 4kV Smart Prepaid Electricity Meter With RFID Card Reader 0



Function Details
Prepayment STS Standard, recharge by input 20digits TOKEN
Low credit alarm Alarm value can be set by inputting corresponding TOKEN
Prepaid and post-paid switch Meter can be switch to prepaid mode or post-paid mode
Load control function Meter can be programmed for load control threshold, If the current power is more than threshold. The meter will cut off user load.
Event recording Meter can record the tamper event, open cover event, purchase event and TOKENS.
Self-testing Meter has a self-test function, it can test LCD and relay etc. and report the results directly
Anti-tamper Meter will automatically close the valve after detection of magnetic field and open cover event
Overdraft Collection Electricity Overdraft can be collected day by day or month by month
Communication The meter is available with AMI system through LORA RF or Bluetooth 4.0 on request
Information Inquiry Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code


AMI function
 ➪ Recharge remotely via DCU and LORA-RF or PLC module

AMI System consist of Smart Meters, Communication systems and equipment, Meter Database Management System.

It can realize access, configuration, and control of various remote data; supports various electricity prices, analysis of electricity usage to lead self-conscious energy-saving, load control of remote user, automatic response; malfunction frame testing and remote connect/disconnect control, optimization of load forecast, and power quality, etc.

How to recharge by AMI System?
This IC card type prepaid single phase not only can use IC cared to buy energy, it also can use AMI system to recharge remotely with LORA-RF module.
5A 4kV Smart Prepaid Electricity Meter With RFID Card Reader 1
