Name: IP54 Smart Prepaid Electricity Meter
Brand: Hunan Stron Smart Co., Ltd
SKU: STE38
Price: 463.90 USD
Availability: InStock

Home > products > Smart Prepaid Electricity Meter >

IP54 Smart Prepaid Electricity Meter

anti tamper 3 phase kilowatt meter

IP54 3 phase kilowatt meter

Place of Origin:

Hunan

Brand Name:

Stron

Certification:

STS

Model Number:

STE38

Request A Quote

Product Details

Material:

Plastic

Phase:

Three Phase

Payment:

Prepaid

Brand:

Stron

Input:

CIU

Display:

LCD

IP Rating:

IP54

Anti-tamper:

Yes

Terminal Cover:

Transparent

CIU Material:

Plastic

Highlight:

IP54 Smart Prepaid Electricity Meter

anti tamper 3 phase kilowatt meter

IP54 3 phase kilowatt meter

Payment & Shipping Terms

Minimum Order Quantity

100

Price

Negotiable

Delivery Time

14 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

5000 set per month

STE18-D Dinrail Mount Single Phase Split Electricity Meter with CIU

Get Best Price

STE38-S Stron STS Standard Prepaid Split Three Phase Electricity Measurement Meter with CIU Hotsale

Get Best Price

Smart IC Card Auto Scroll Mode Display Single Phase Prepaid Electricity Meter

Get Best Price

Stron STS Standard Prepaid Split Three Phase Electricity Meter with CIU

Get Best Price

86-0731-22421066

Contact Now

Product Description

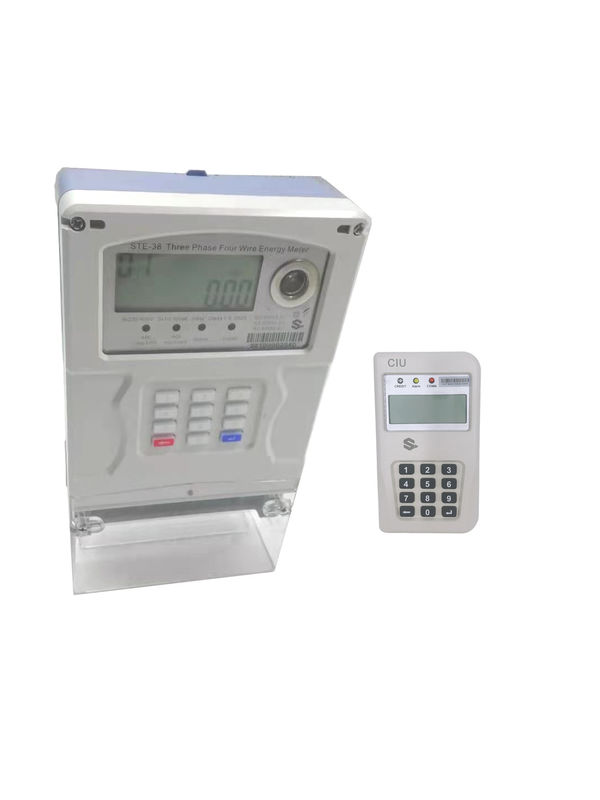

Stron Smart Split Keypad Prepaid Three Phase Electricity Meter is composed of a prepaid keypad three phase electricity meter and a separate customer interface unit(CIU) with RF, PLC wireless communication module or two wires.

The CIU has the same function as the keyboard on the meter itself, users can 20digit TOKEN for loading or information control Enter. Miscellaneous Information can be switched by entering different combinations of numbers user. User measurement data such as daily use, monthly use, current current and voltage, balance and the last five tokens entered easily retrieve.

Nominal Voltage 3×230V/400V

Working Voltage Range 70%~120%Un

Nominal Frequency 50-60Hz

Basic Current (Ib) 10A

Maximum Current (Imax) 100A

Starting Current (Ist) 30mA

Active Energy Constant 400imp/kWh

Active Energy Accuracy Class 1.0

Reactive Energy Accuracy Class 2.0

Power Consumption in Voltage Circuit <2W <8VA

Power Consumption in Current Circuit <1VA

Operation Temperature Range -25℃-70℃

Storage Temperature Range -40℃-85℃

Electric Magnetic Compatibility

AC Insulation Strength		4kV at 50Hz during 1min
Impulse voltage 1.2/50 us mains connections		8kV
Electrostatic Discharges	Contact discharge	8kV
	Air discharge	16kV
Electromagnetic RF Field	27MHz-500MHz	10V/m
	100KHz-1GHz	30V/m
Fast transient burst test		4kV
Protection		Class II
